FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2007
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Radiator
>>
Service and Repair
Radiator: Service and Repair
AR20.20-P-3865TI Removing/installing radiator

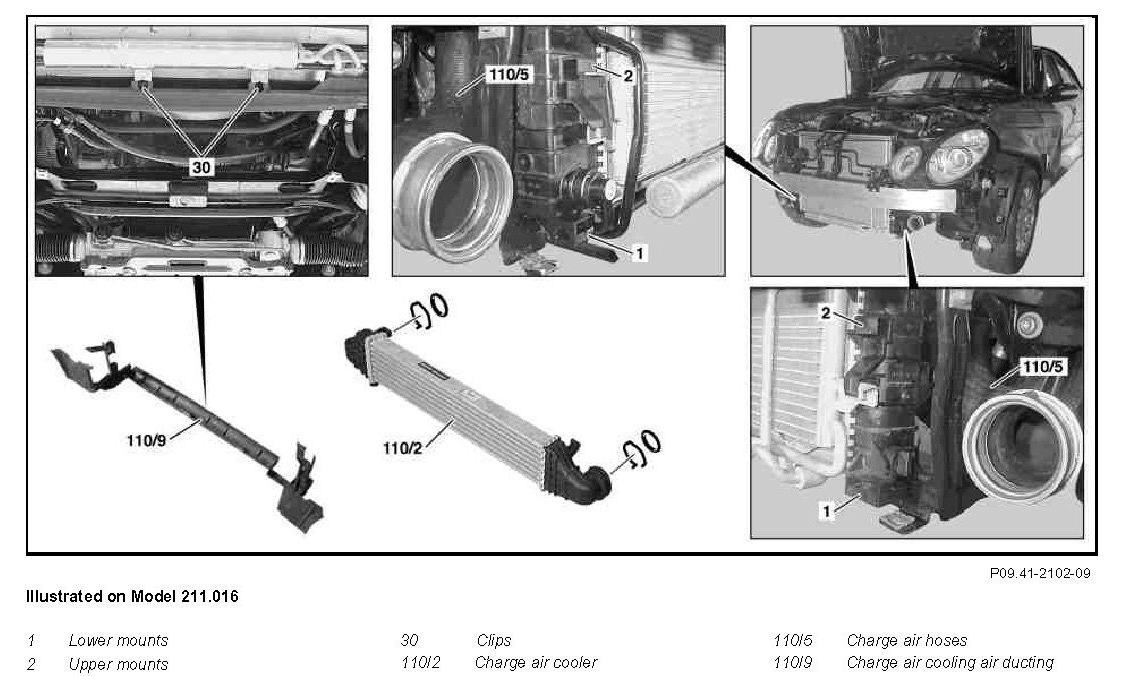

Component Identification:

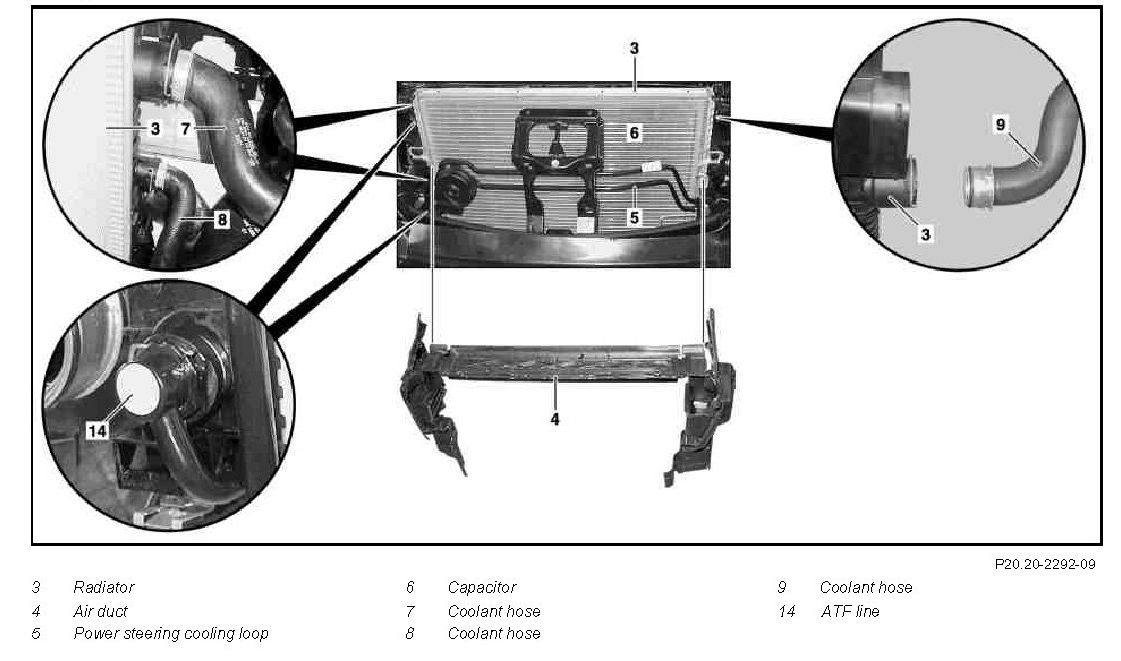

Component Identification:

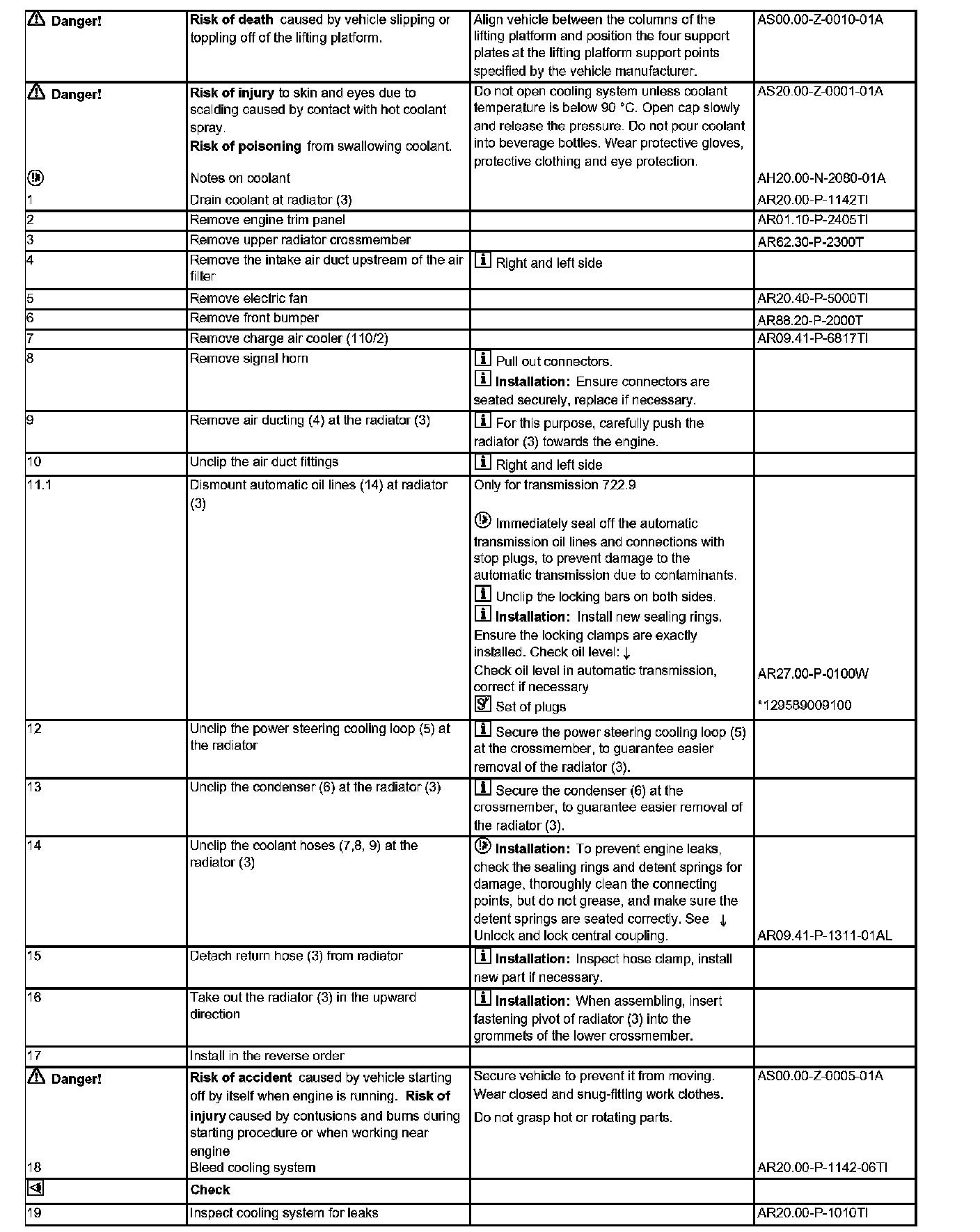

Remove/install:
Remove/install Steps 1-19:

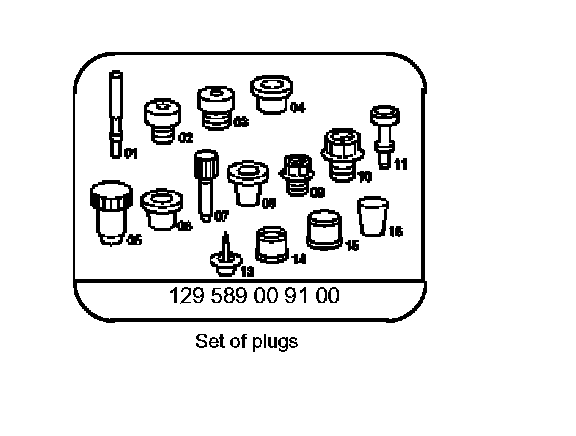

Special Tools:
