Radiator Cooling Fan: Service and Repair



AR20.40-P-5000TI Remove/install electric fan

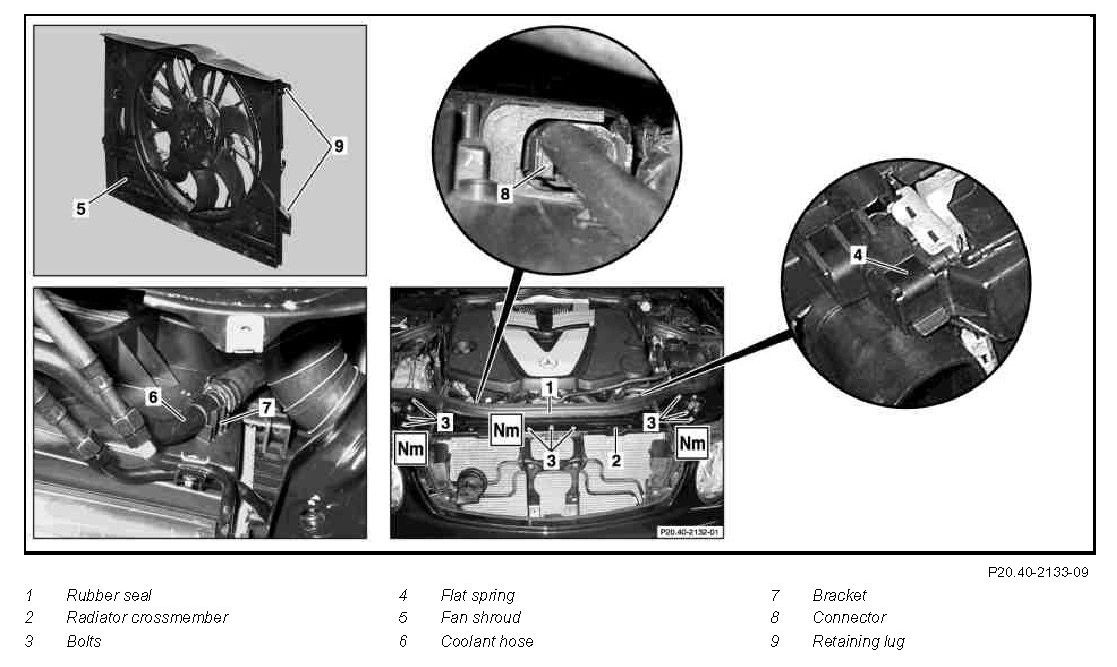

Component Identification:

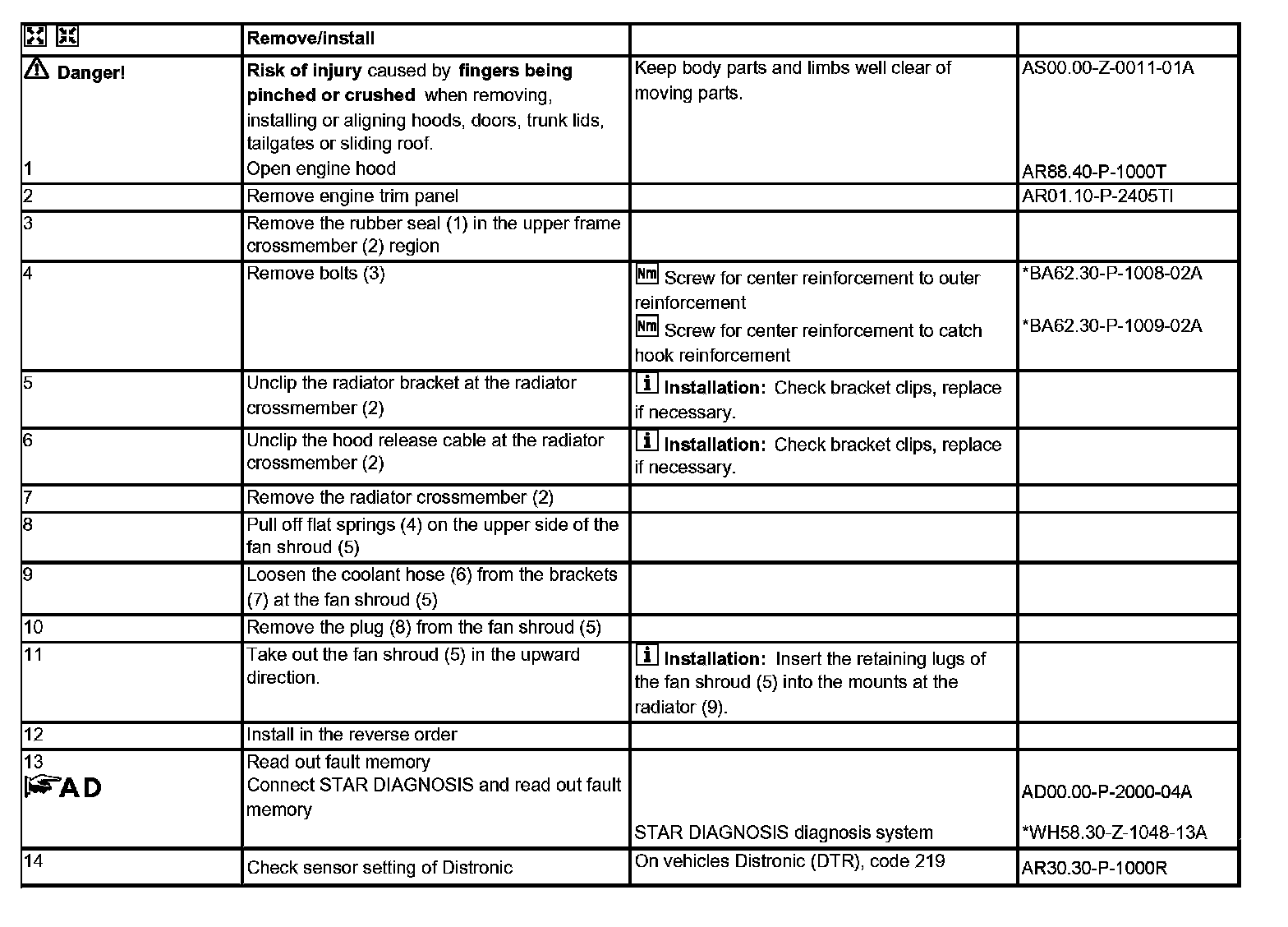

Remove/install Steps 1-14:

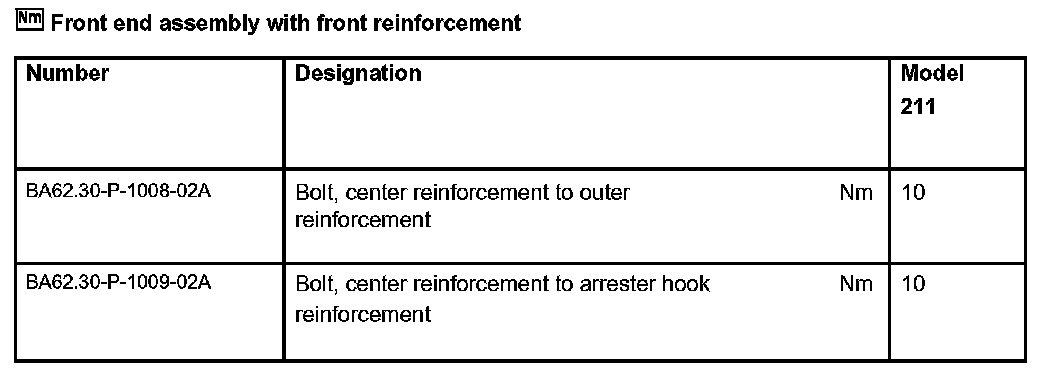

Front end assembly with front reinforcement:

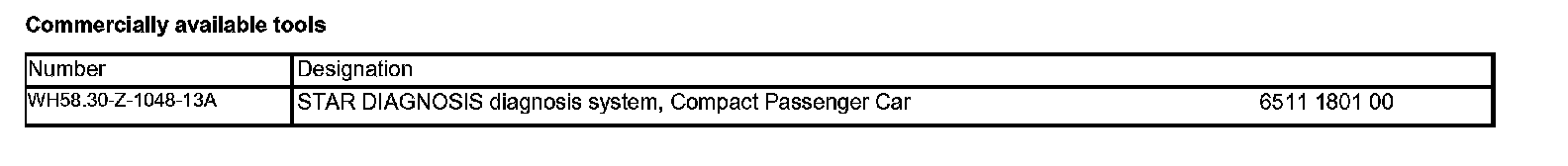

Commercially available tools:
