Radiator Cap: Testing and Inspection
AR20.30-P-4300TI Test
cooling system
cap

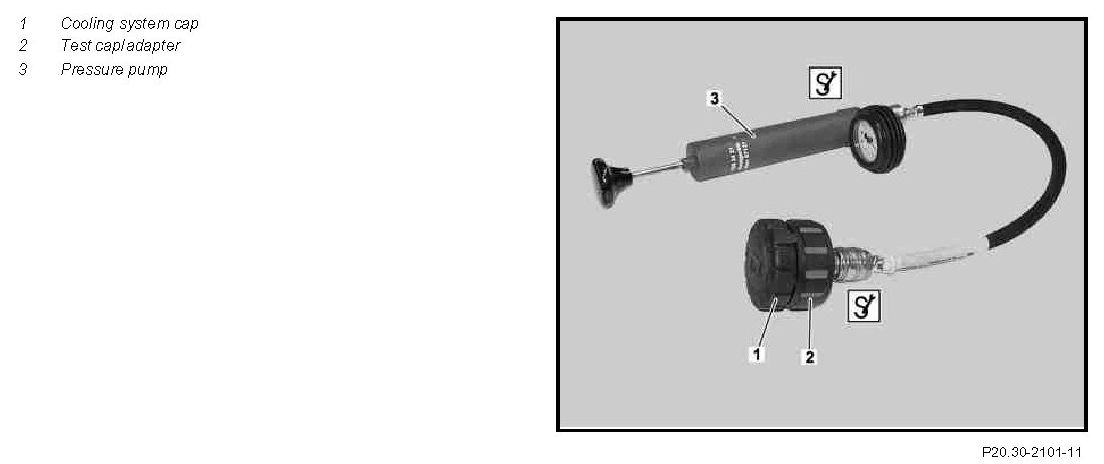

Component Identification:

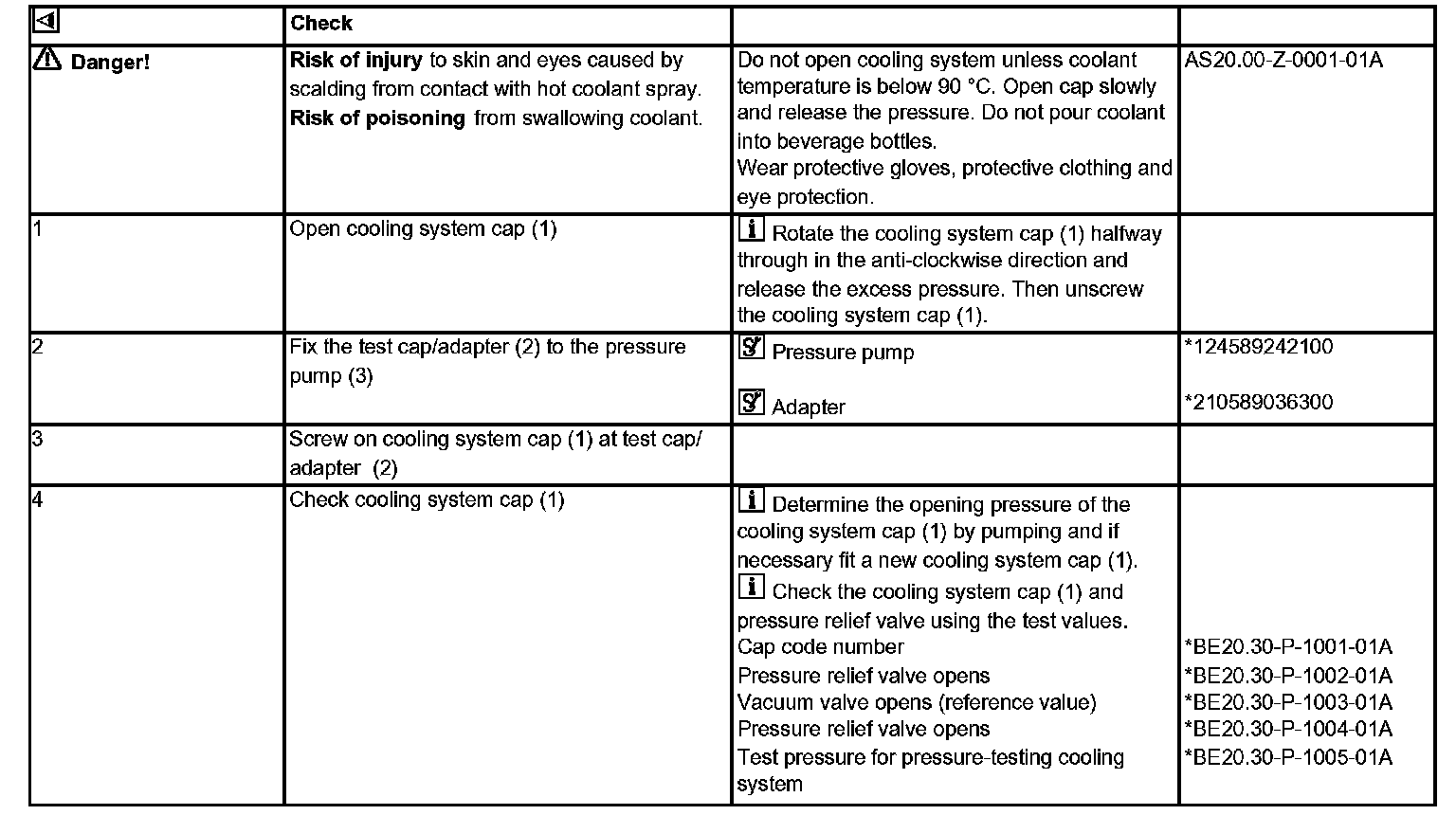

Steps 1-4:

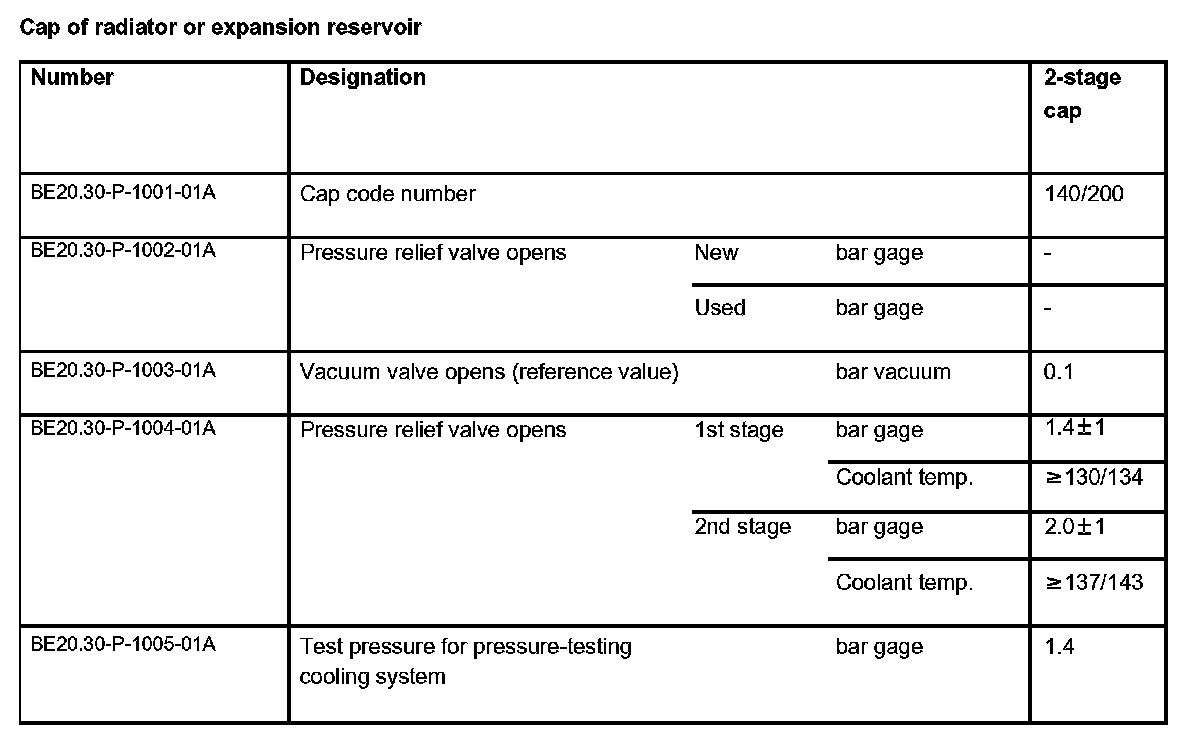

Cap of radiator or expansion reservoir:

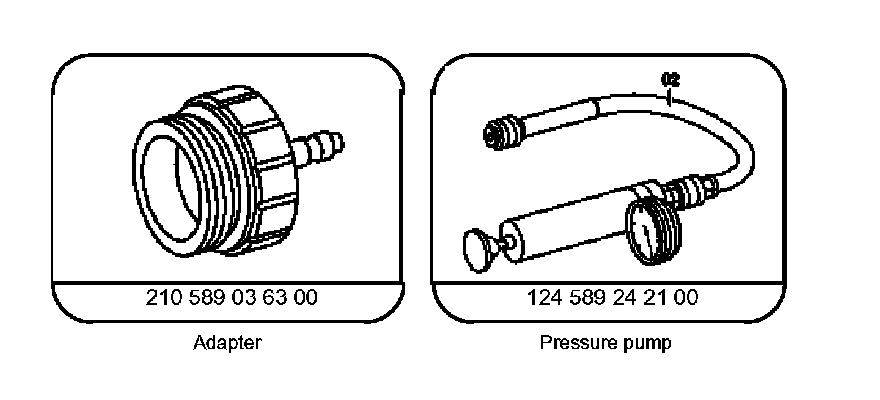

Special Tools:
