AH20.00-P-1141-01V Notes on Coolant Level

AH20.00-P-1141-01V Notes on coolant level

Component Identification:

Model 171 with engine 271, 272

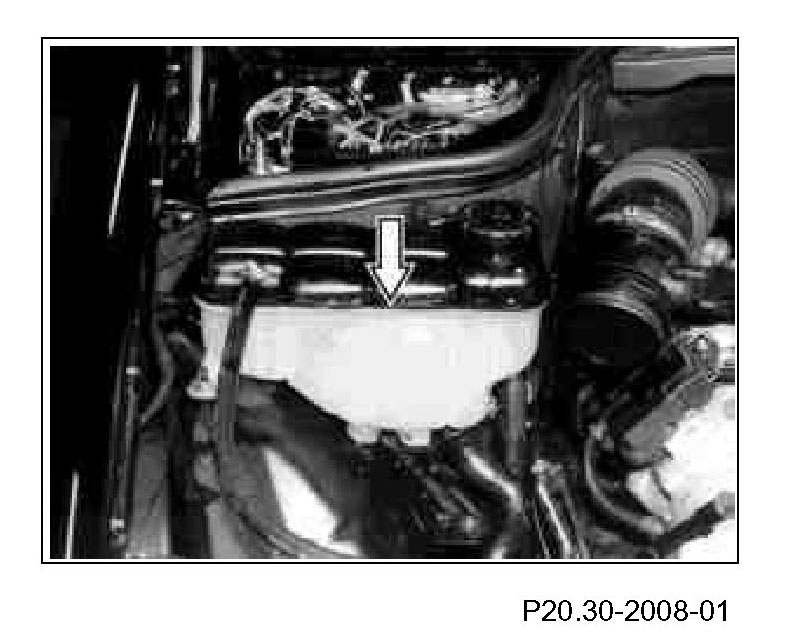

When the engine is cold, the engine coolant level must reach up to the marking "Min" on the coolant expansion reservoir (arrow).

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 220 with engine 112

Model 215, 220 with engine 113, 137

Model 215, 220 with engine 275, main circuit

Model 461, 463 with engine 612

Model 463 with engine 112, 113, 273, 628, 642

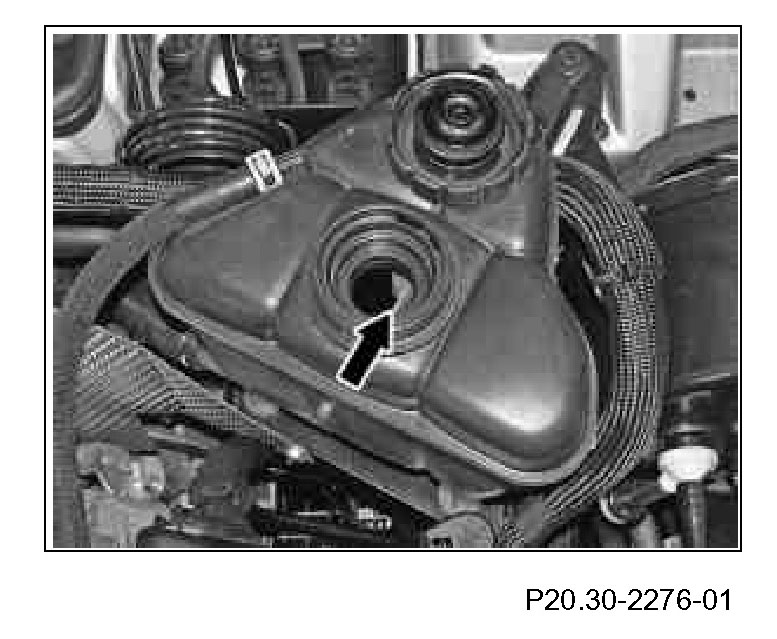

When engine is cold, the engine coolant level must reach up to the marking (arrow) on the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 461 with engine 642

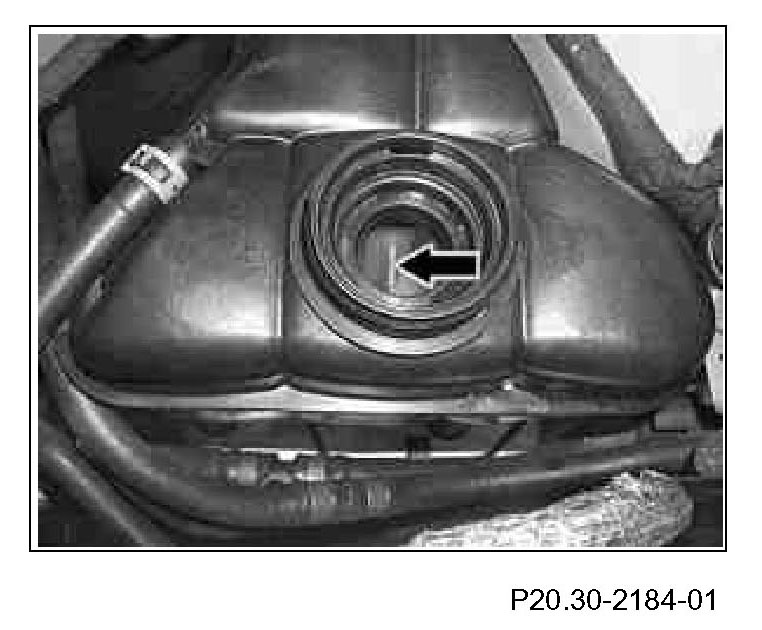

When the engine is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir.

When the coolant is warm, about 1 cm above the marking (arrow).

Component Identification:

Model 210 with engine 112, 113

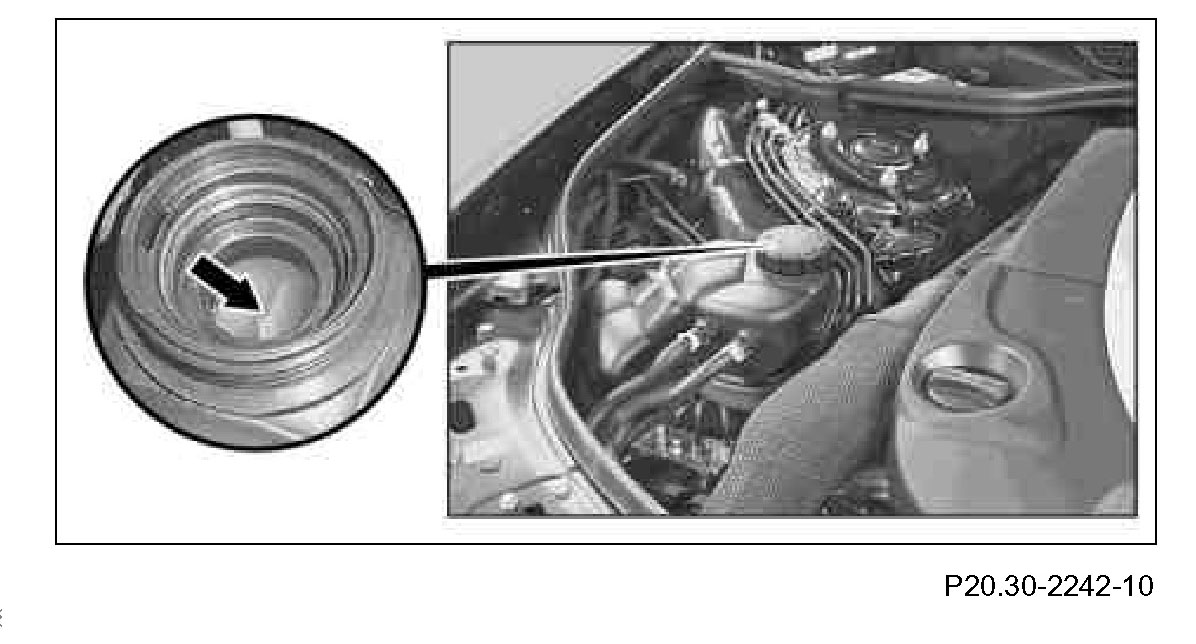

When engine is cold, the engine coolant level must reach up to the marking (arrow) on the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 202, 208 with engine 112, 113

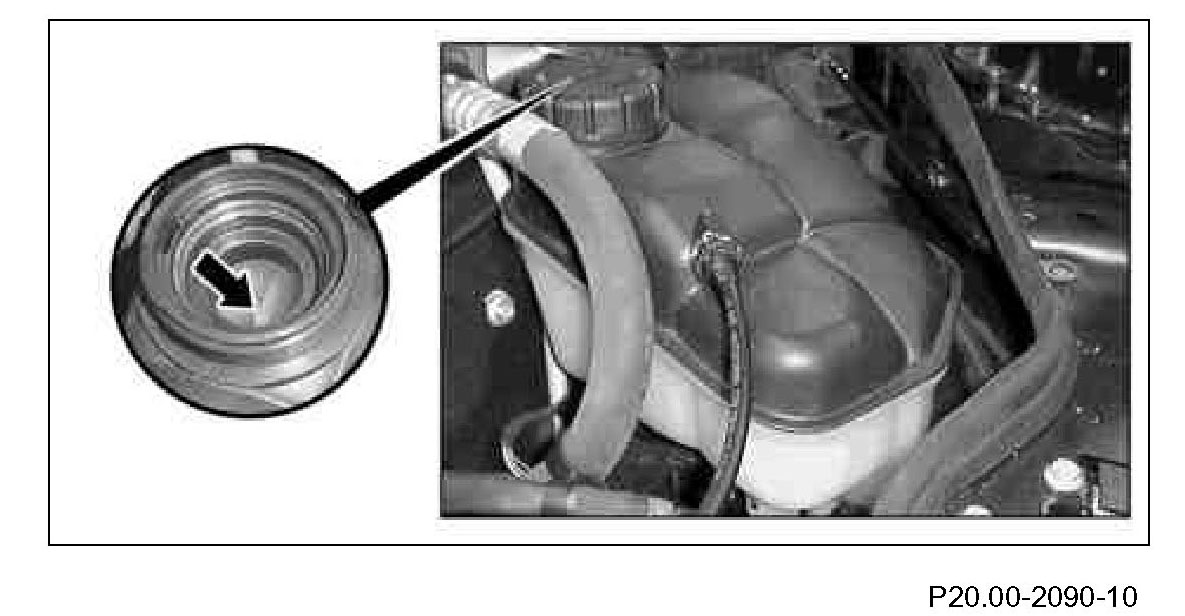

When engine is cold, the engine coolant level must reach up to the marking (arrow) on the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 129 with engine 112, 113

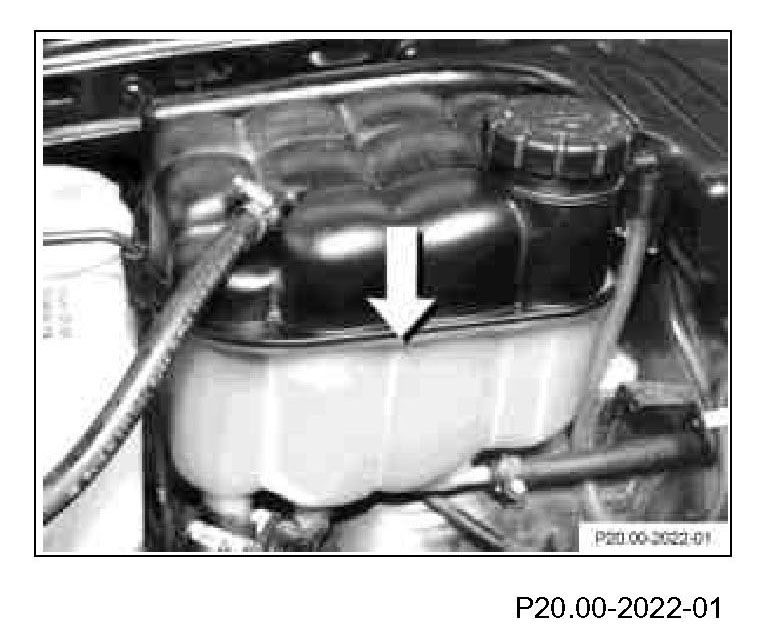

When engine is cold, the engine coolant level must reach up to the marking (arrow) on the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 230 with engine 112, 113, 168, 272, 273

Model 230 with engine 275, main circuit

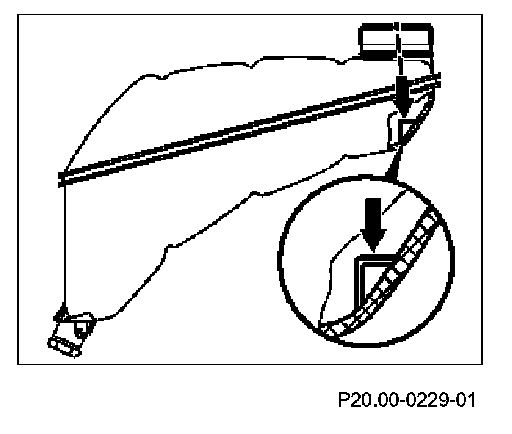

When engine is cold, the engine coolant level must reach up to the marking (arrow) on the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 211 with engine 112, 113, 156, 271, 272, 273 model 219 with engine 113, 156, 272, 273
When the engine is cold, the engine coolant level must reach up to the marking (arrow) in the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 216 with engine 168, 273

Model 221 with engine 168, 272, 273, 629, 642

Model 216, 221 with engine 275, main circuit
When the engine is cold, the engine coolant level must reach up to the marking (arrow) in the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 240 with engine 285, Main circuit
When the engine is cold, the engine coolant level must reach up to the marking (arrow) in the coolant expansion reservoir.

When coolant is warm: approx. 1 cm above this scribe mark.

Component Identification:

Model 215, 216, 220, 221, 230 with engine 275, low temperature circuit

Model 240 with engine 285, low temperature circuit

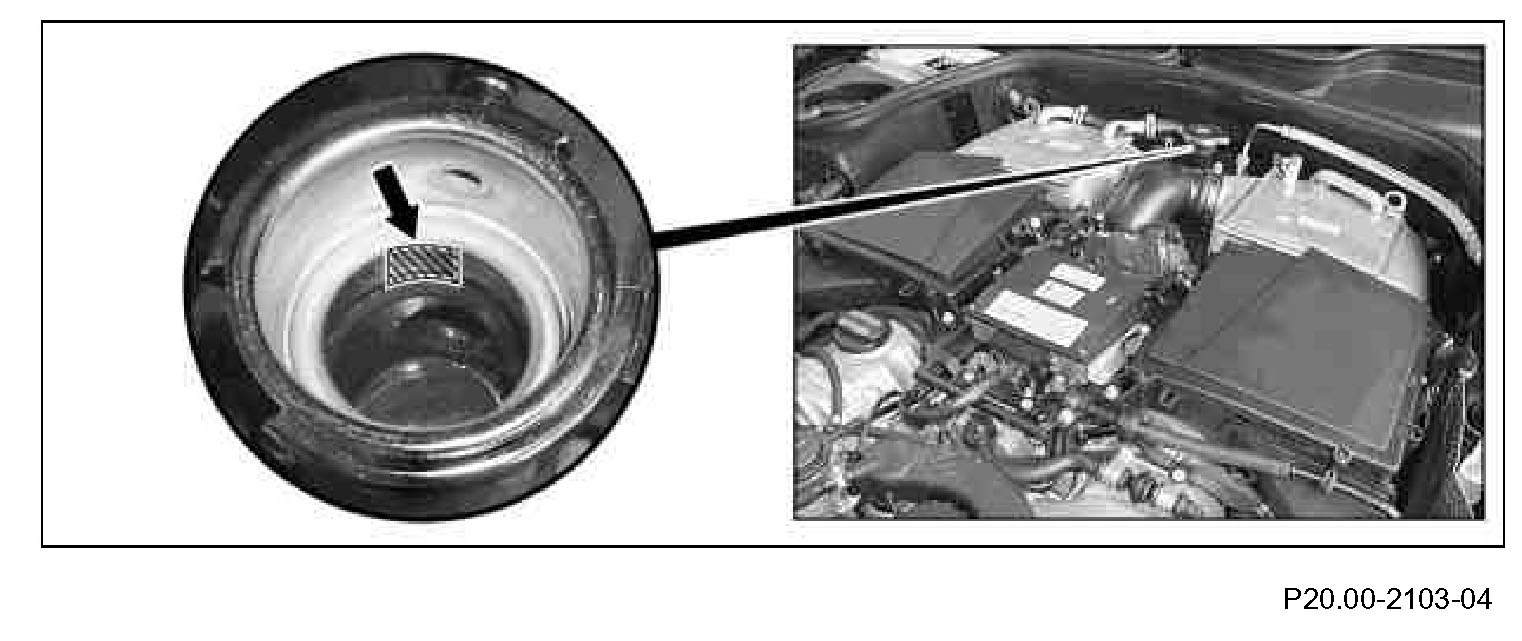

The engine coolant level must be placed, when coolant is warm or cold, in the crosshatched illustrated area of filler neck.
