Power Distribution Module

Wiring Diagram Of Control Module Battery PE54.10-U-2102DA
- control module N82 (up to 31.5.06)
- battery sensor B95 (as of 1.6.06)

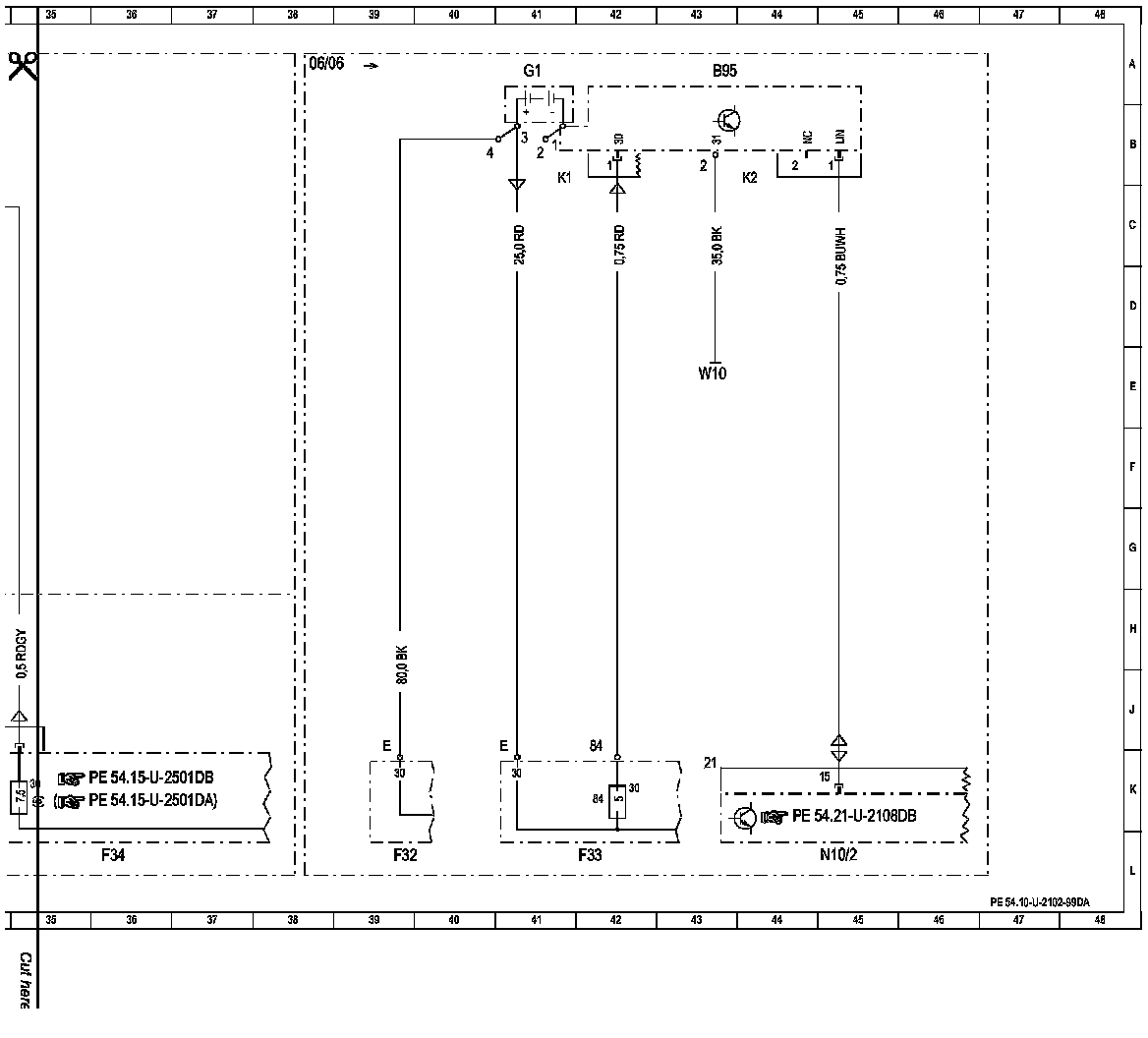

Wiring Diagram (Part 1):

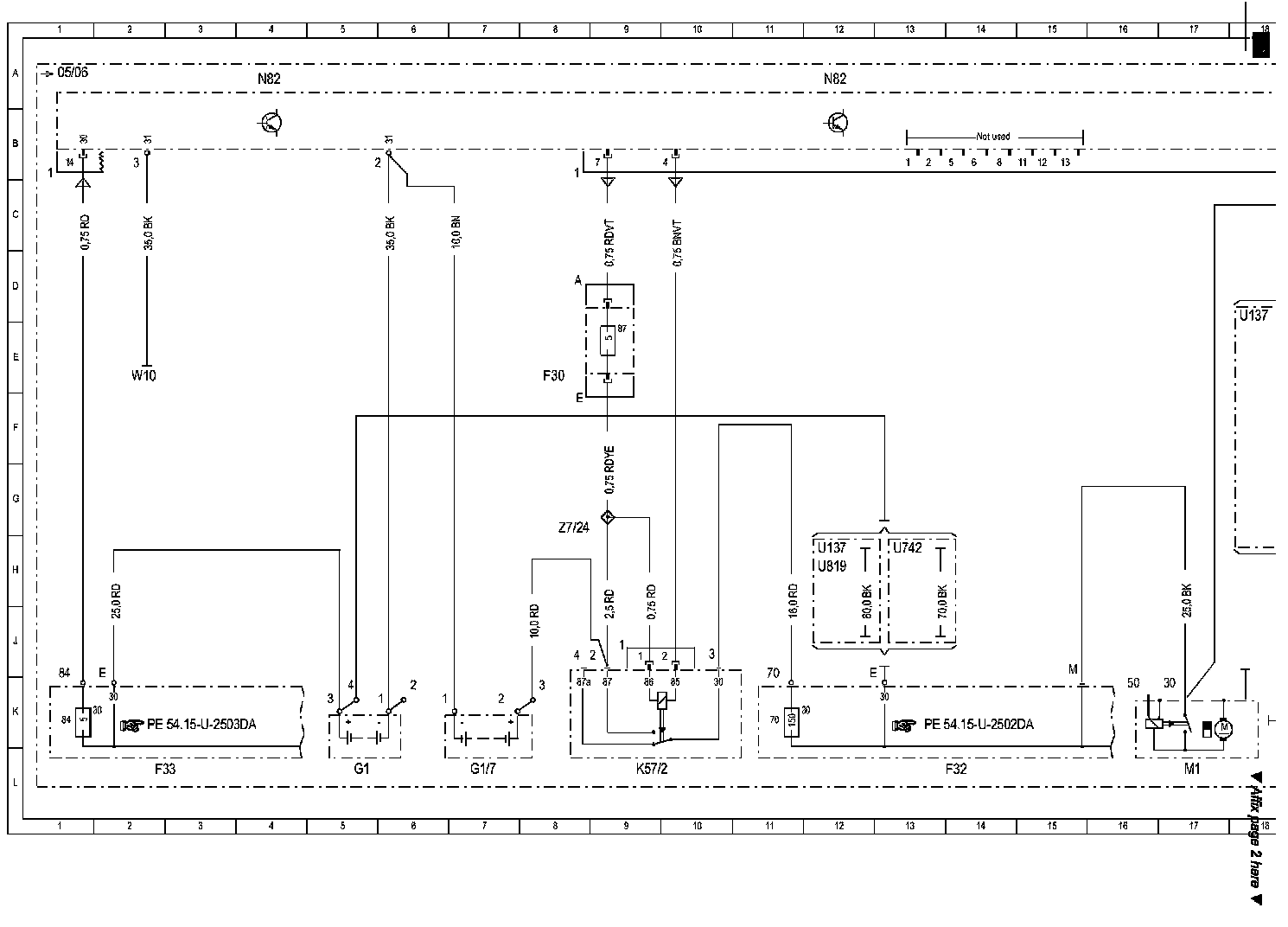

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

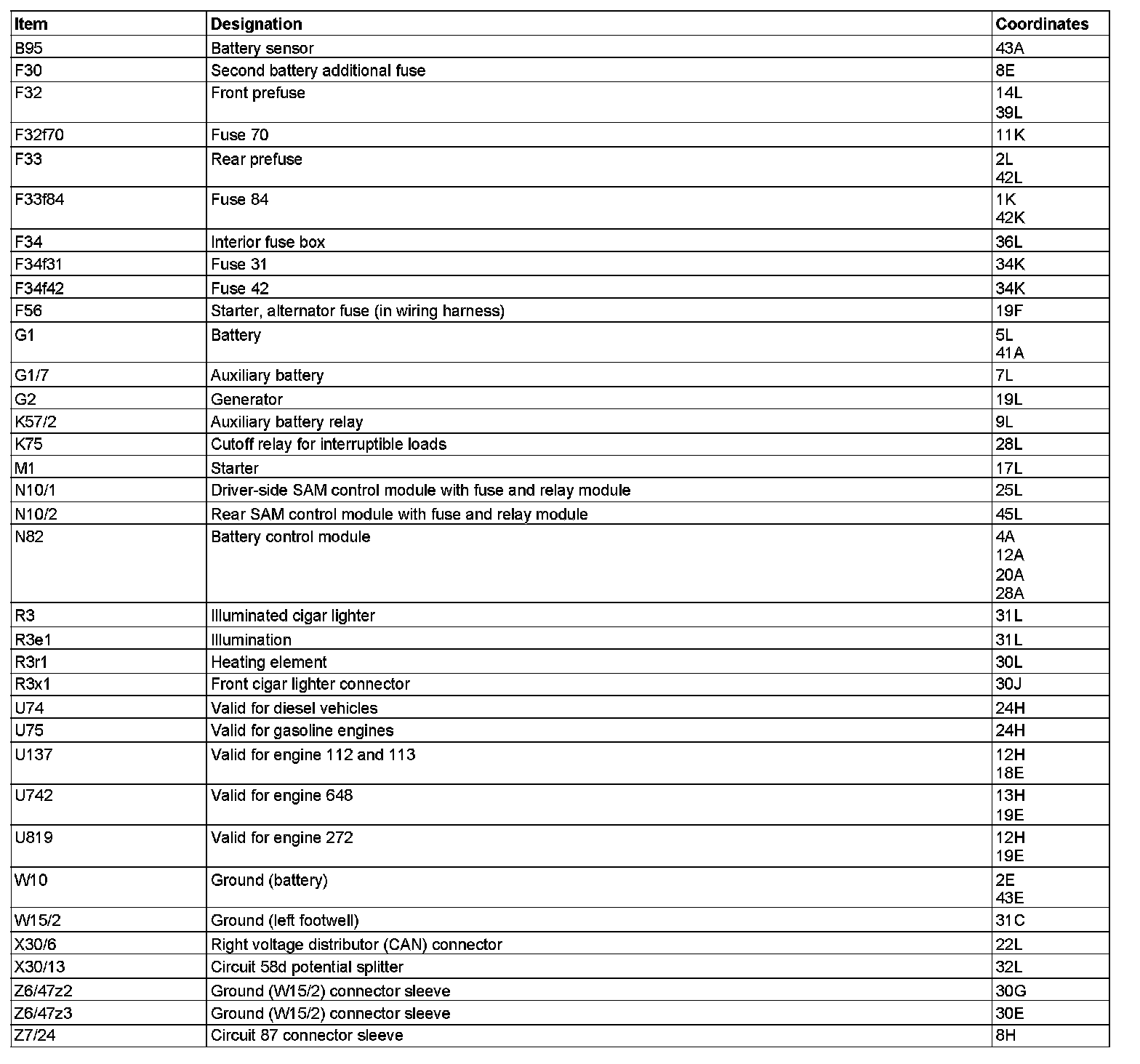

Component Description/Coordinates, B95 To Z724:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
