Wiring Diagram of MOST Bus PE82.00-U-2710DA

Wiring Diagram Of MOST Bus PE82.00-U-2710DA

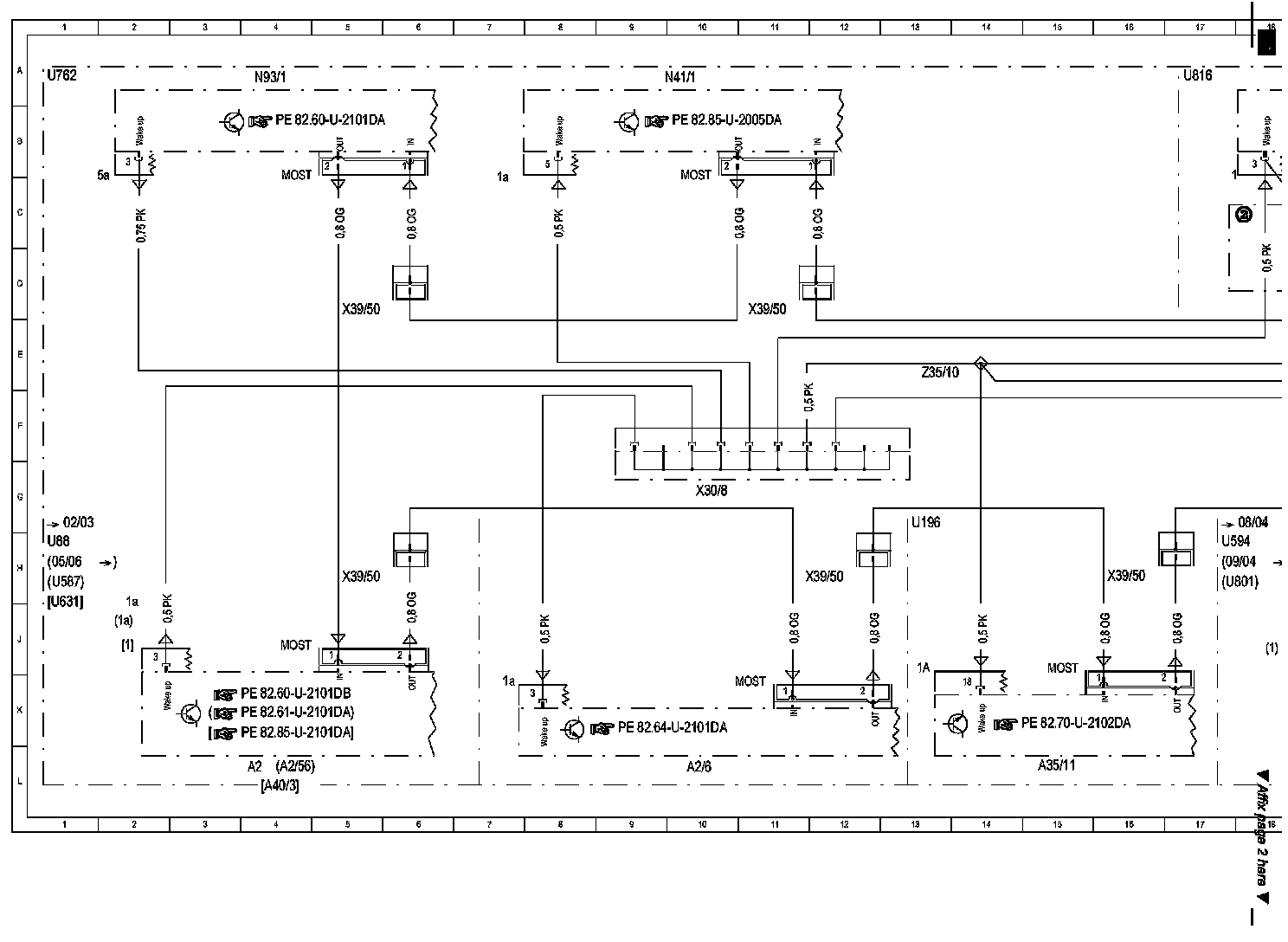

Wiring Diagram (Part 1):

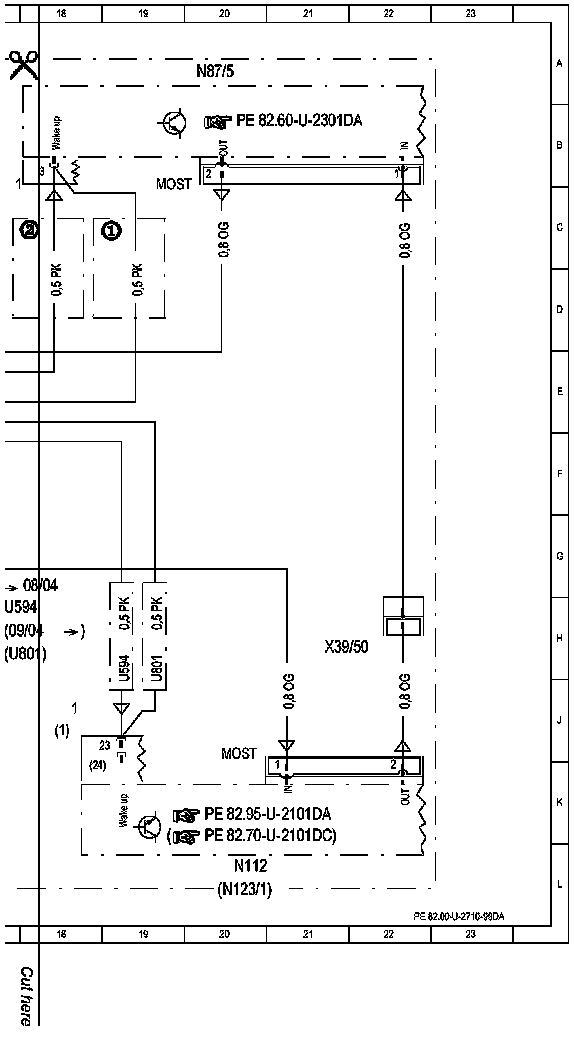

Wiring Diagram (Part 2):

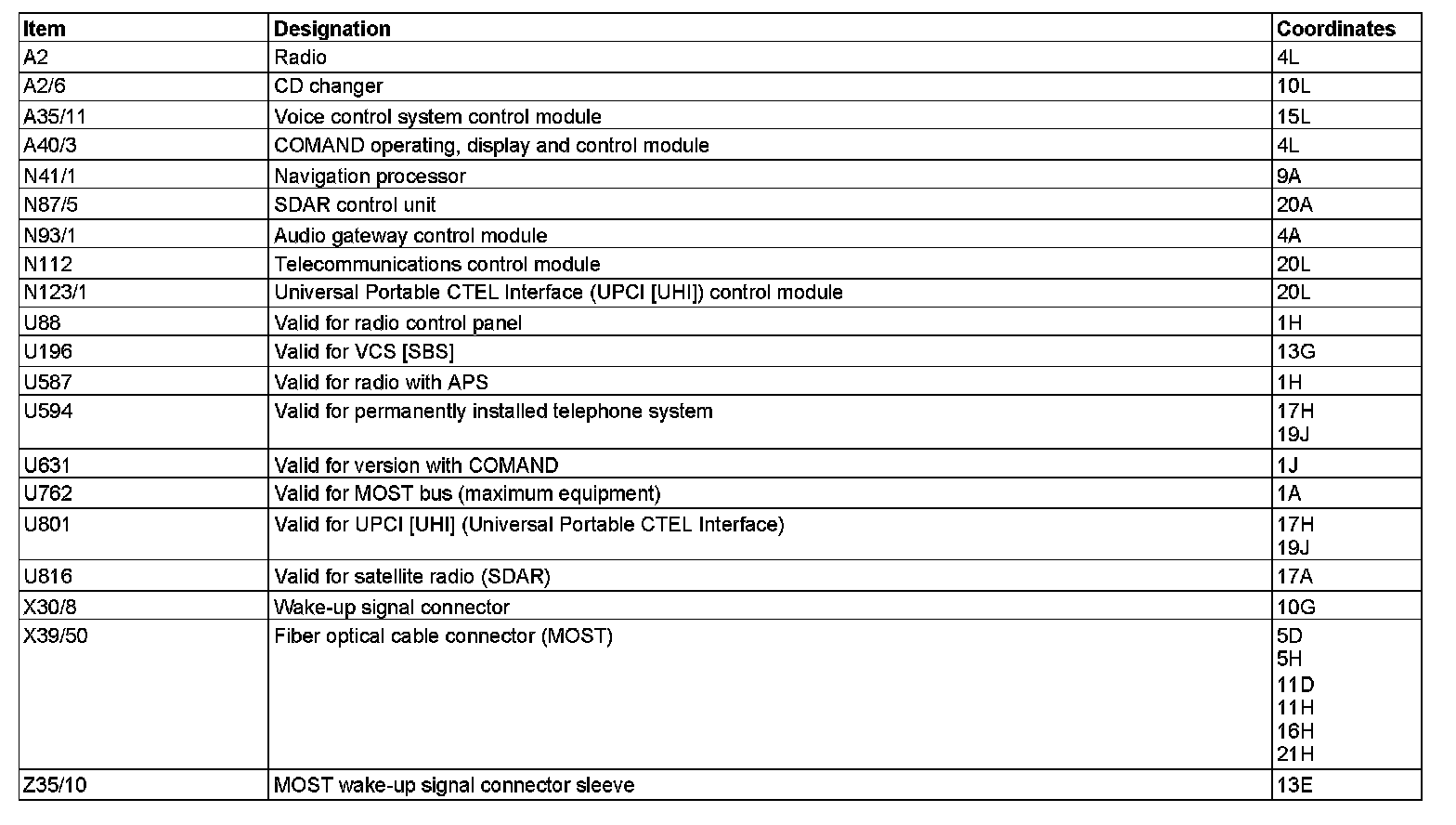

Component Description/Coordinates, A2 To Z35/10:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
