Function Diagram of Instrument Cluster (IC) PE54.30-U-2051DA



Function Diagram Of Instrument Cluster (IC) Electrical System PE54.30-U-2051DA

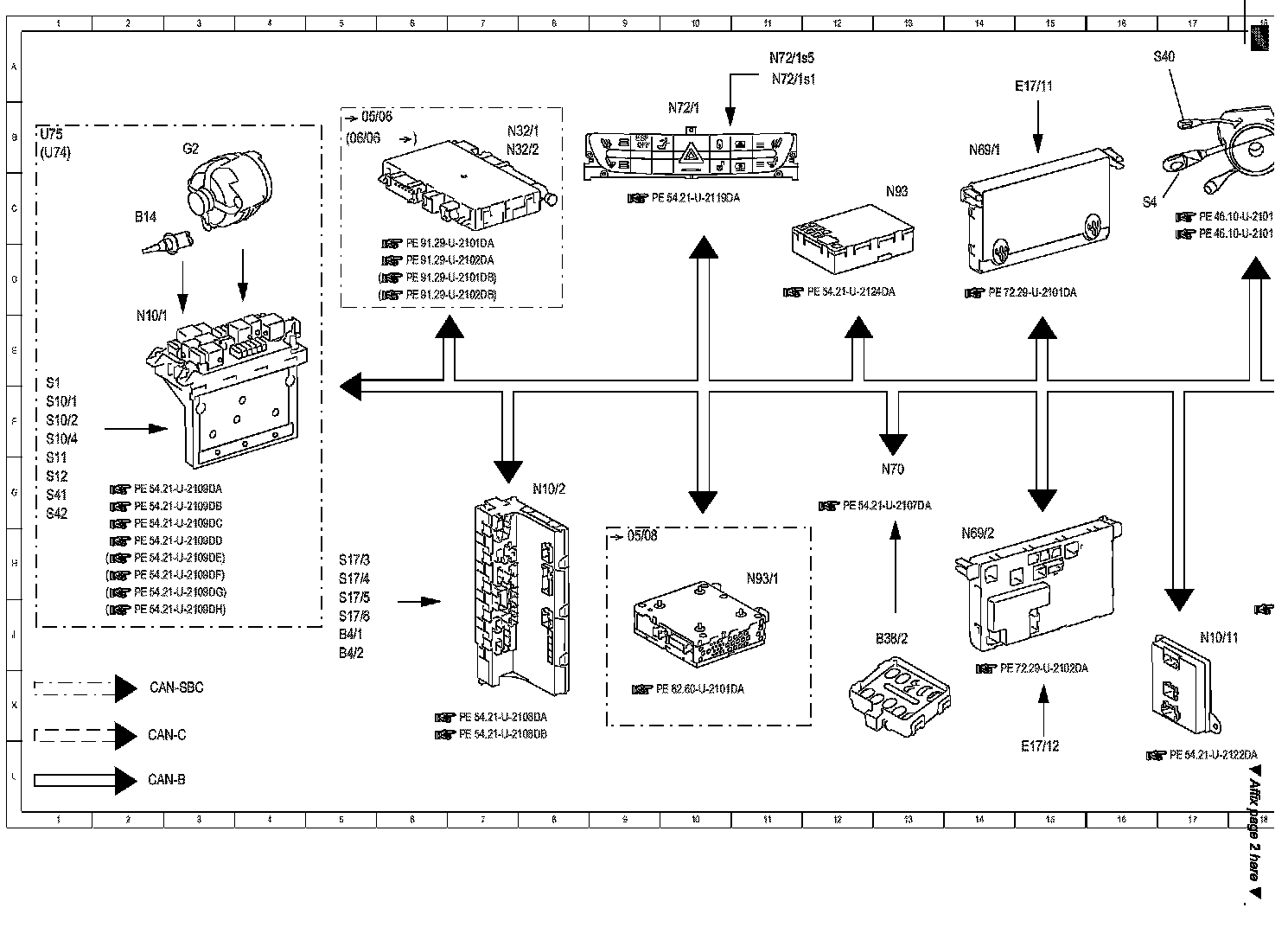

Function Diagram (Part 1):

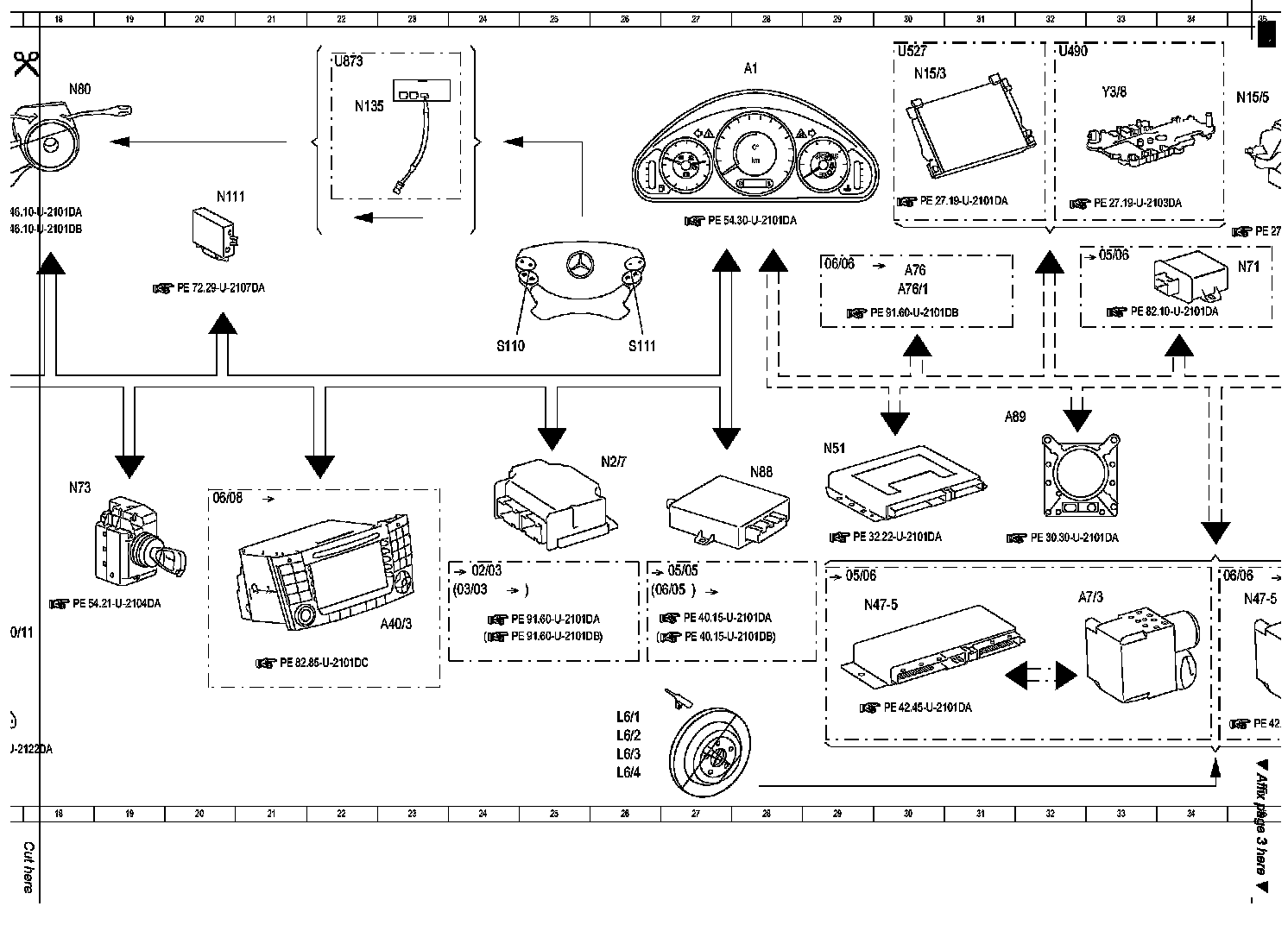

Function Diagram (Part 2):

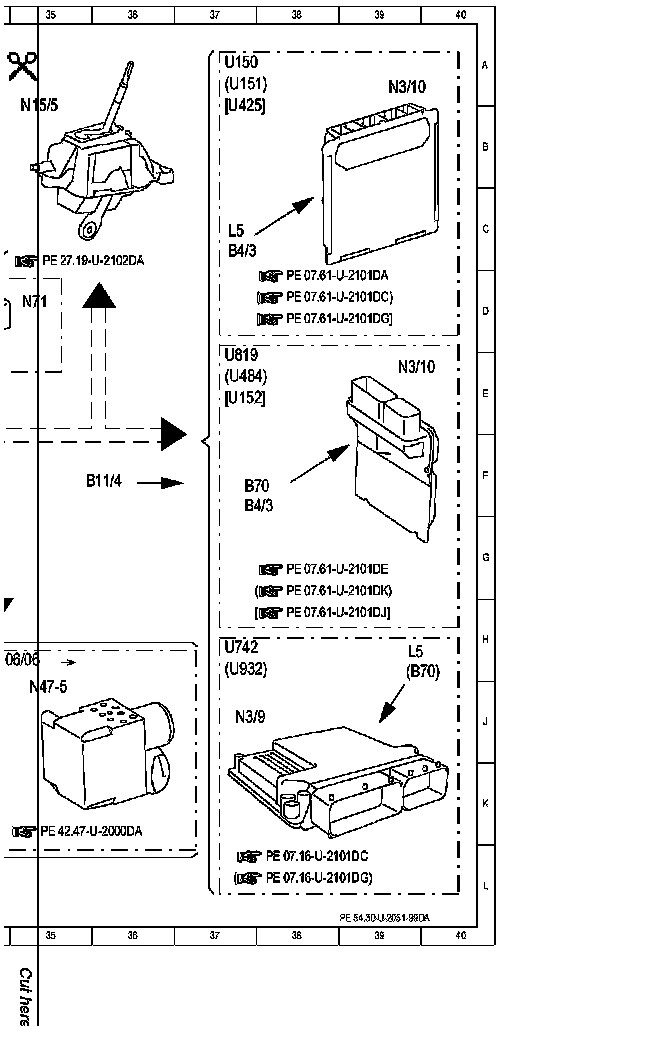

Function Diagram (Part 3):






Component Description/Coordinates, A1 To S11:

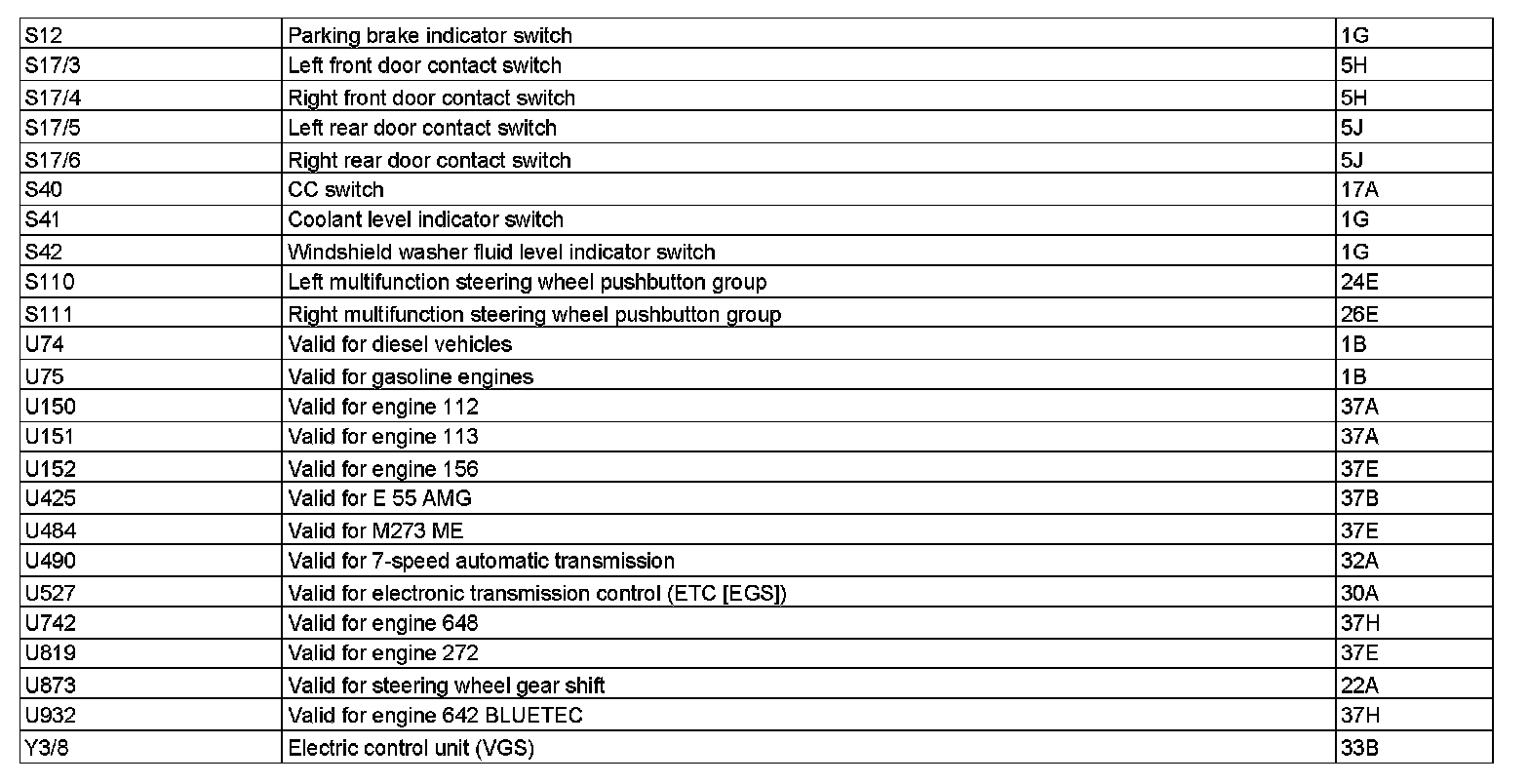

Component Description/Coordinates, S12 To Y3/8:








Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
