Block Diagram of Relay Module For Heated Windows PE67.29-P-2002DA

Block Diagram Of Relay Module For Heated Windows PE67.29-P-2002DA
- with CODE (Z04) light armoring

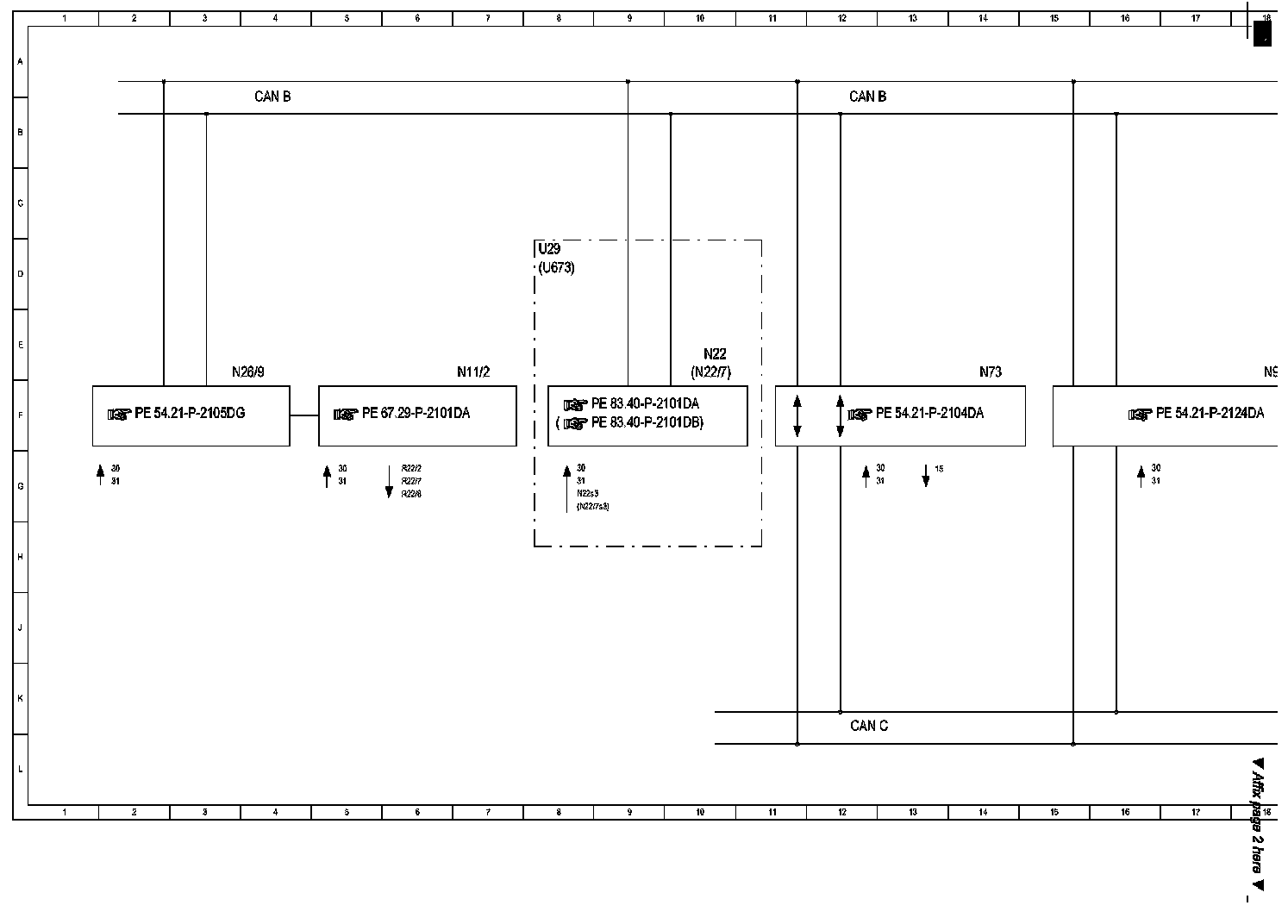

Wiring Diagram (Part 1):

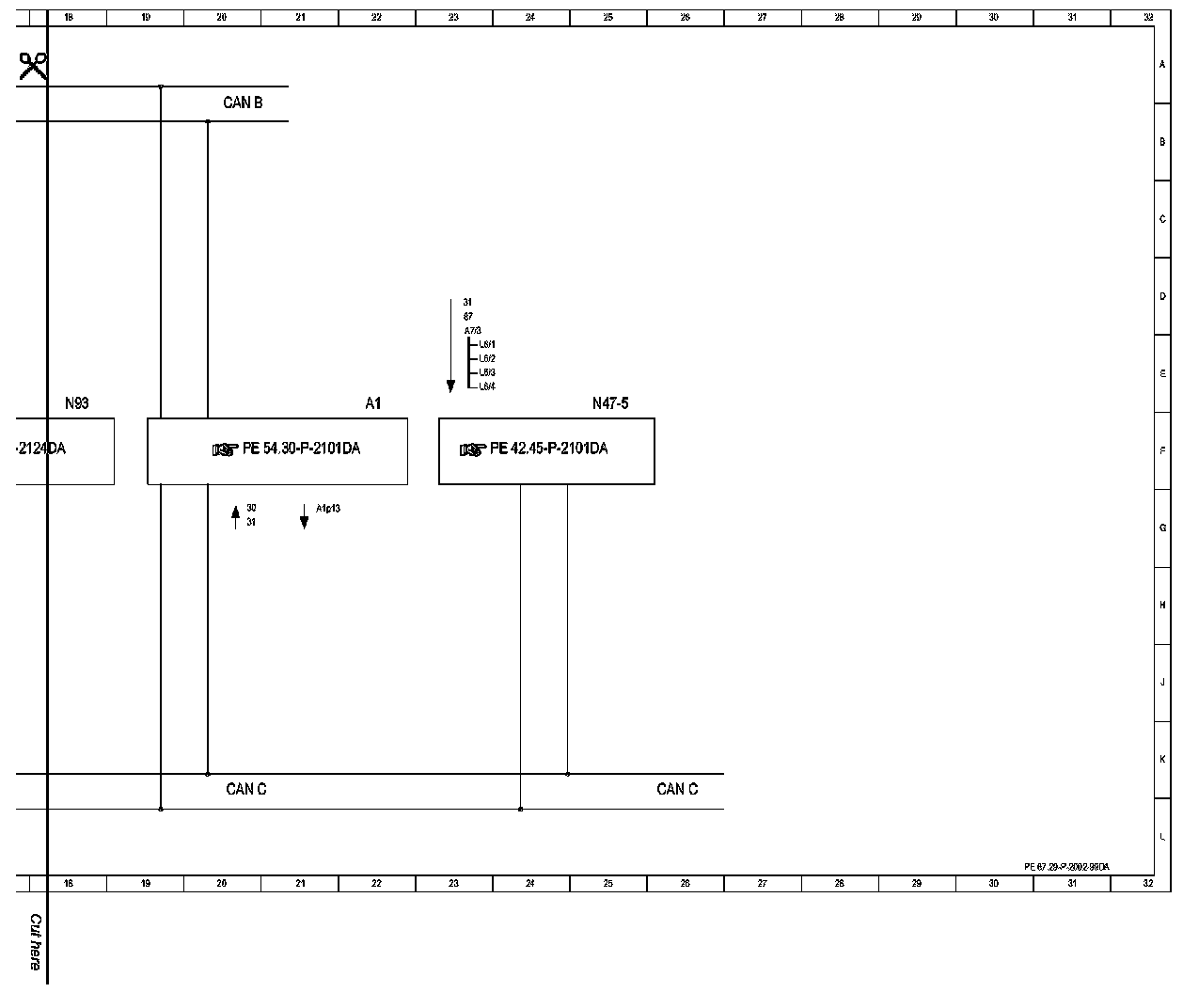

Wiring Diagram (Part 2):

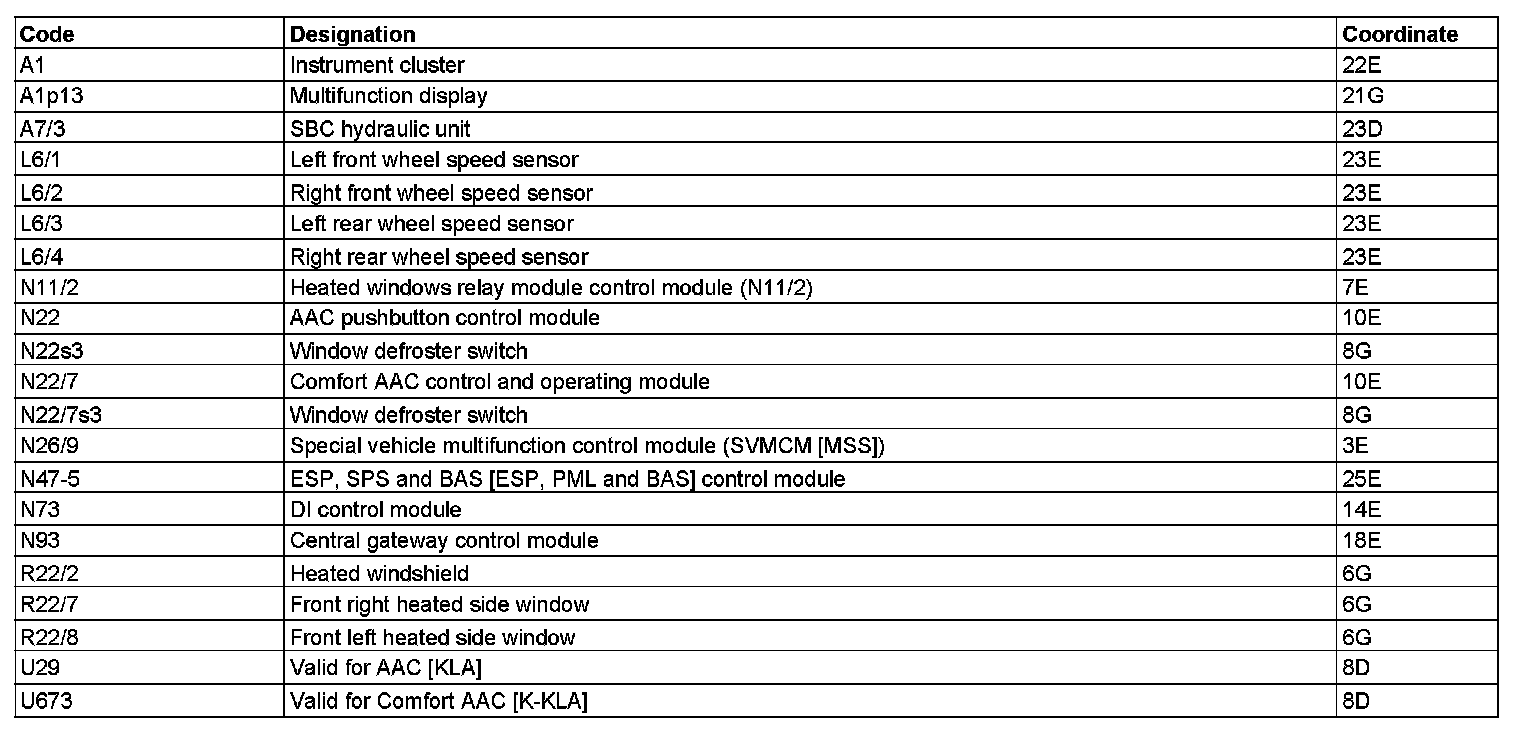

Component Description/Coordinates, A1 To U673:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
