Wiring Diagram Emergency Call System PE82.95-U-2101DB

Wiring Diagram Emergency Call System Control Module PE82.95-U-2101DB

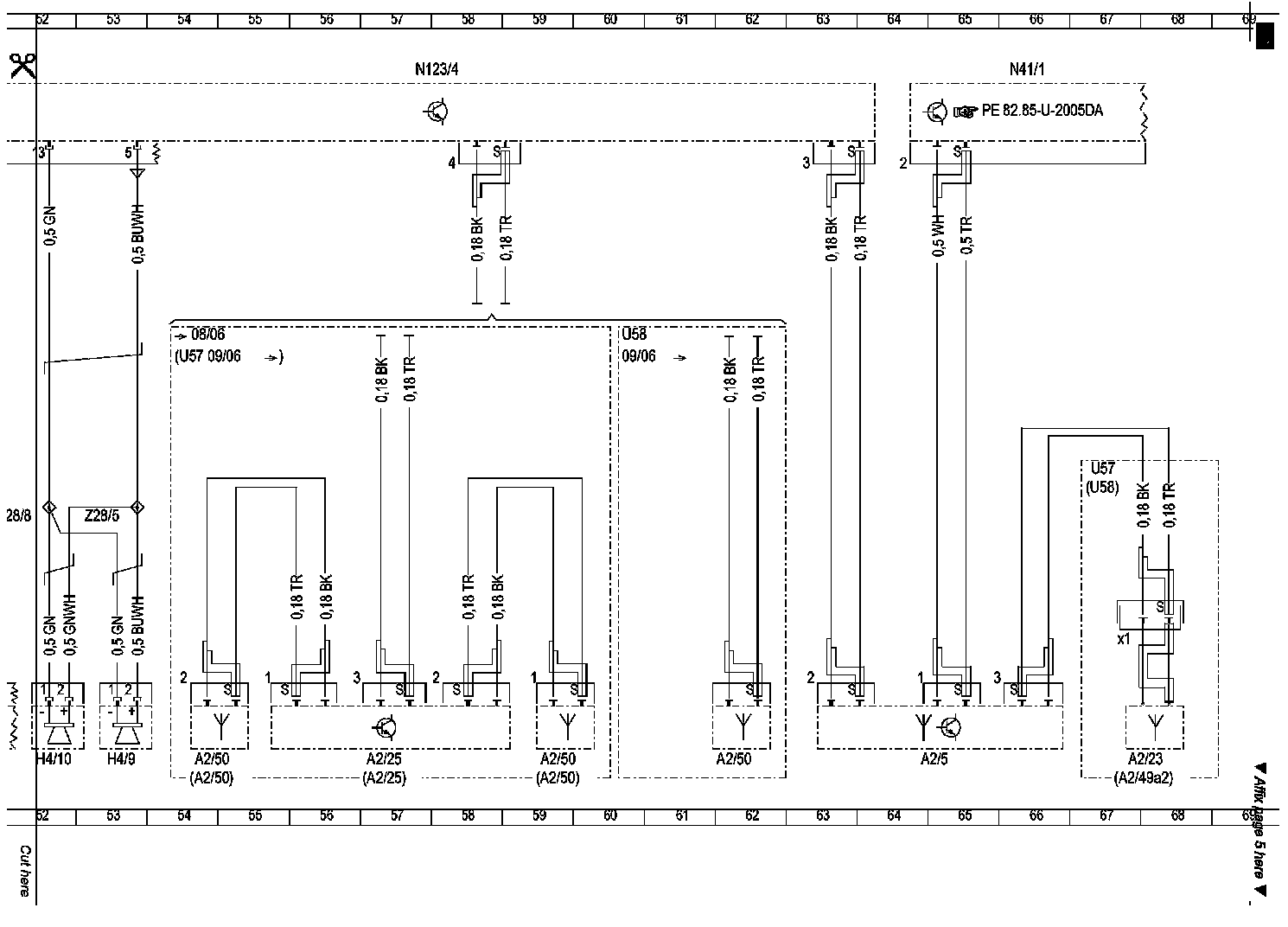

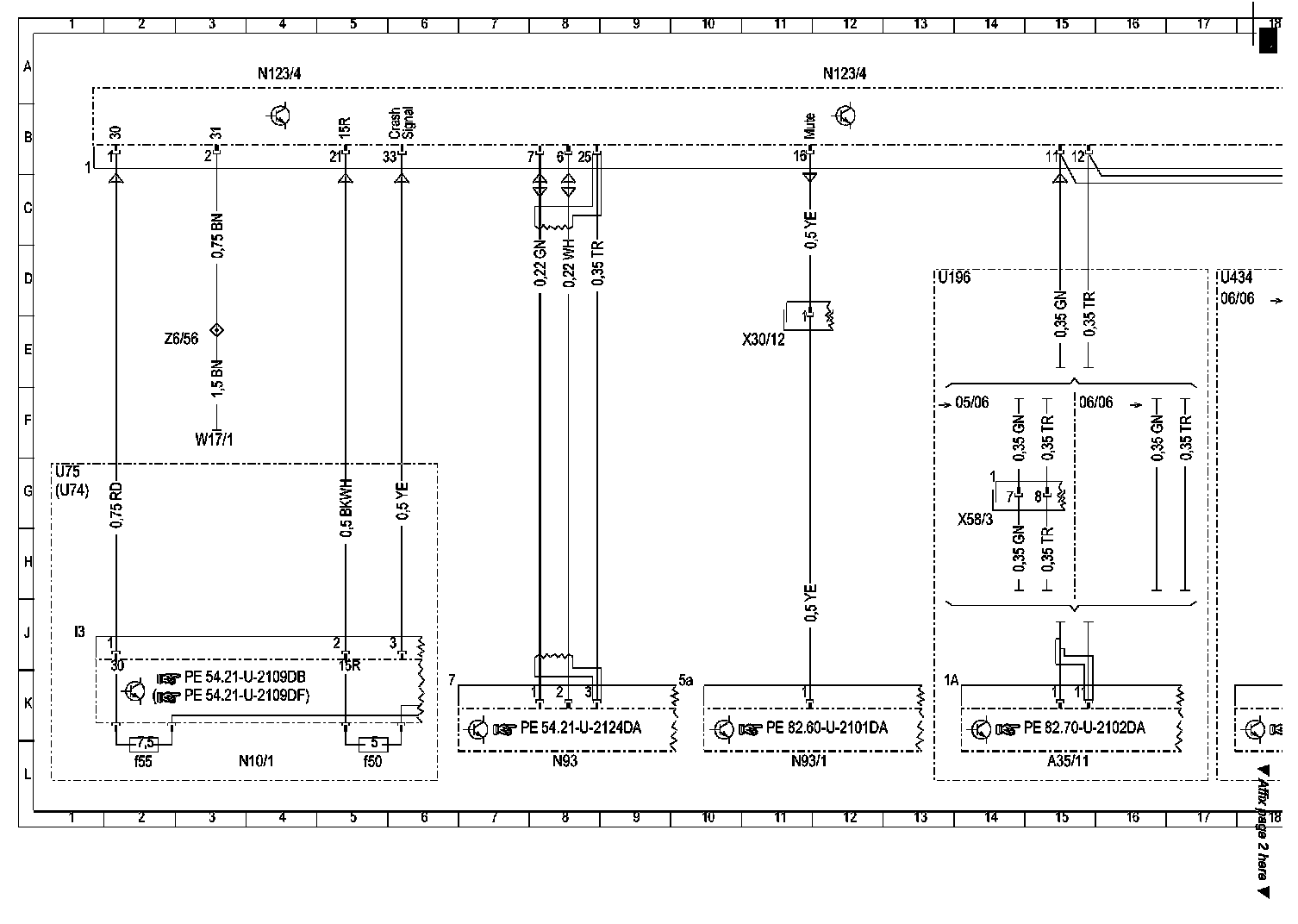

Wiring Diagram (Part 1):

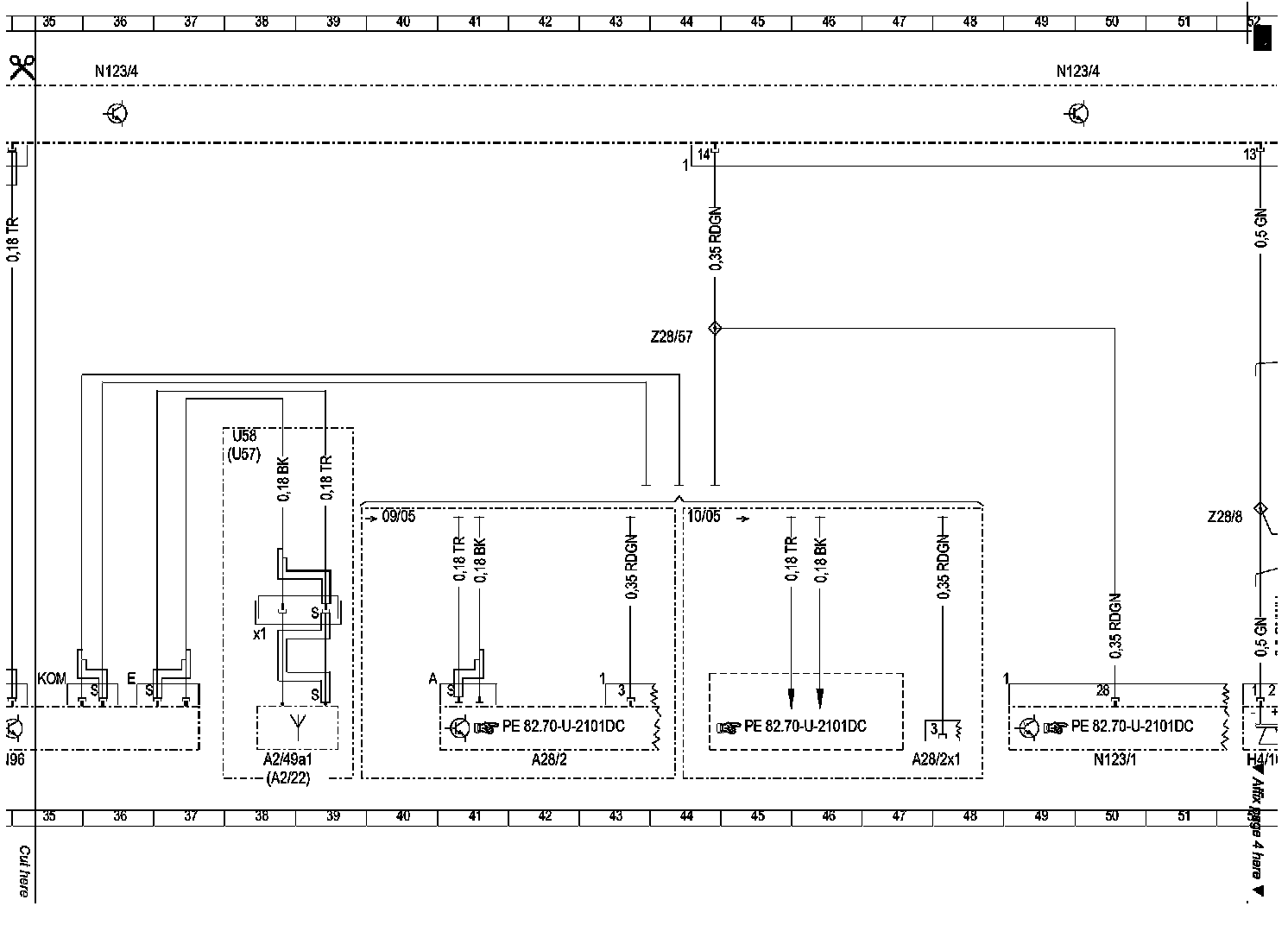

Wiring Diagram (Part 2):

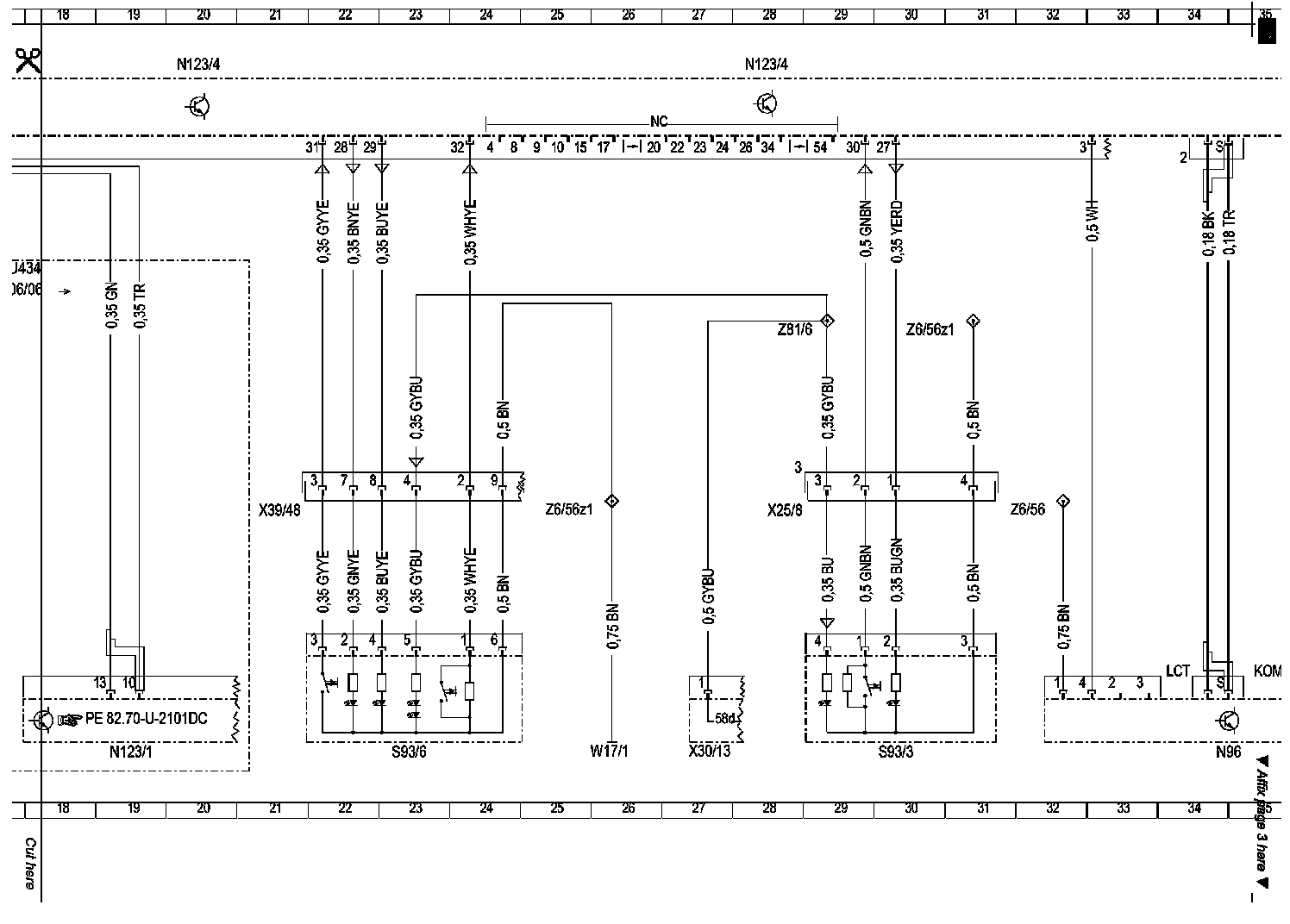

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

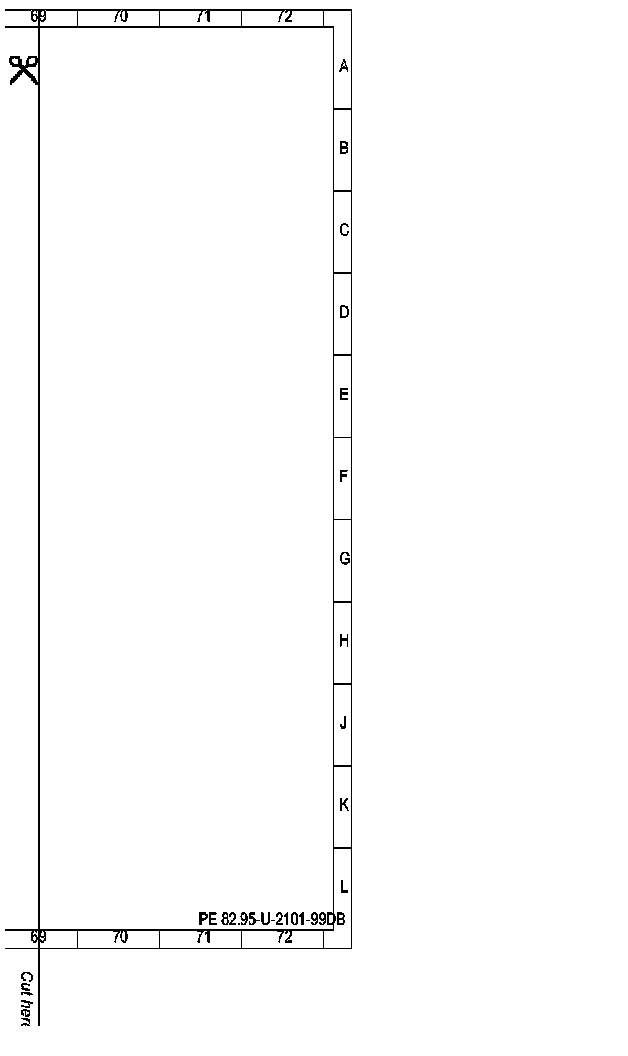

Wiring Diagram (Part 5):

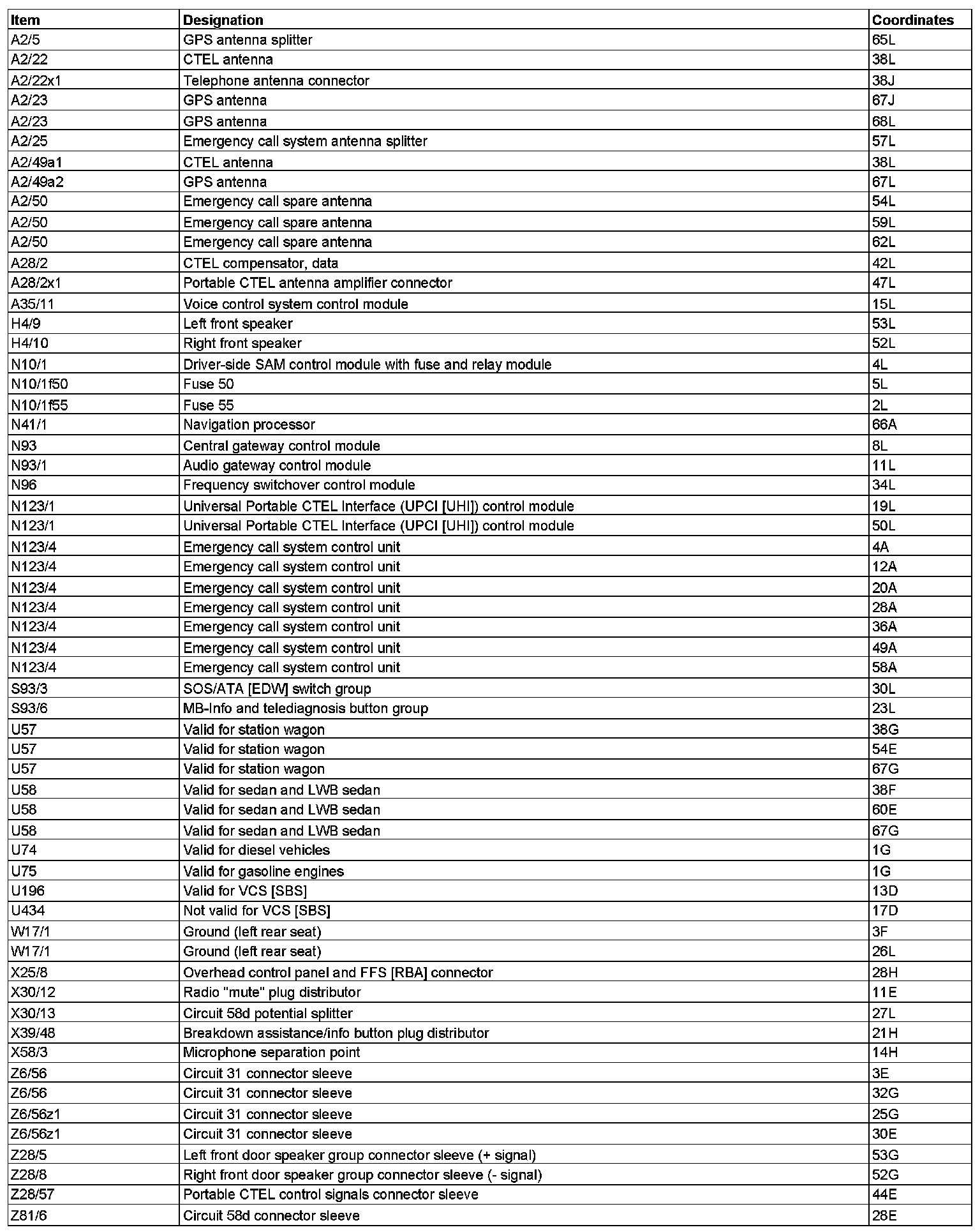

Component Description/Coordinates, A2/5 To Z81/6:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
