Panic Alarm System (PAS), Block Diagram PE82.25-P-2003DB

Panic Alarm System (PAS), Block Diagram PE82.25-P-2003DB
- with CODE (Z04) light armoring

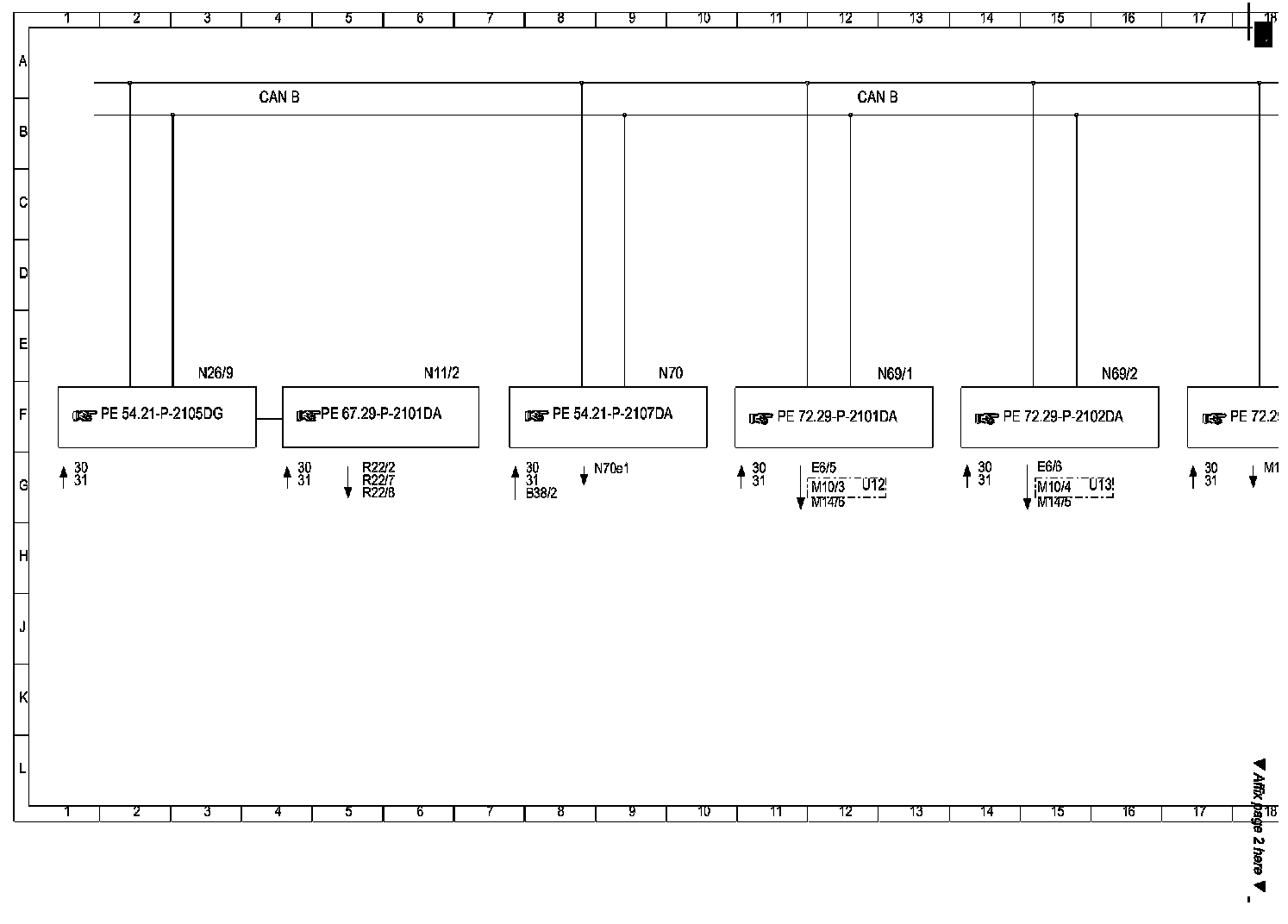

Wiring Diagram (Part 1):

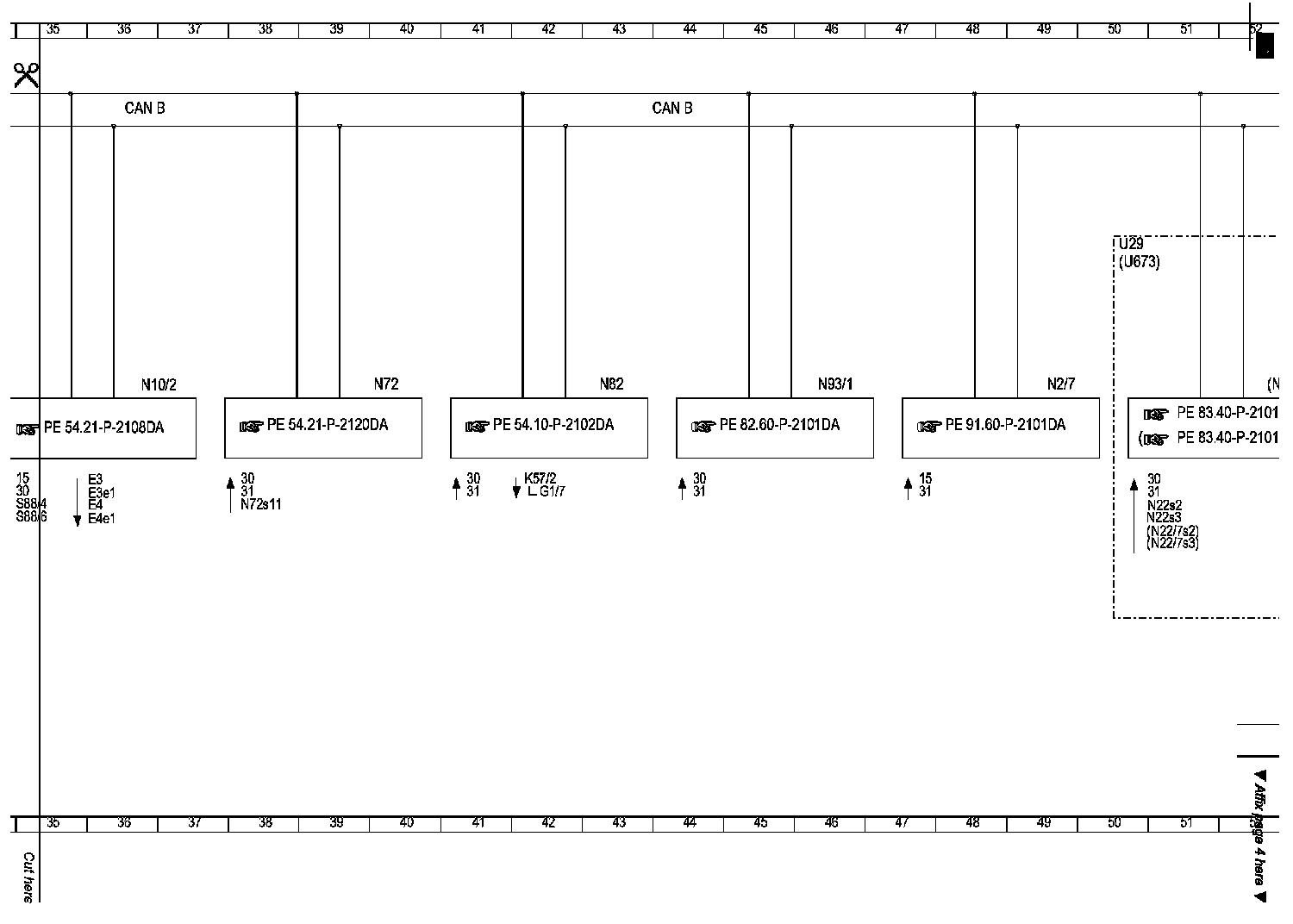

Wiring Diagram (Part 2):

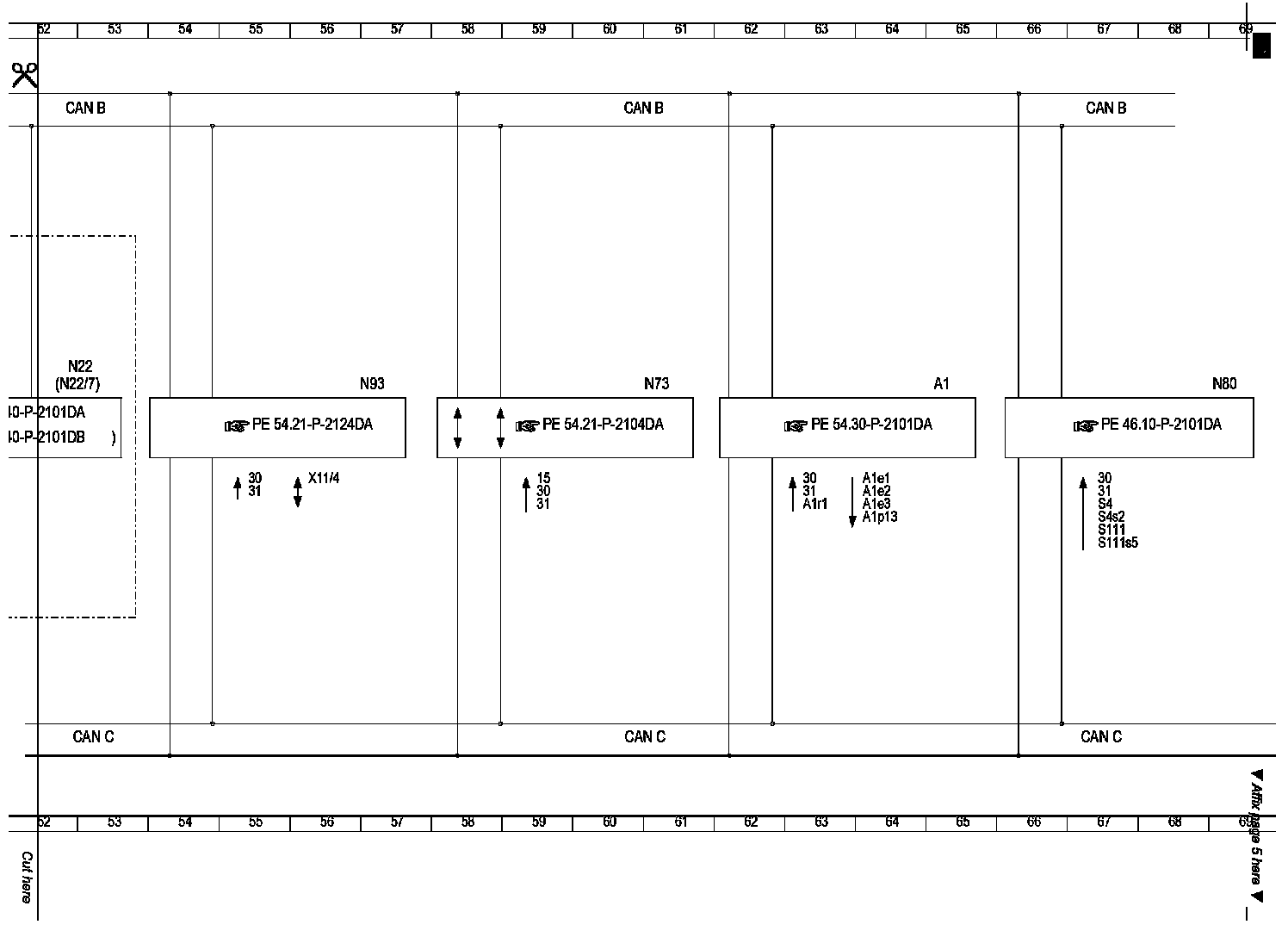

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

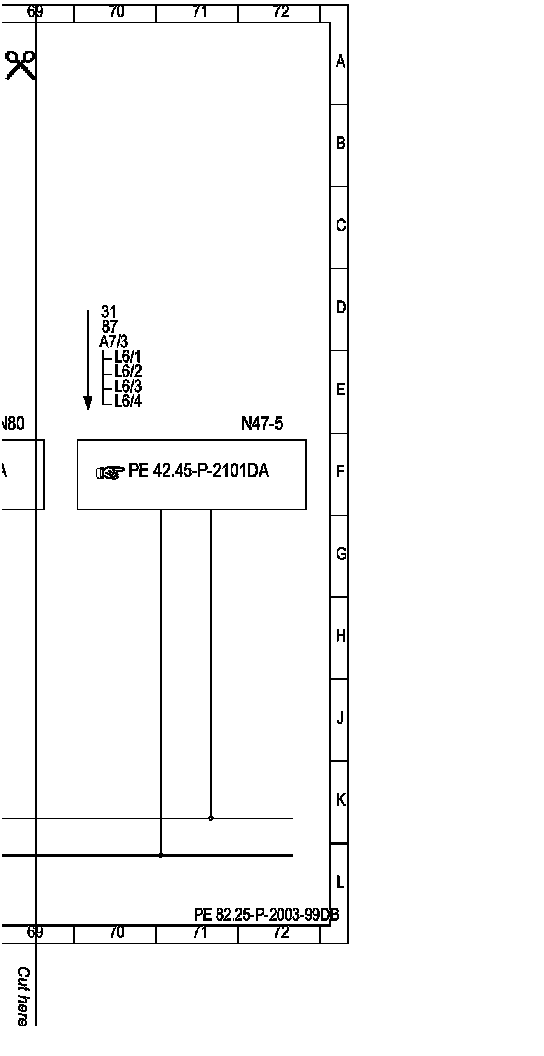

Wiring Diagram (Part 5):

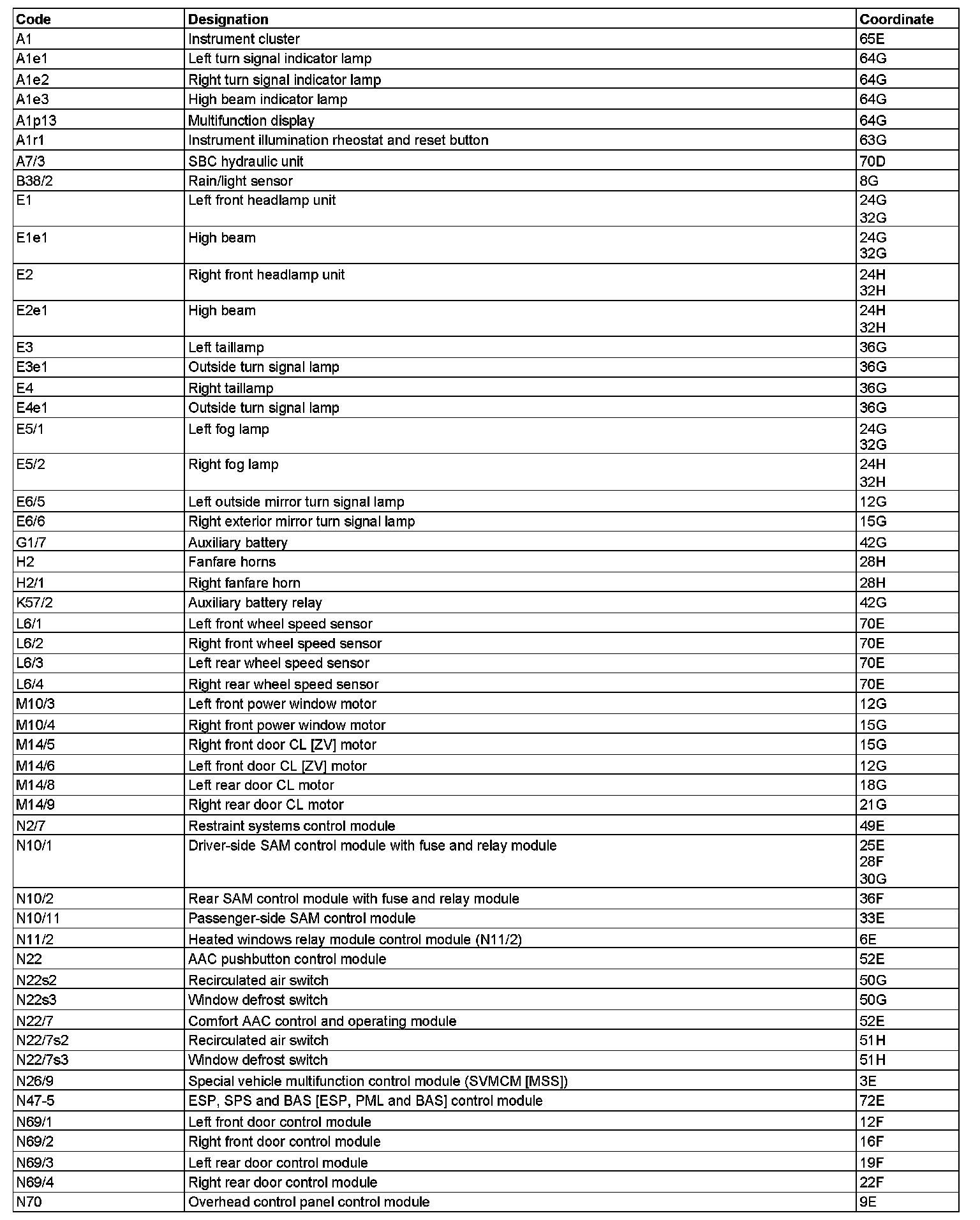

Component Description/Coordinates, A1 To N70:

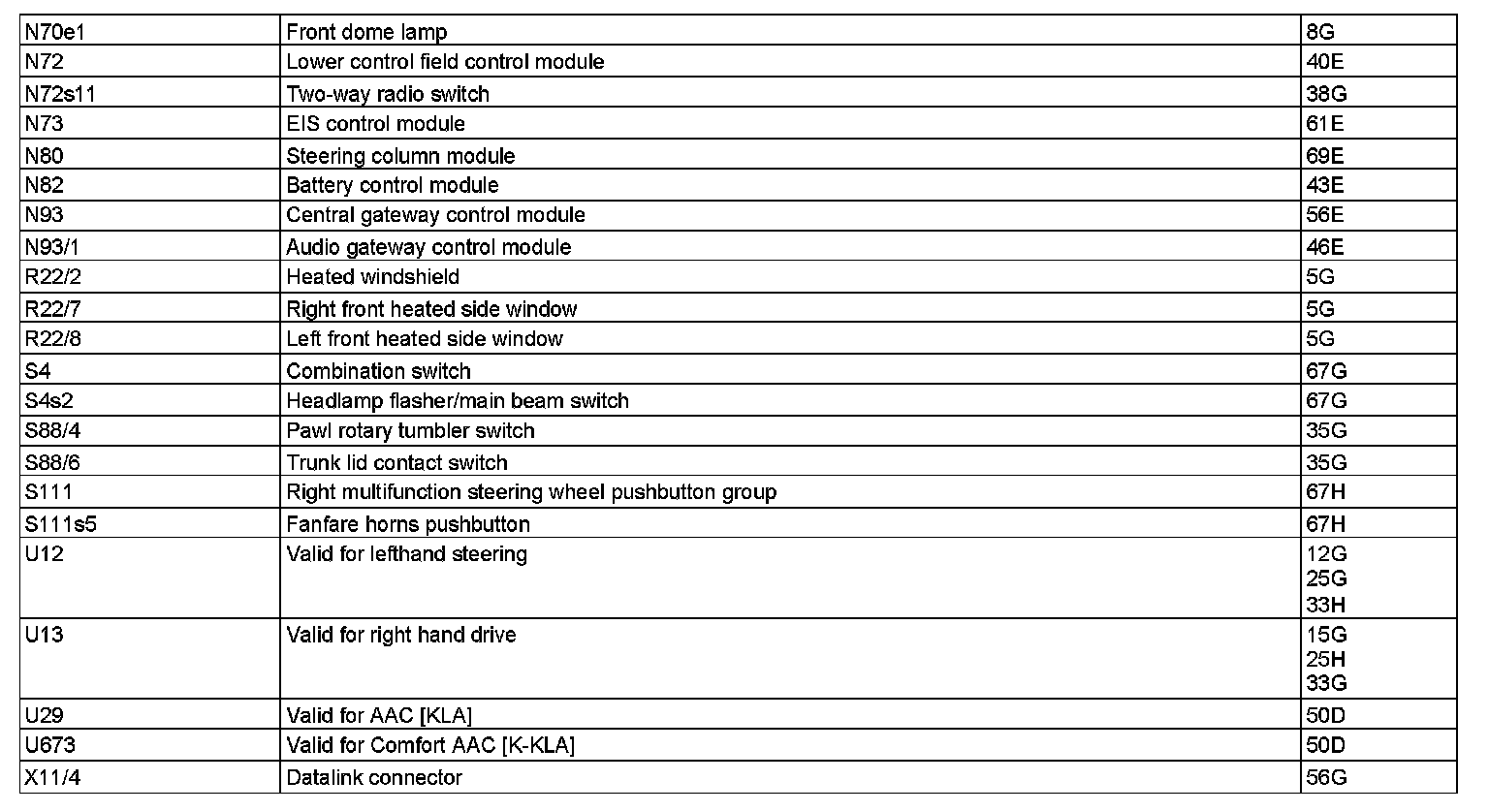

Component Description/Coordinates, N70e1 To X11/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
