Mercedes Benz
>>
2007
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Fu to Fu
>>
Fuse 60
Fuse 60
Fuse 60

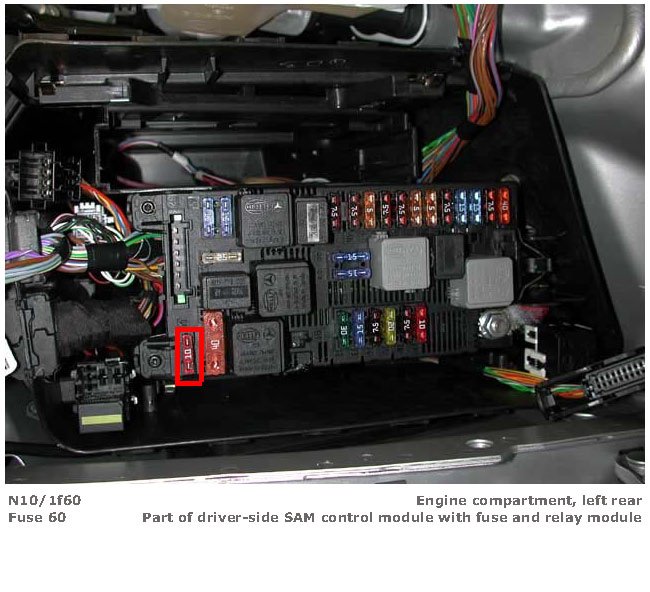

Fuse 60 (View 1):

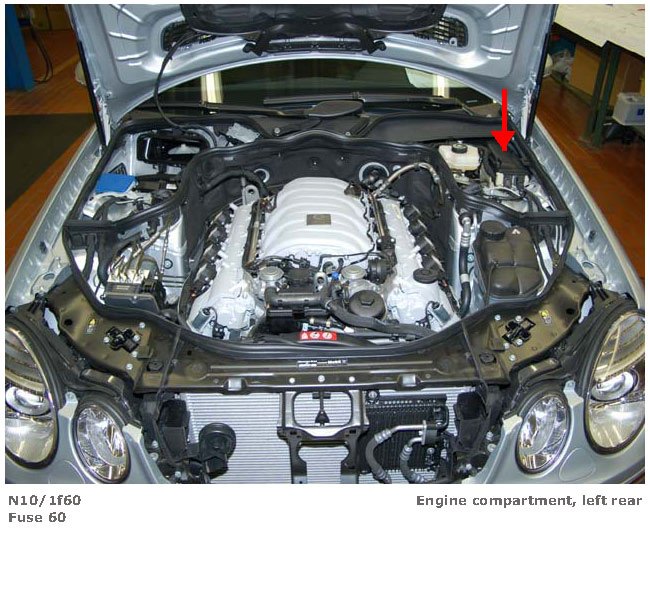

Fuse 60 (View 2):
