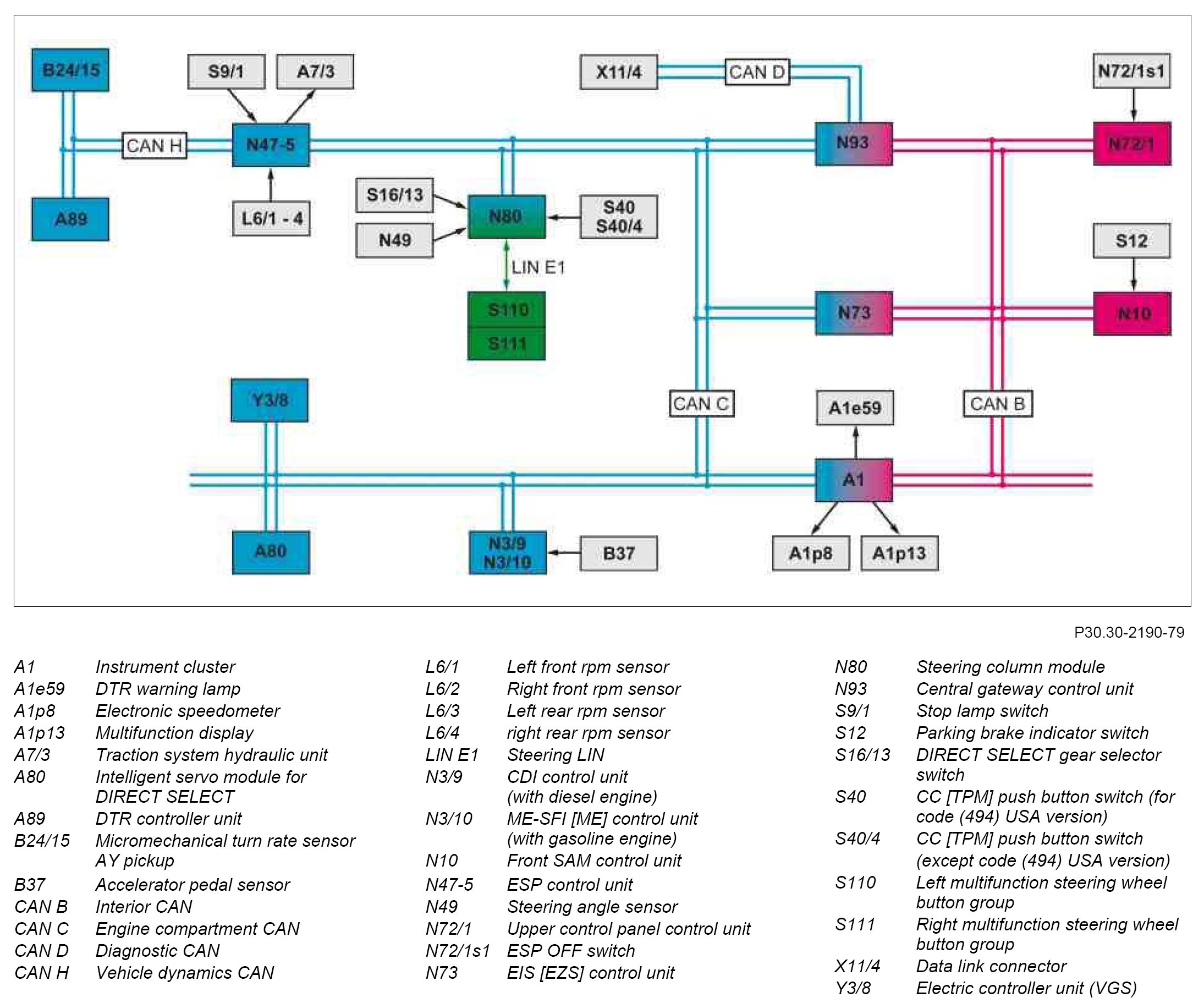

GF30.30-P-0005-05GQ Distronic Block Diagram
GF30.30-P-0005-05GQ Distronic Block Diagram
GF30.30-P-0005-05GQ DISTRONIC Block Diagram
-
with CODE (219) Distronic (DTR)
