Vacuum Pump: Service and Repair



AR43.05-P-1320TI Remove/install vacuum pump

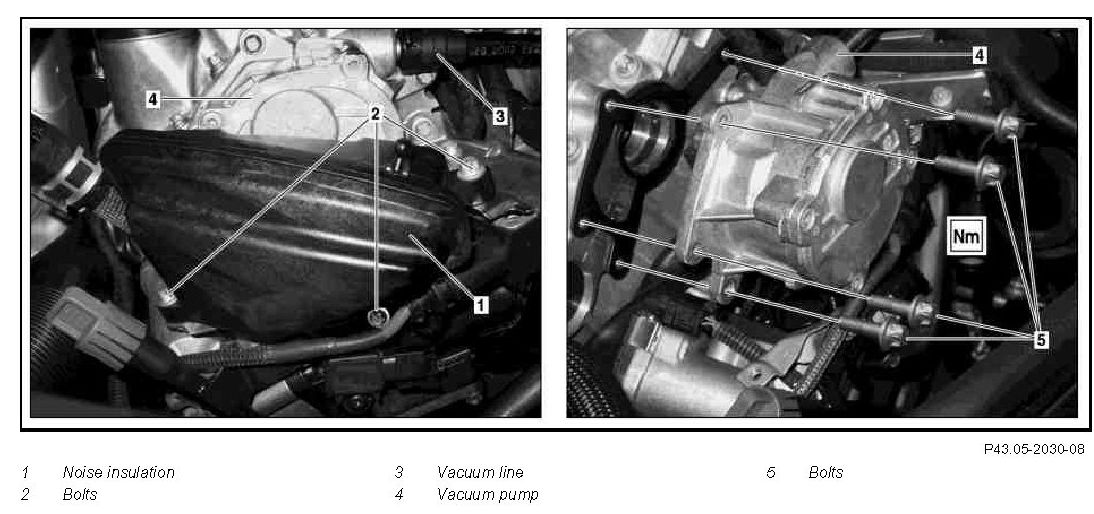

Component Identification:

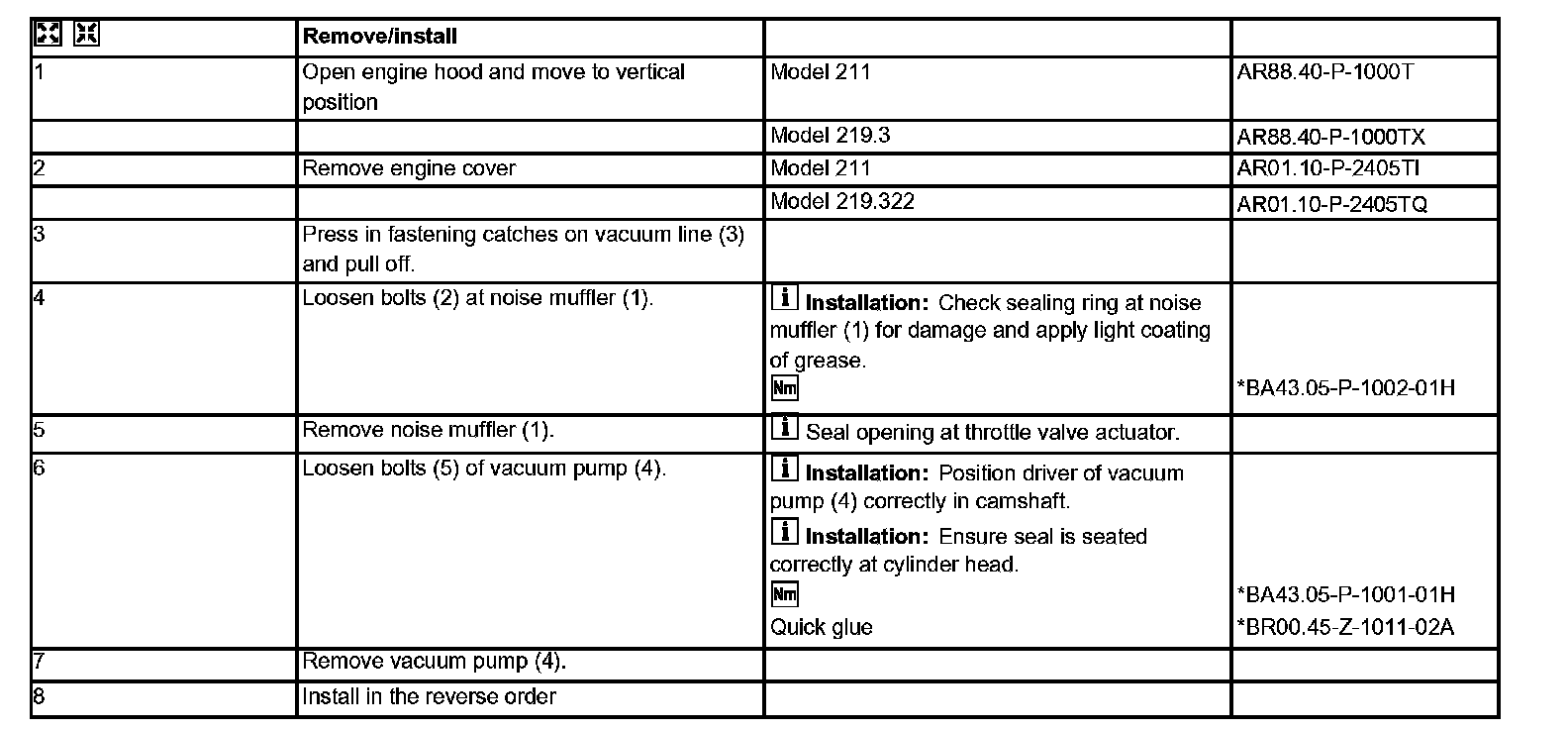

Remove/install Steps 1-8:

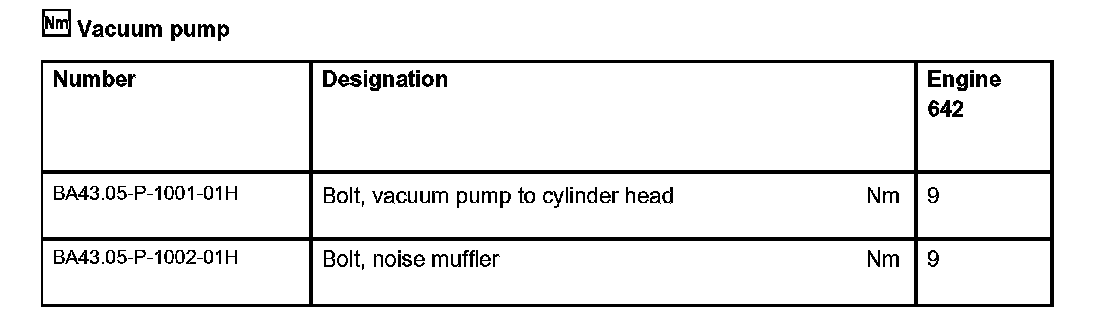

Vacuum pump:

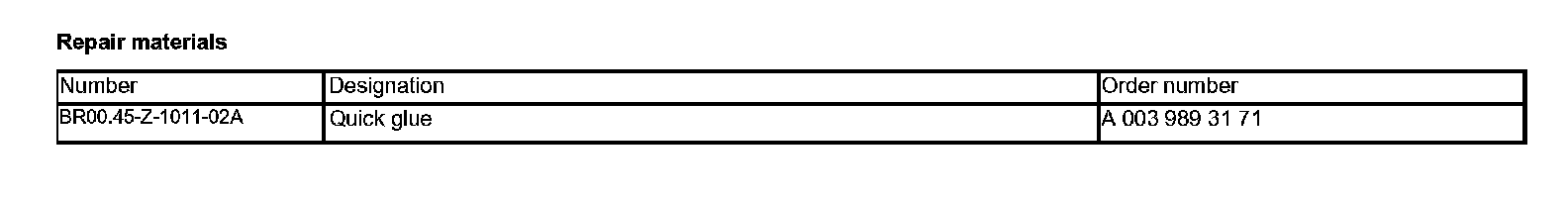

Repair materials:
