AR42.45-P-0820-03T Inspect Contacts Contacts on ESP Control Unit and Traction System Hydraulic Unit

AR42.45-P-0820-03T Inspect Contacts Contacts on ESP Control Unit and Traction System Hydraulic Unit

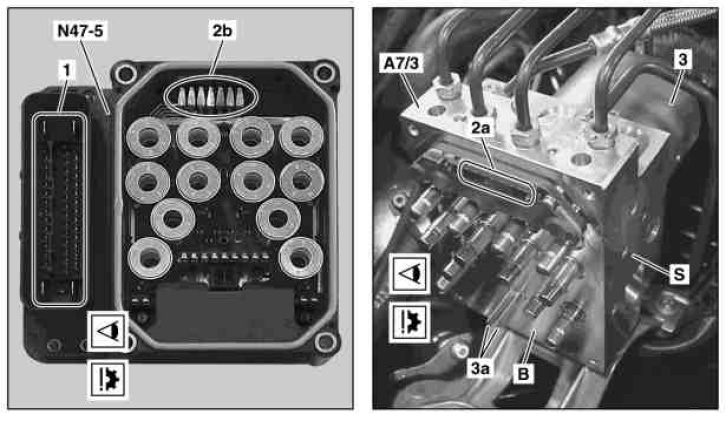

- with adaptive brake (ABR), Contacts in the ESP hydraulic unit and traction system





1 Contacts
2a Contact areas
2b Contact springs
3 Pump motor
3a Plug contacts

A7/3 Traction system hydraulic unit
N47-5 ESP control unit

B Bottom face
S Side face

1 Check contacts (1) for oxidation, pitting, deformation and other damage.

To prevent damage and malfunctions, never touch, machine or align the contacts (1), contact areas (2a) and contact springs (2b), or treat them with contact spray.

Do not connect any measuring instruments and do not apply voltage.

Replace the control unit (N47-5) if there is oxidation, pitting, deformation or any other damage.

2 Check alignment of plug contacts (3a) of pump motor (3).

To prevent damage and malfunctions, do not connect any measuring instruments and do not apply voltage.

The plug contacts (3a) must be perpendicular to the bottom face (B) and parallel to the side face (S) of the hydraulic unit (A7/3); carefully align the plug contacts (3a) if necessary.
