AR42.45-P-0820-02T Detach/Mount Connector

AR42.45-P-0820-02T Detach/mount connector
- with CODE (P99) Special model "AMG Black Series" [model 230.479]

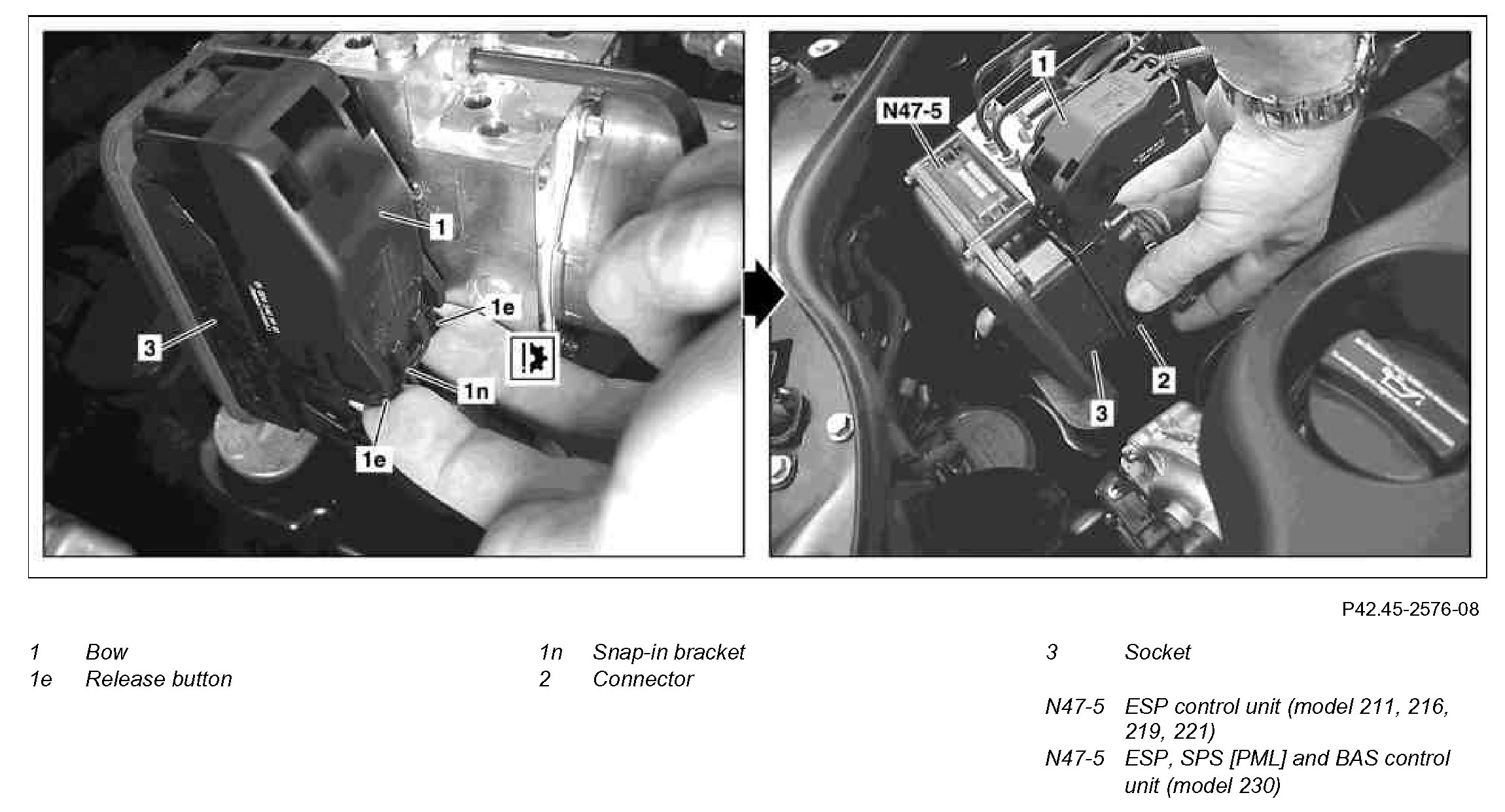

Component Identification:

Disconnect electrical connector

In the event of damage to the bracket (1), connector (2) or connector locking mechanism it is essential to replace the appropriate pars, otherwise the connector (2) can detach from the control unit (N47-5).

1 Open the connector locking mechanism; to do this, press both release buttons (1e) carefully from the bottom upwards.

Do not use a tool! Do not open snap-in bracket (1n)!

2 Swivel bracket (1) upwards approx. 90 degrees.

The connector (2) is pushed slightly out of the jack (3) on the control unit (N47-5).

3 Pull connector (2) out of jack (3).

In the process do not handle the connector (2) at the bracket (1), otherwise damage to the bracket (1) and connector locking mechanism can occur!

4 Swivel bracket (1) downwards until the connector locking mechanism latches.

In order to avoid damage to the bracket (1) and connector locking mechanism.

Connect electrical connector
5 Open connector locking mechanism (see operation step 1).
6 Swivel bracket (1) upwards approx. 90 degrees.
7 Insert connector (2) in jack (3) on control unit (N47-5) until this contacts the base of the jack (3) evenly over its entire length.

In the process do not handle the connector (2) at the bracket (1), otherwise damage to the bracket (1) and connector locking mechanism can occur!

8 Swivel bracket (1) downwards until the connector locking mechanism latches.

The connector (2) is drawn into its end position and locked.
