Disc Brake Dust / Mud Shield: Service and Repair

AR42.00-P-0100-01A Installing Protective Washers to Protect Brake Disk Dust Shields

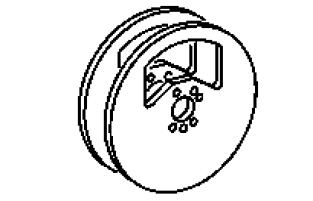

220 589 01 31 00
Guard plate





Guard plates (060) are not a substitute for complete wheels. The vehicle must not be lowered onto the mounted guard plates (060). When the engine is running, do not engage a gear or gear range, otherwise the guard plates (060) can be damaged.

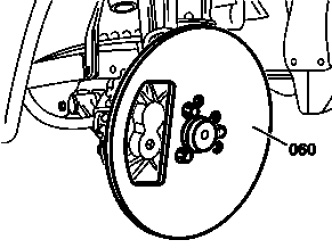

1 Attach guard plate (060) to the wheel hub using 3 wheel bolts.
Wheel bolts for light alloy rims are too long and must therefore not be used. Use only short wheel bolts.
