AR42.10-P-2260-01I Cleaning Perforations In Brake Discs

AR42.10-P-2260-01I Cleaning perforations in brake discs

Component Identification:

The holes in the perforated brake disks (61) can clog up due to brake dust and dirt. If this is the case, the perforation must be cleaned.

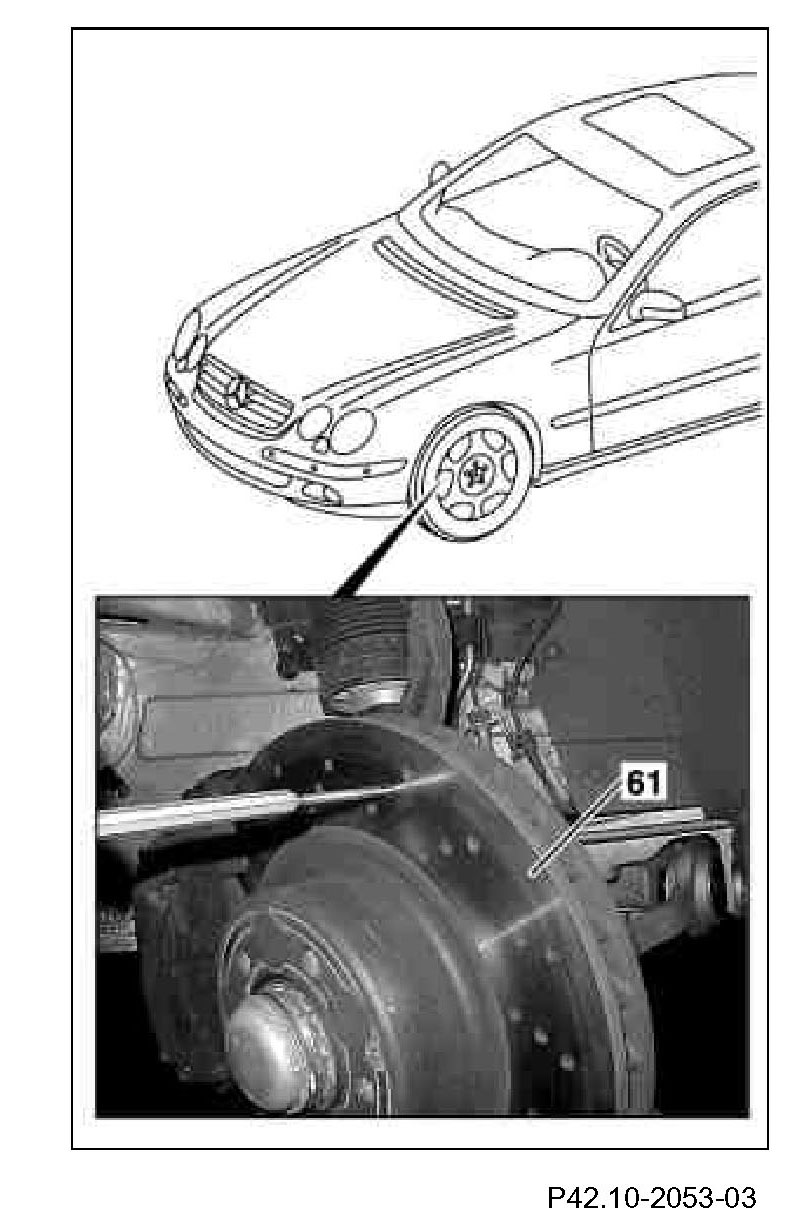

1 Remove brake dust and dirt from the holes in the brake disk (61) using a suitable drift.

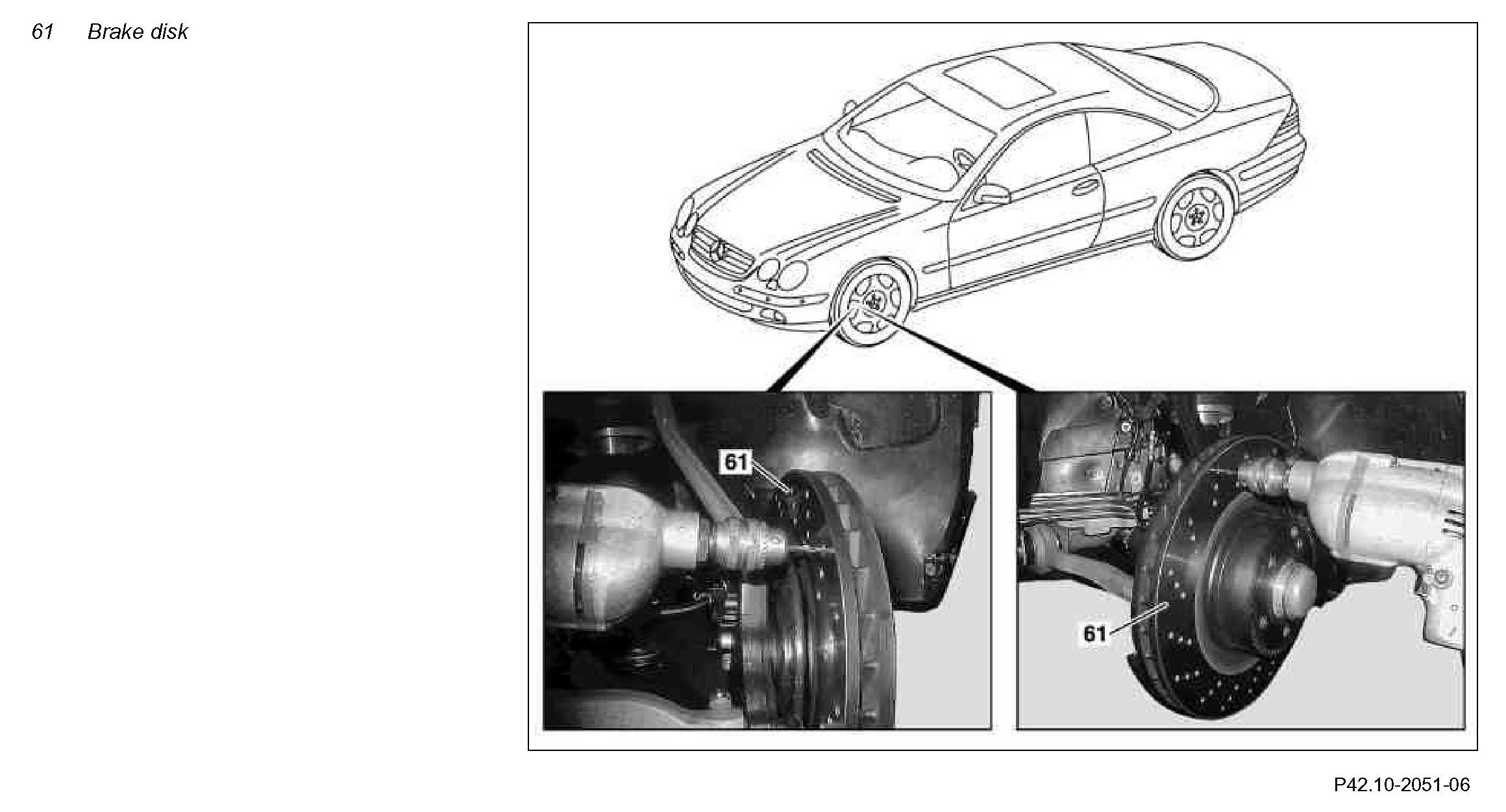

If it is not possible to remove the brake dust or dirt by means of the drift, use cordless drill/driver and 4.3 mm dia drill bit. In the process no chips may be lifted up from the brake disks (61), the holes in the brake disks (61) must not be enlarged under any circumstances.
