Brakes - Rear Brakes Squeal When Braking
Rear wheel brakes squeal when brakingTopic number LI42.10-P-048937
Version 1
Design group 42.10 Service brake
Date 03-10-2010
Validity Model 211/ 219; except 211.#76, 211.#77, 219.#76, 219.
#77 (AMG)
Reason for change
Reason for block
Complaint:
Rear wheel brakes squeal when braking.
Cause:
Resonant vibrations.
Remedy:
1. Check brake linings for ease of movement.
2. Remove brake linings from lining slots and clean the slots if necessary.
3. Replace brake linings and lightly grease lining surfaces accordingly.

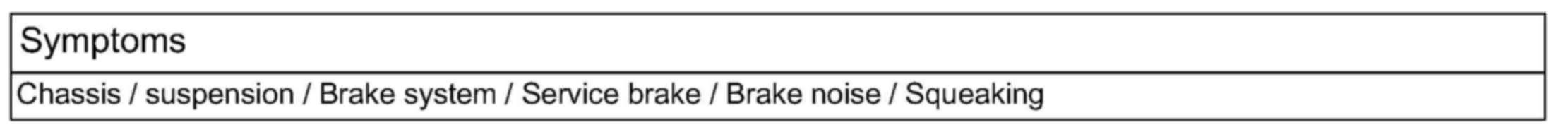

Symptoms

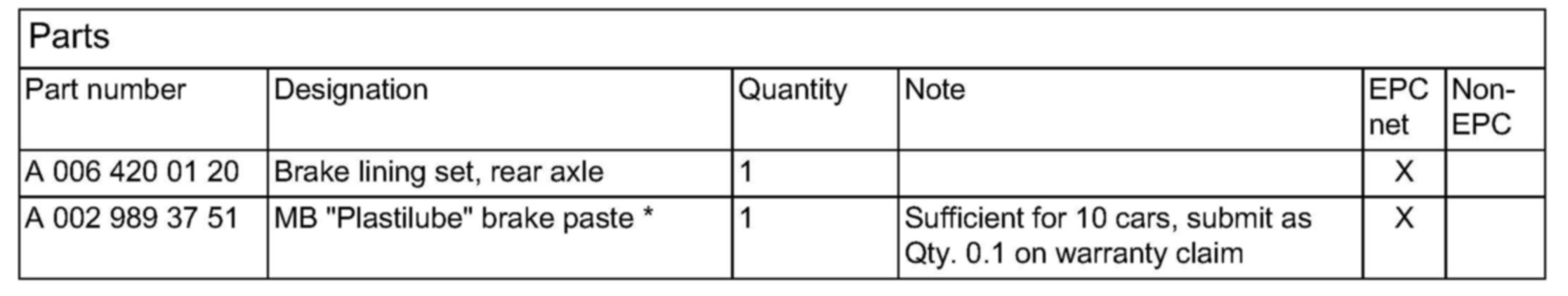

Parts

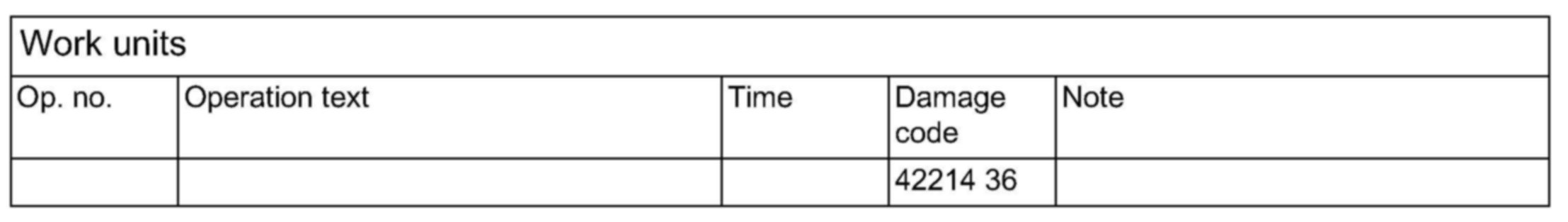

Work units

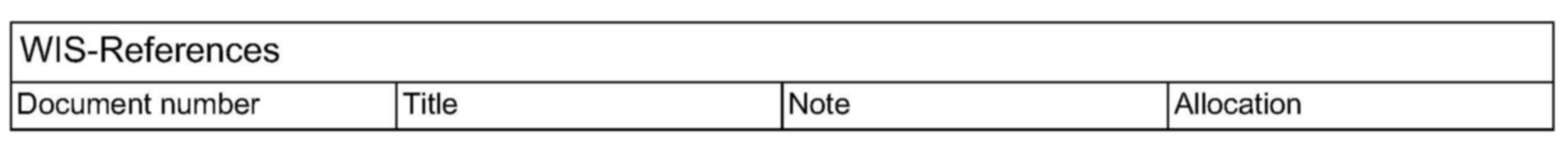

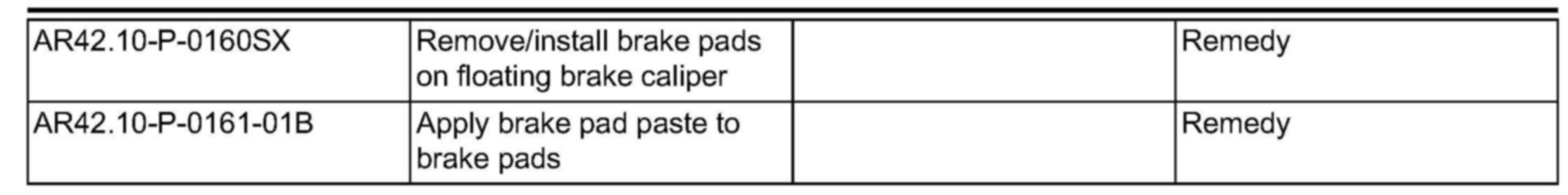

WIS-References

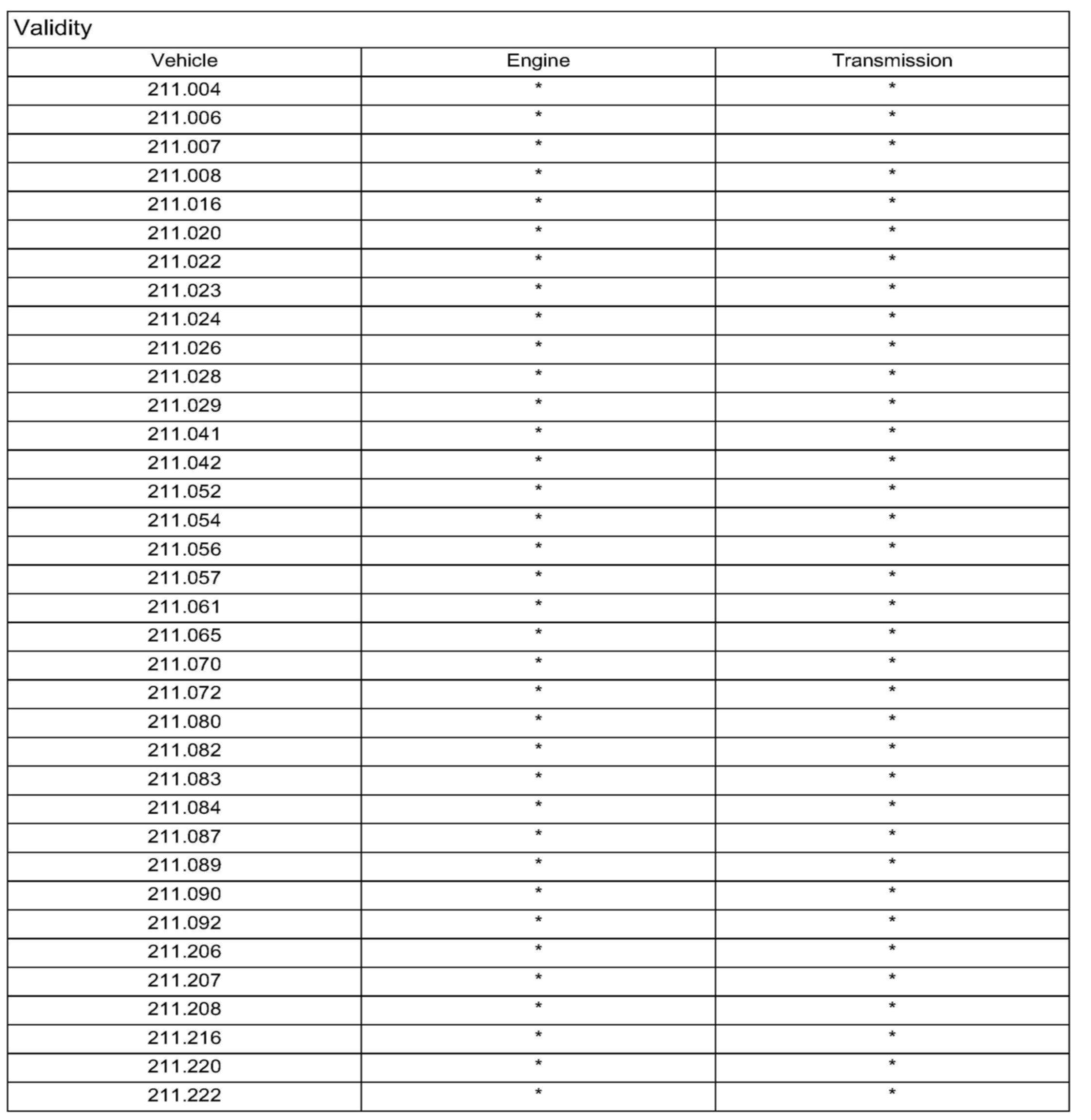

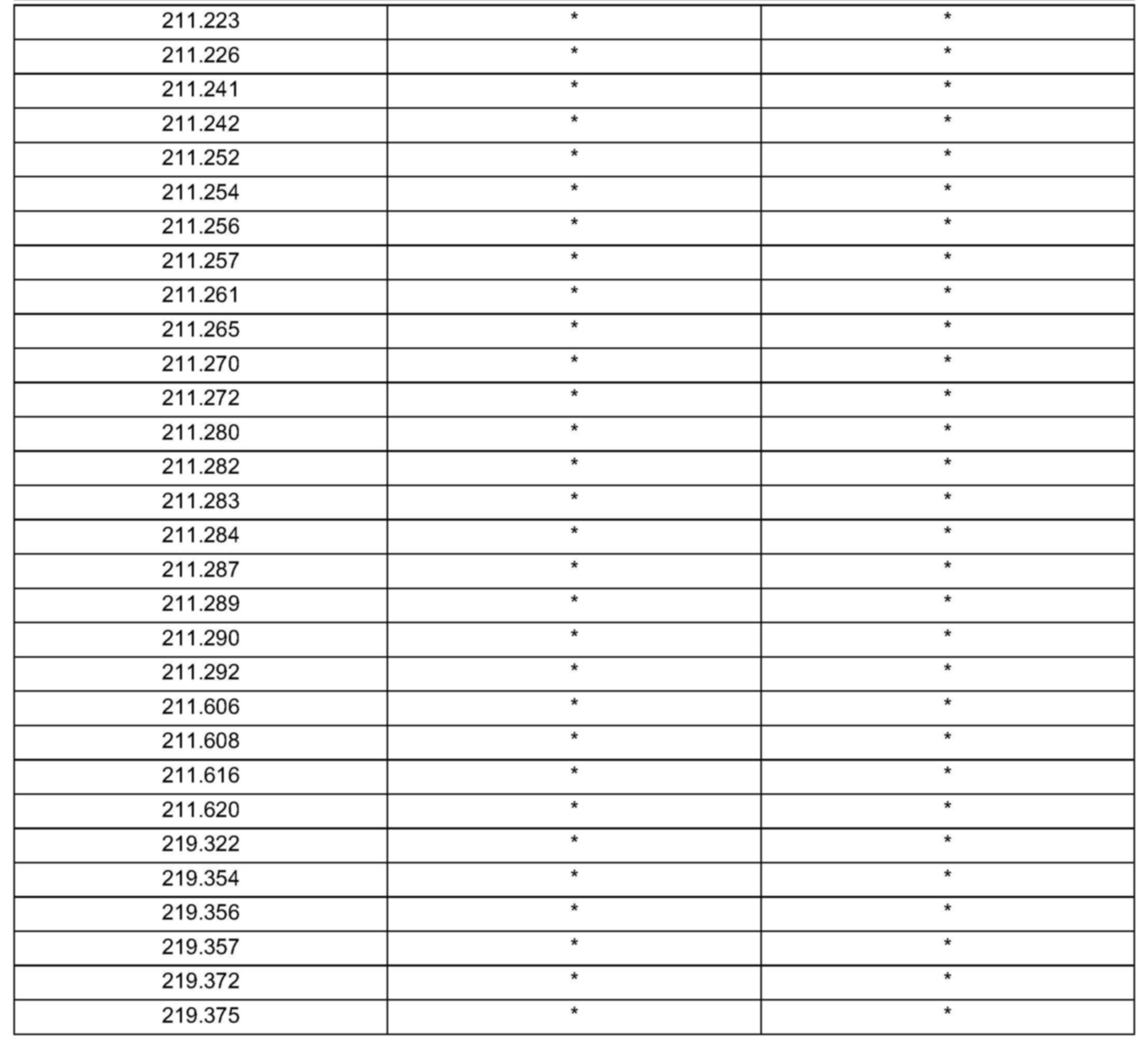

Validity
