Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Caliper >> Service and Repair >> Removal and Replacement >> AR42.10-P-0070T Remove/Install Front Axle Brake Caliper

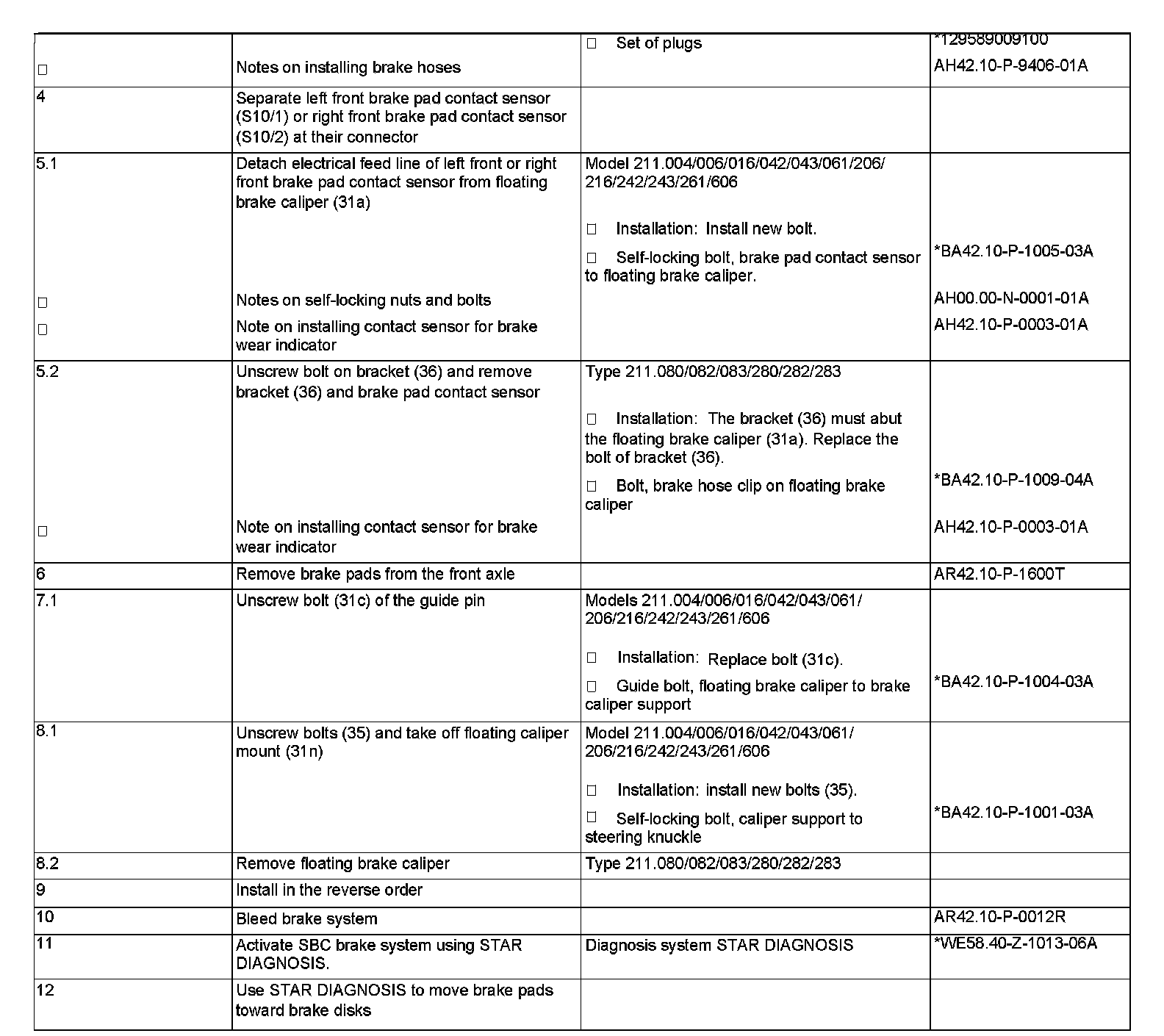

AR42.10-P-0070T Remove/Install Front Axle Brake Caliper




Remove/install front axle brake caliper

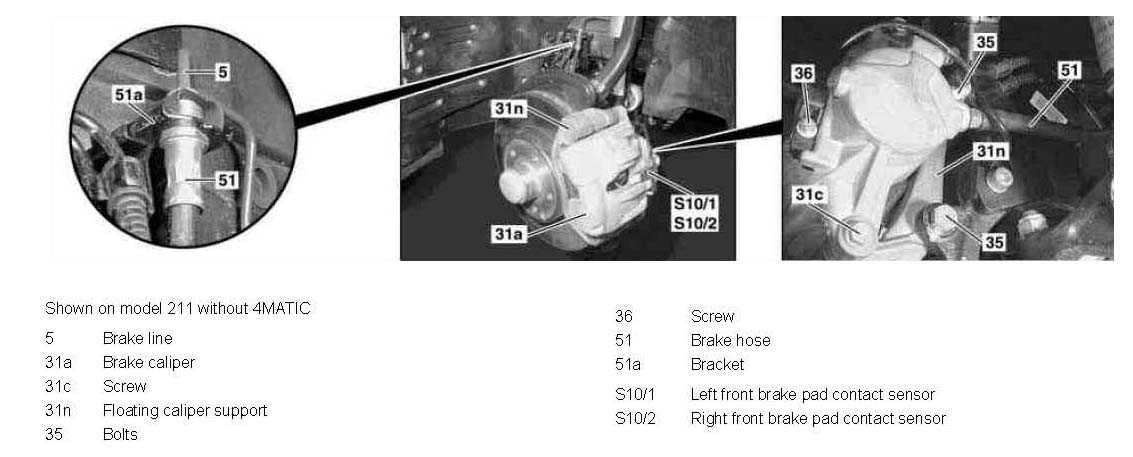

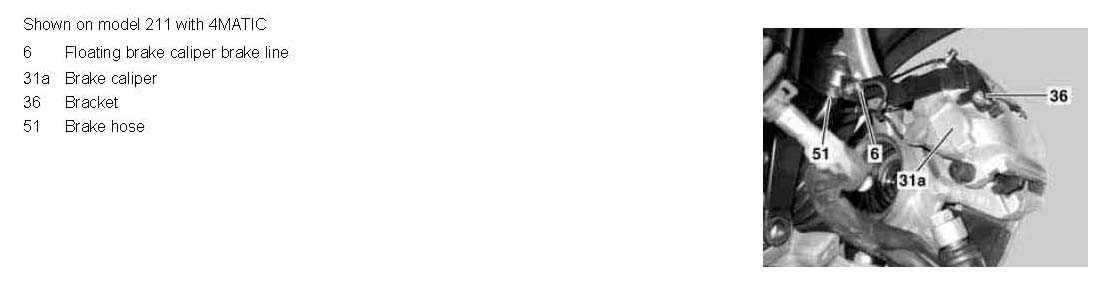

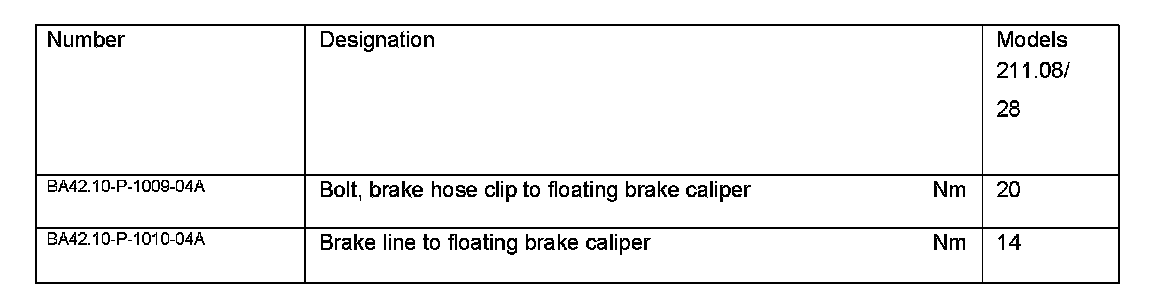

Brake lines, brake hoses:
