AR77.21-P-0620T Remove/Install Rear Panoramic Glass Roof Seal

AR77.21-P-0620T Remove/Install Rear Panoramic Glass Roof Seal
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

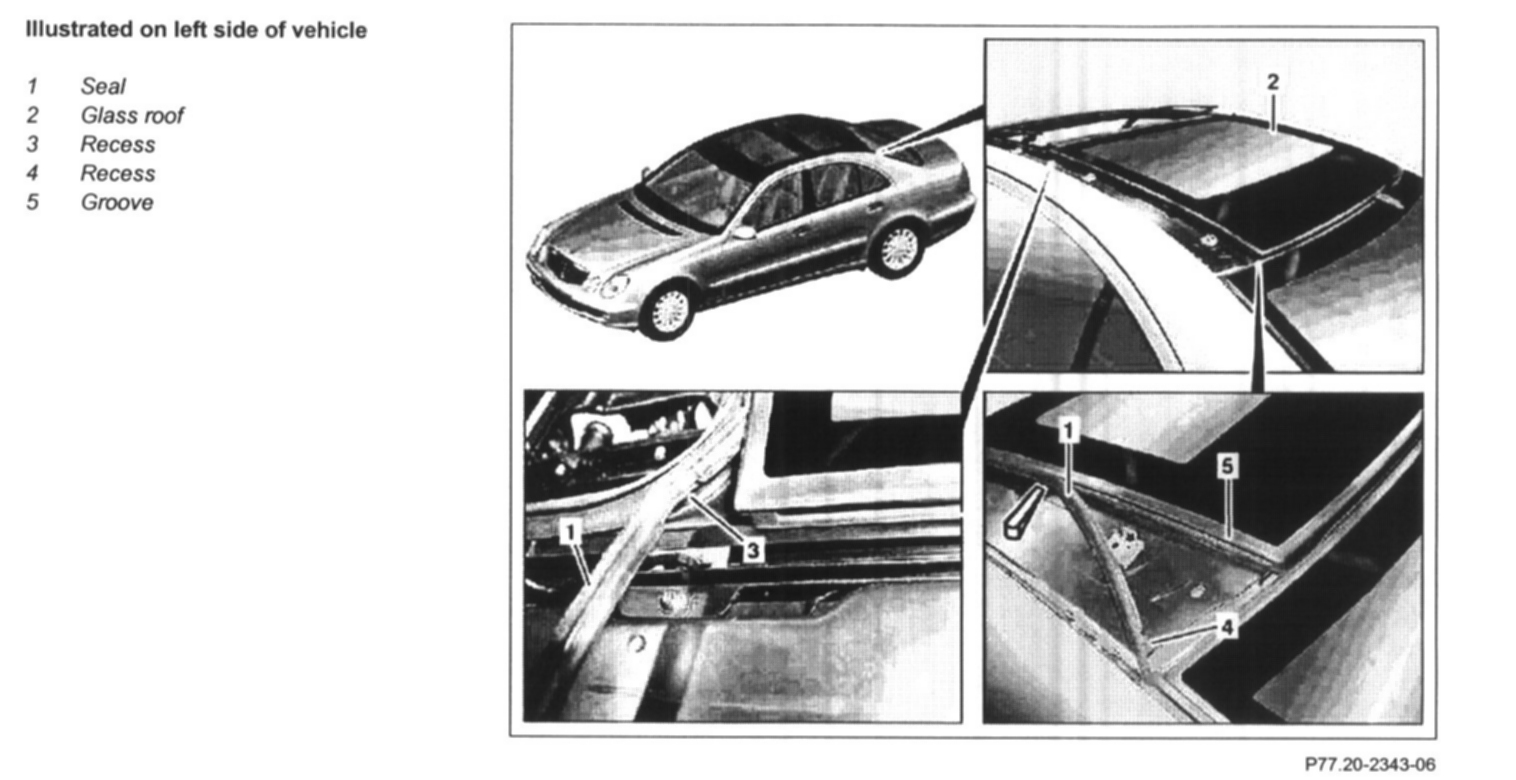

Illustrated On Left Side Of Vehicle:

1 Remove panoramic roof water deflector
2 Remove front panoramic glass roof
3 Pull seal (1) out of groove (5) on rear glass roof (2)
4 Clean groove (5) and lubricate
5 Lubricate clamping profile of seal (1)
6 Insert seal (1) into groove (5)

NOTE: Align recesses (3, 4) of seal (1) in relation to corresponding points on glass roof (2)

See "Special Tools" given below.

7 Install front panoramic glass roof
8 Install panoramic roof wind deflector

Special Tools

Assembly Wedge, P/N # 110 589 03 59 00:
