AR77.20-P-1300T Remove/Install Seal For Sliding/Pop-Up Roof Panel

AR77.20-P-1300T Remove/Install Seal For Sliding/Pop-Up Roof Panel
- with CODE (414) Glass electric tilting/sliding roof

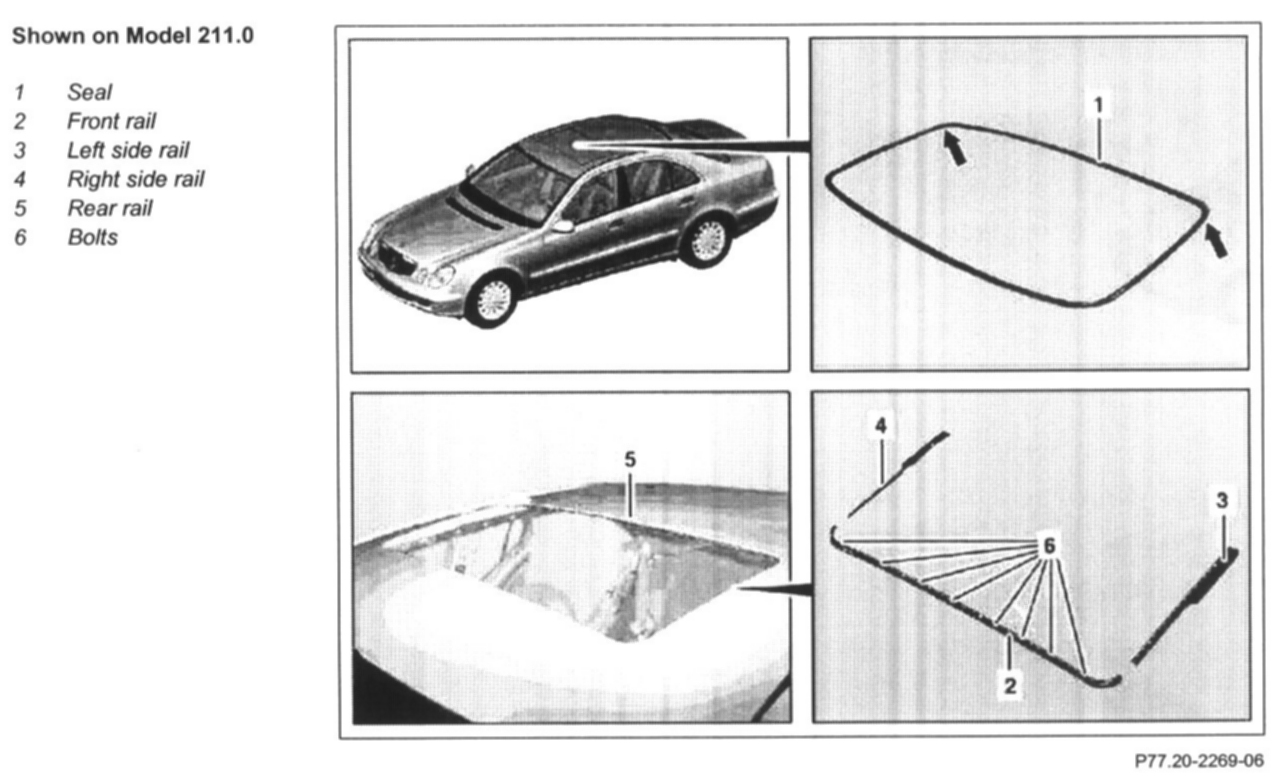

Shown On Model 211.0:

1 Remove wind deflector
2 Slacken bolts (6) of front rail (2)
3 Pull sealing (1) out of front rail (2), left side rail (3), right side rail (4) and rear rail (5)

CAUTION: Carefully pull sealing (1) out of front rail (2), because barbs are attached to the front rail (2) and damage to the sealing (1) could otherwise occur.

4 Press up front rail (2) and tighten bolts (6)
5 Press seal (1) in front rail (2), left side rail (3), right side rail (4) and rear rail (5)

NOTE: Moisten seal (1) with lubricant.Press in seal (1), with the corrugation upward, first at the points marked with arrows.

6 Reinstall wind deflector
