Sound Proofing / Insulation: Service and Repair



AR94.30-P-5300T Remove/Install Bottom Section of Soundproofing

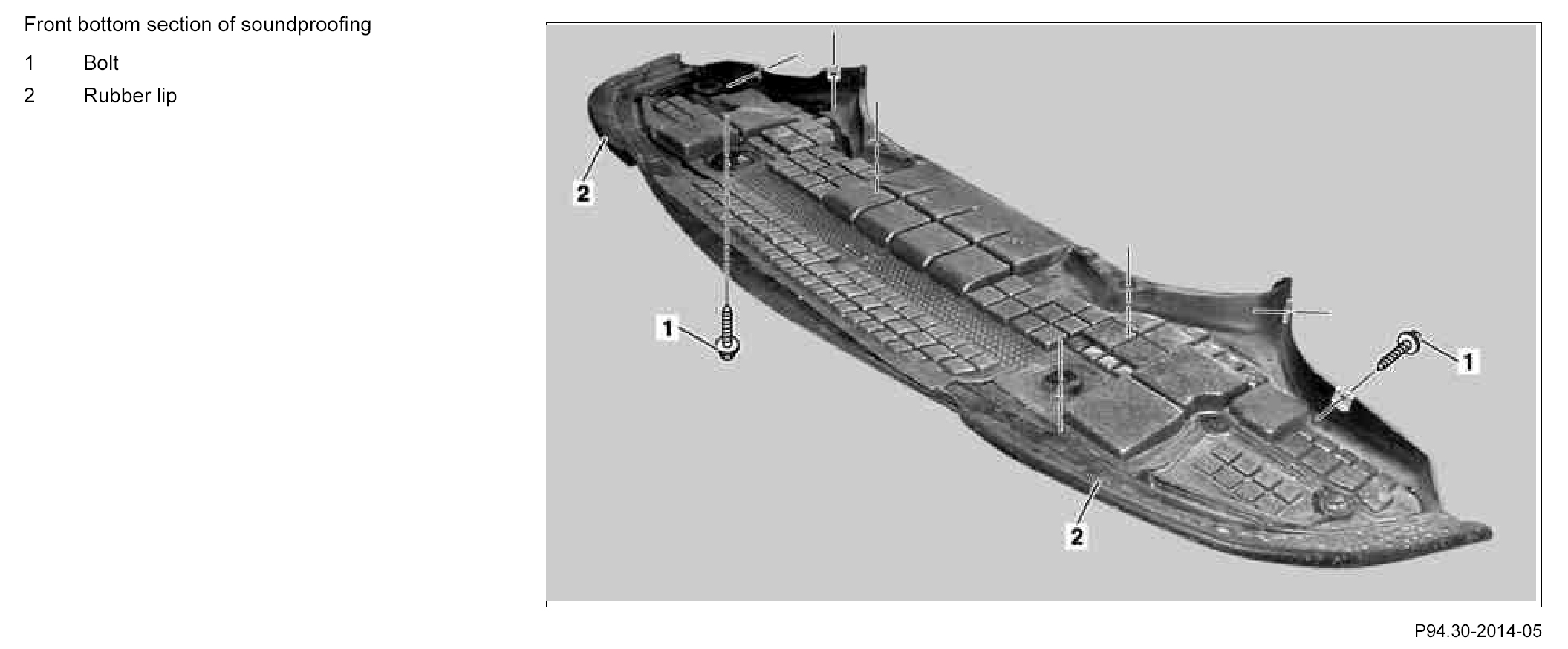

Component Identification:

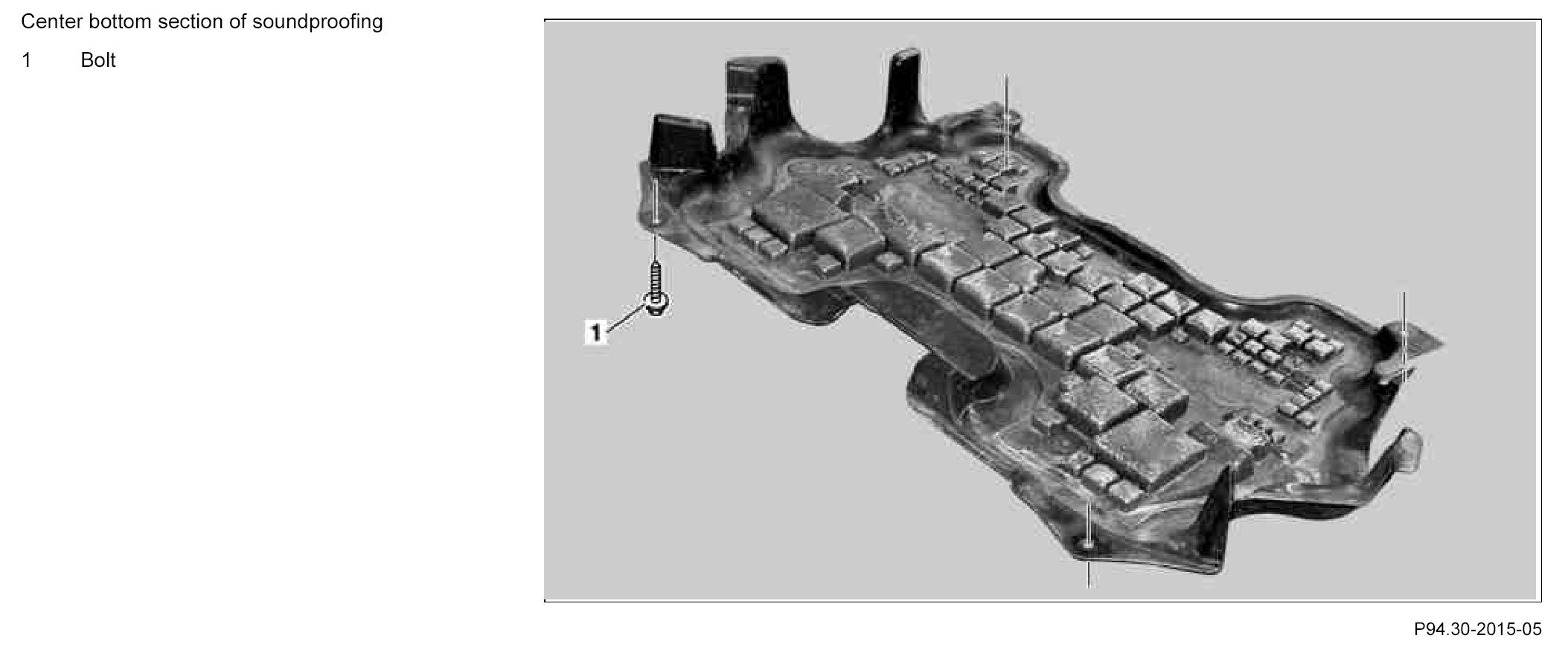

Component Identification:

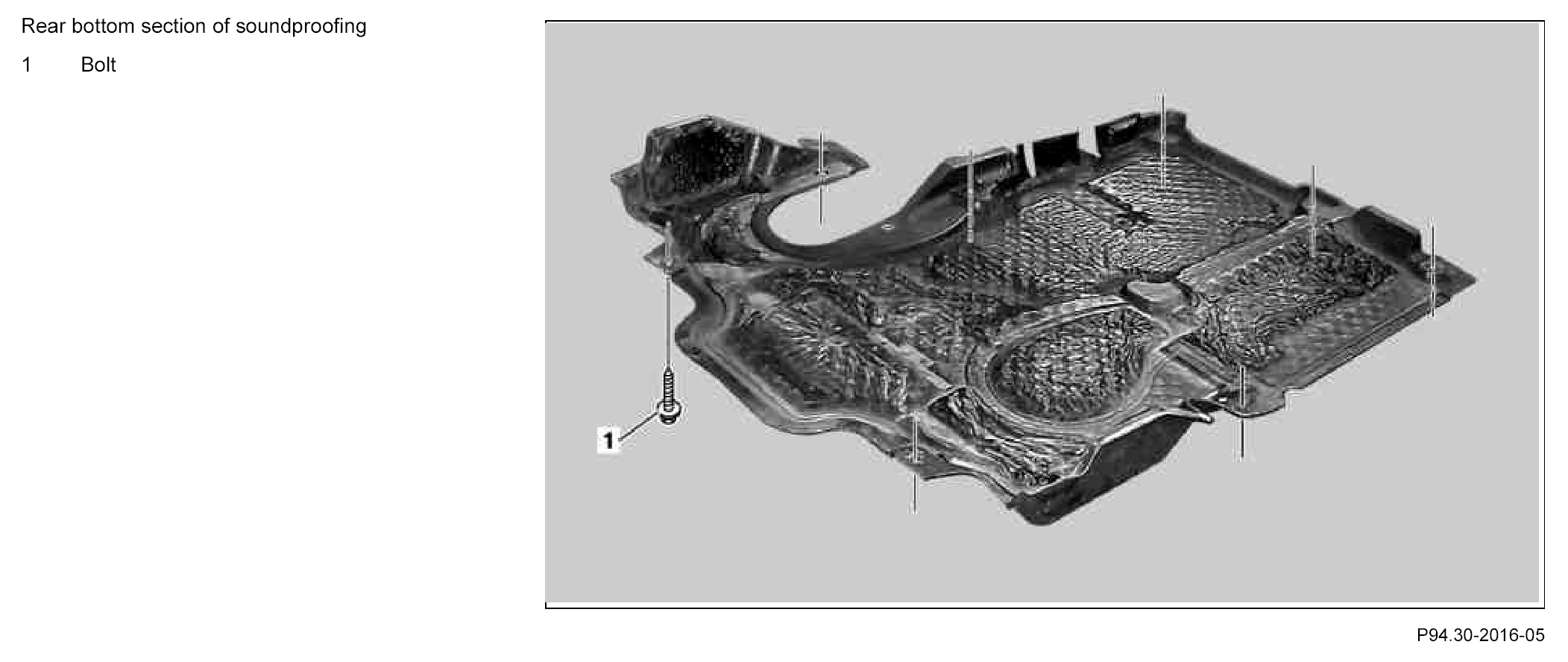

Component Identification:

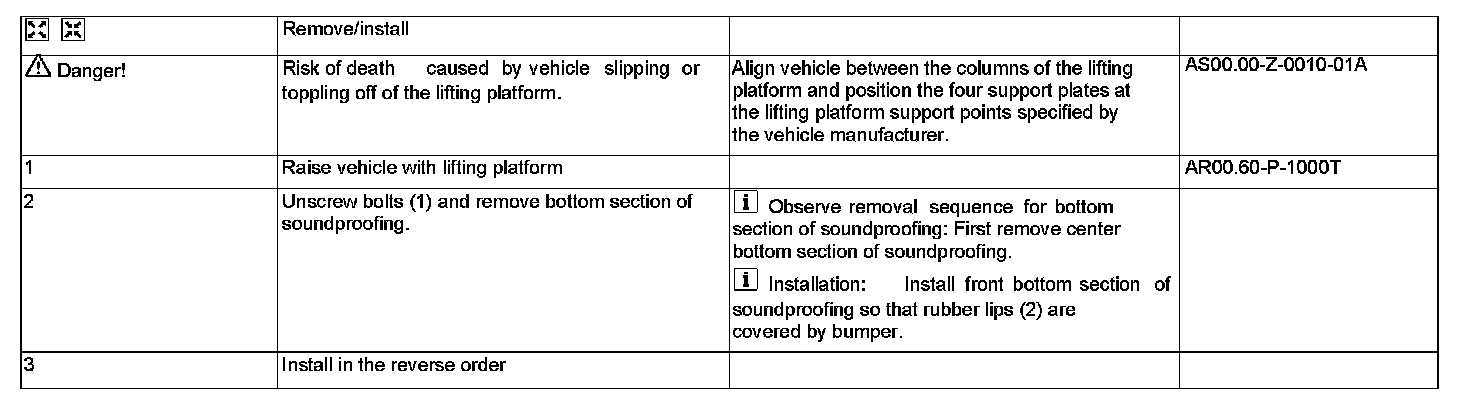

Steps 1 - 3:
