Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Latch Cable >> Service and Repair

Seat Latch Cable: Service and Repair

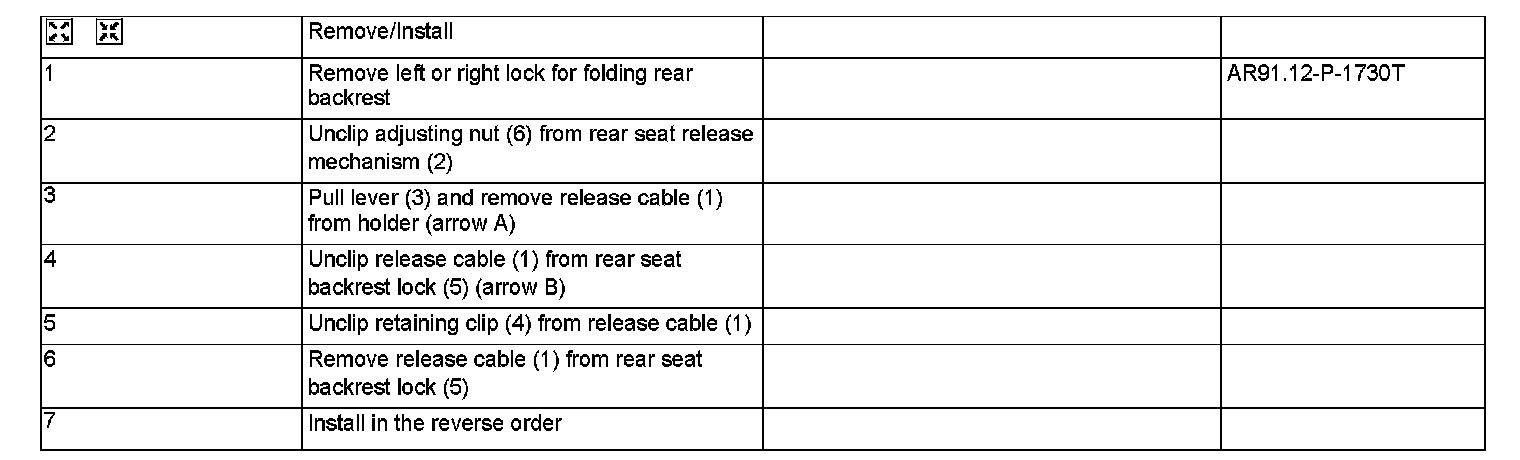

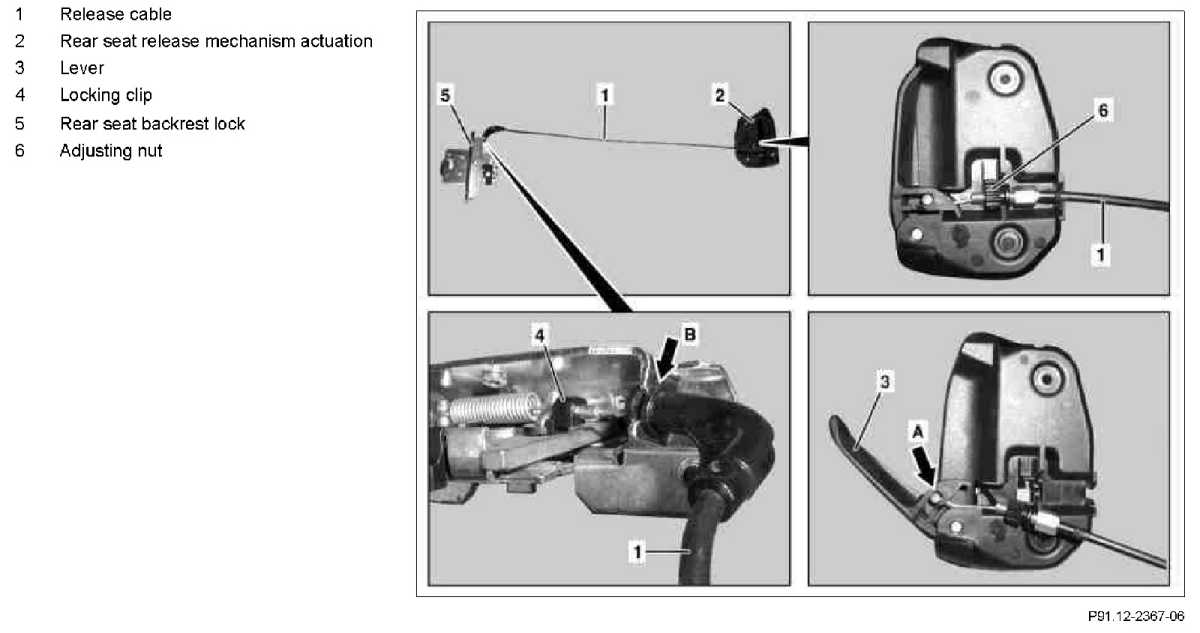

AR91.12-P-1734T Remove/Install Rear Seat Backrest Release Cable
- with CODE (287a) Through-loading feature
