AR91.10-P-3310TC Remove/Install Seat Cushion



AR91.10-P-3310TC Remove/Install Seat Cushion
- with CODE (275) Memory package (driver seat, steering column, mirros)
- with CODE (242) Electrically adjustable front passenger seat with meory
- except CODE (404) Left multicontour seat
- except CODE (405) Right multicontour seat
- except CODE (433) Left dynamic seat, incl. multicontour seat
- except CODE (434) Right dynamic seat, incl. multicontour seat

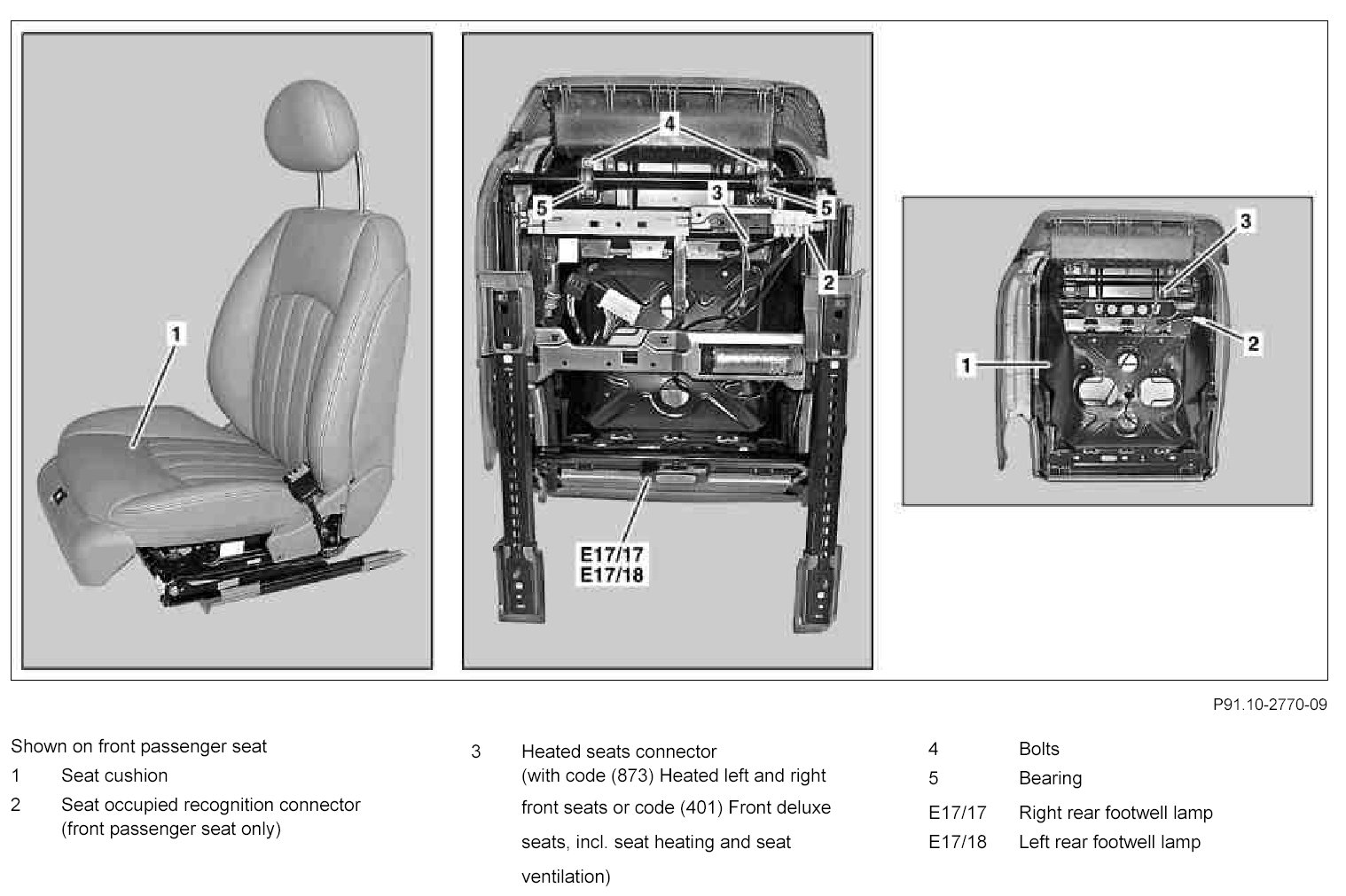

Component Identification:

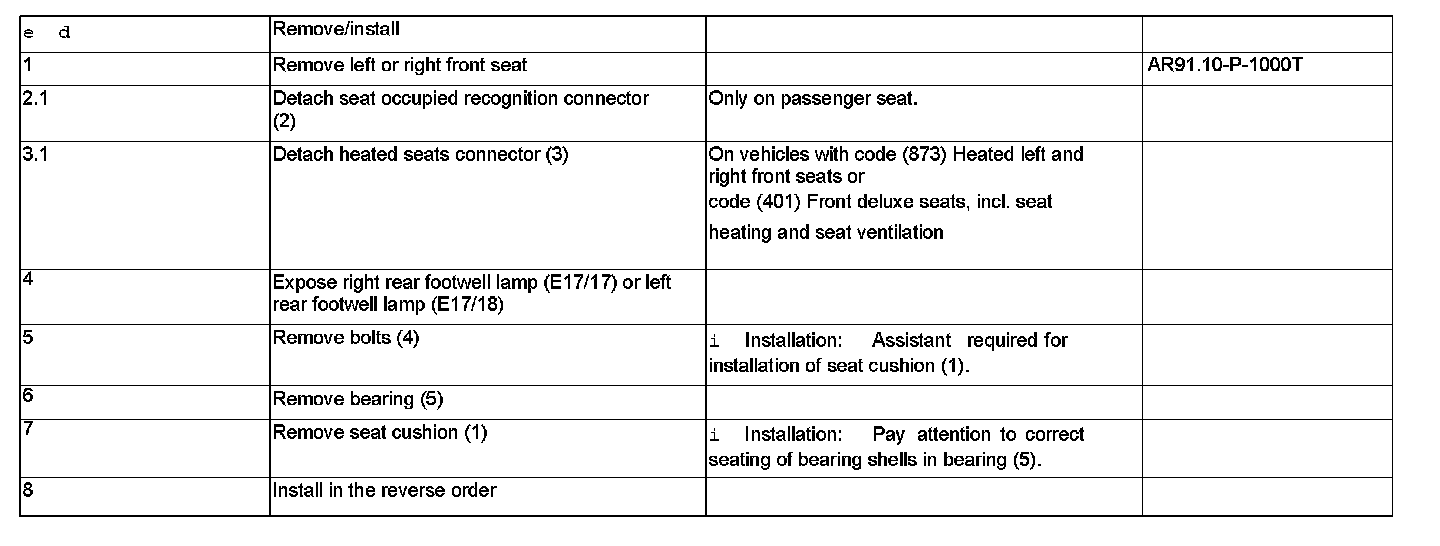

Steps 1 - 8:
