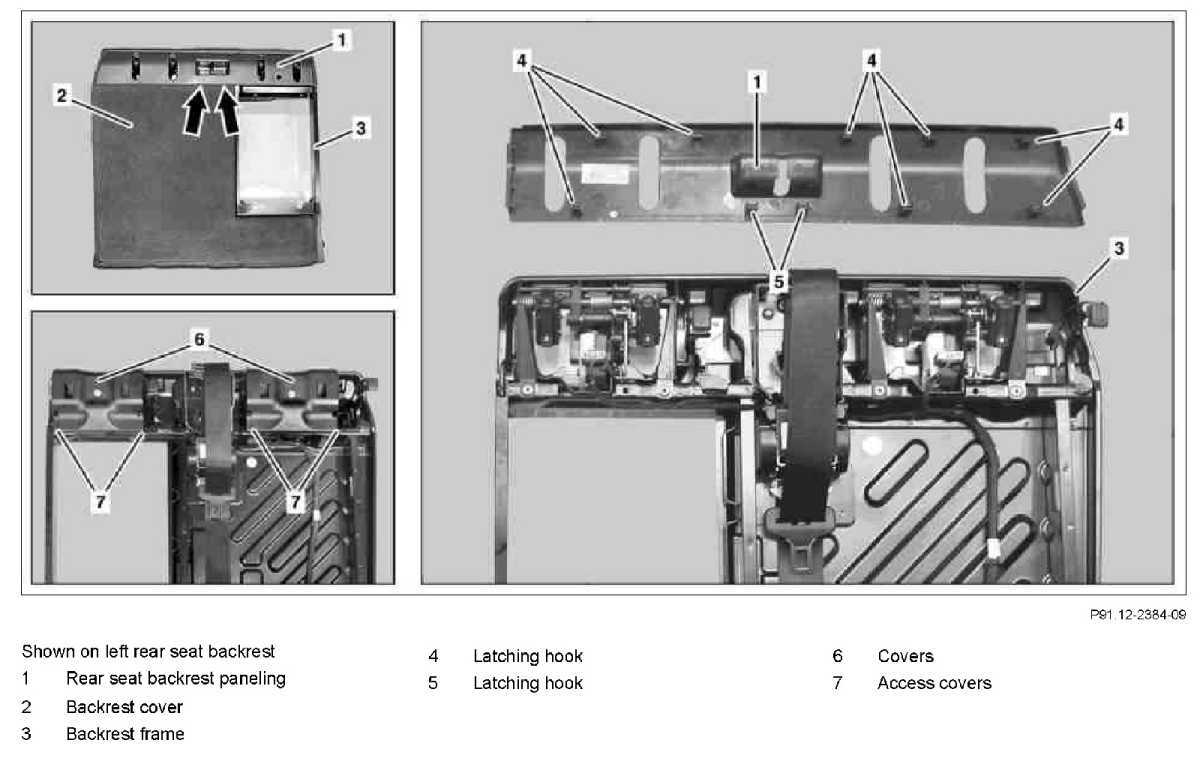

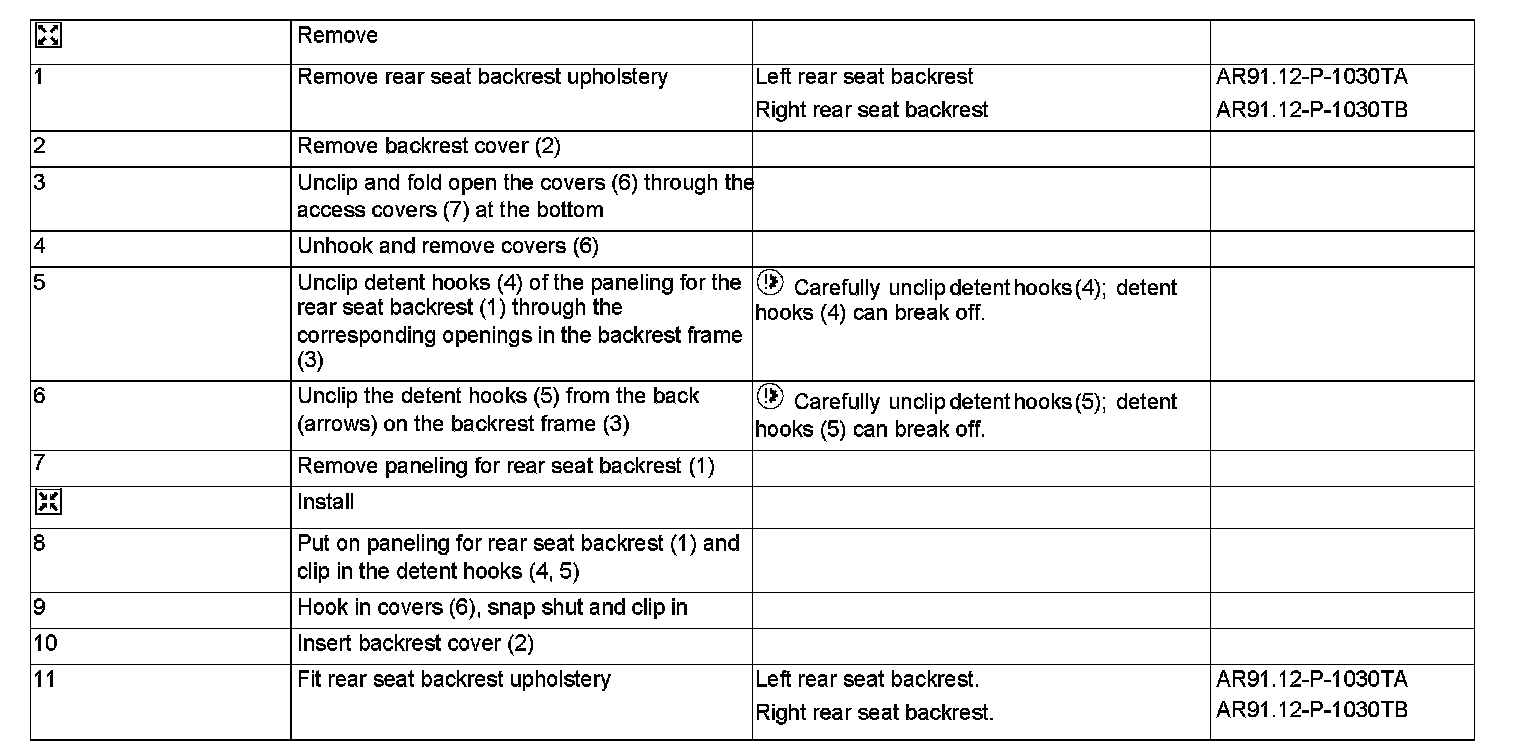

AR91.12-P-1131T Remove/Install Paneling of Rear Seat Backrest



AR91.12-P-1131T Remove/Install Paneling of Rear Seat Backrest
- with CODE (287a) Through-loading feature
