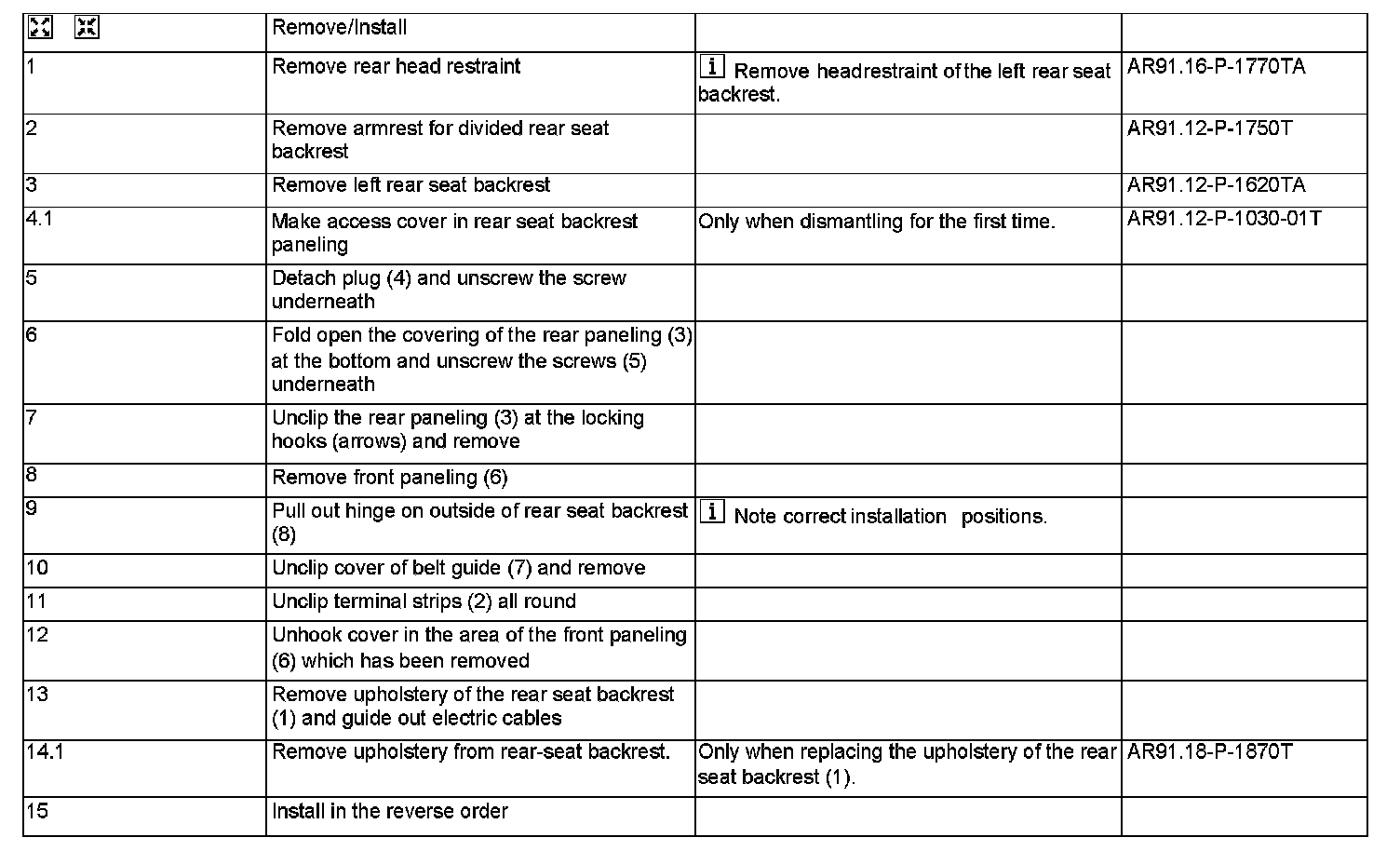

AR91.12-P-1030TA Remove/Install Upholstery For Left Rear Seat Backrest



AR91.12-P-1030TA Remove/Install Upholstery For Left Rear Seat Backrest
- Left rear seat backrest
- with CODE (287a) Through-loading feature
