AR91.10-P-1910TB Remove/Install Front Seat Backrest Seat-Back Lining



AR91.10-P-1910TB Remove/Install Front Seat Backrest Seat-Back Lining
- except CODE (842) Folding front passenger backrest (usable as table)

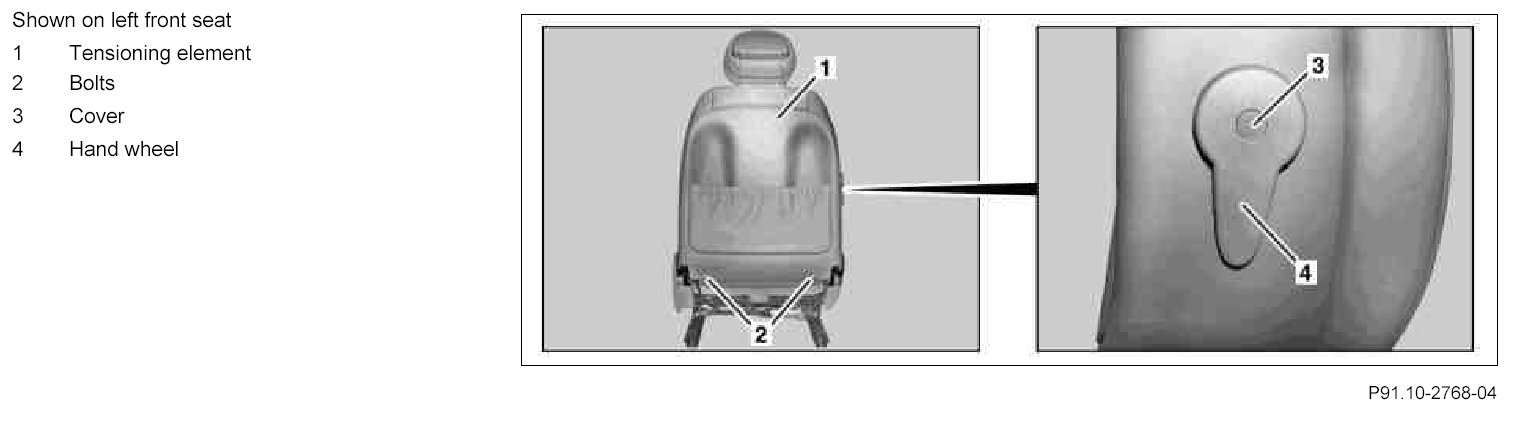

Component Identification:

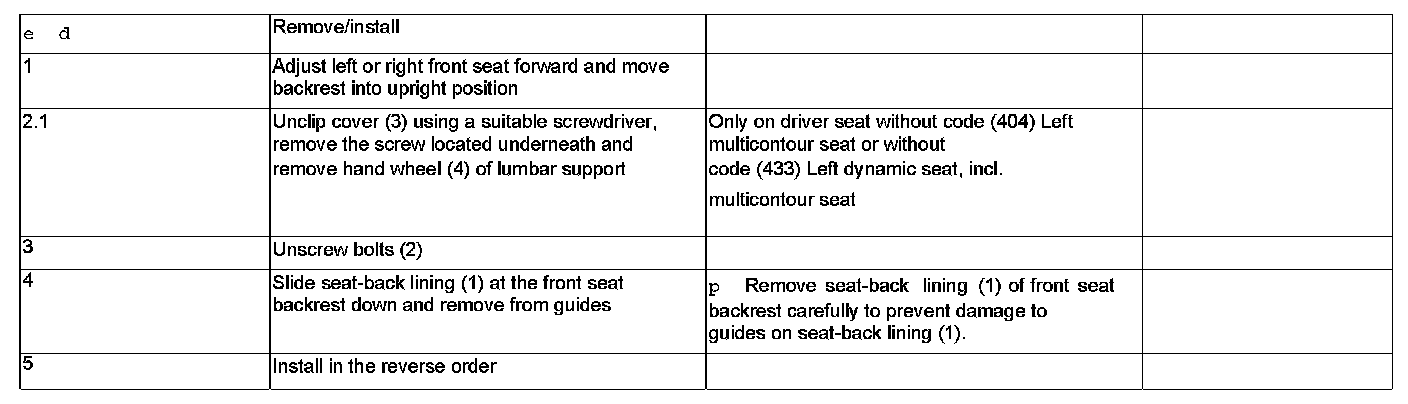

Steps 1 - 5:
