AR91.10-P-3331TA Remove/Install Front Seat Backrest
Frame

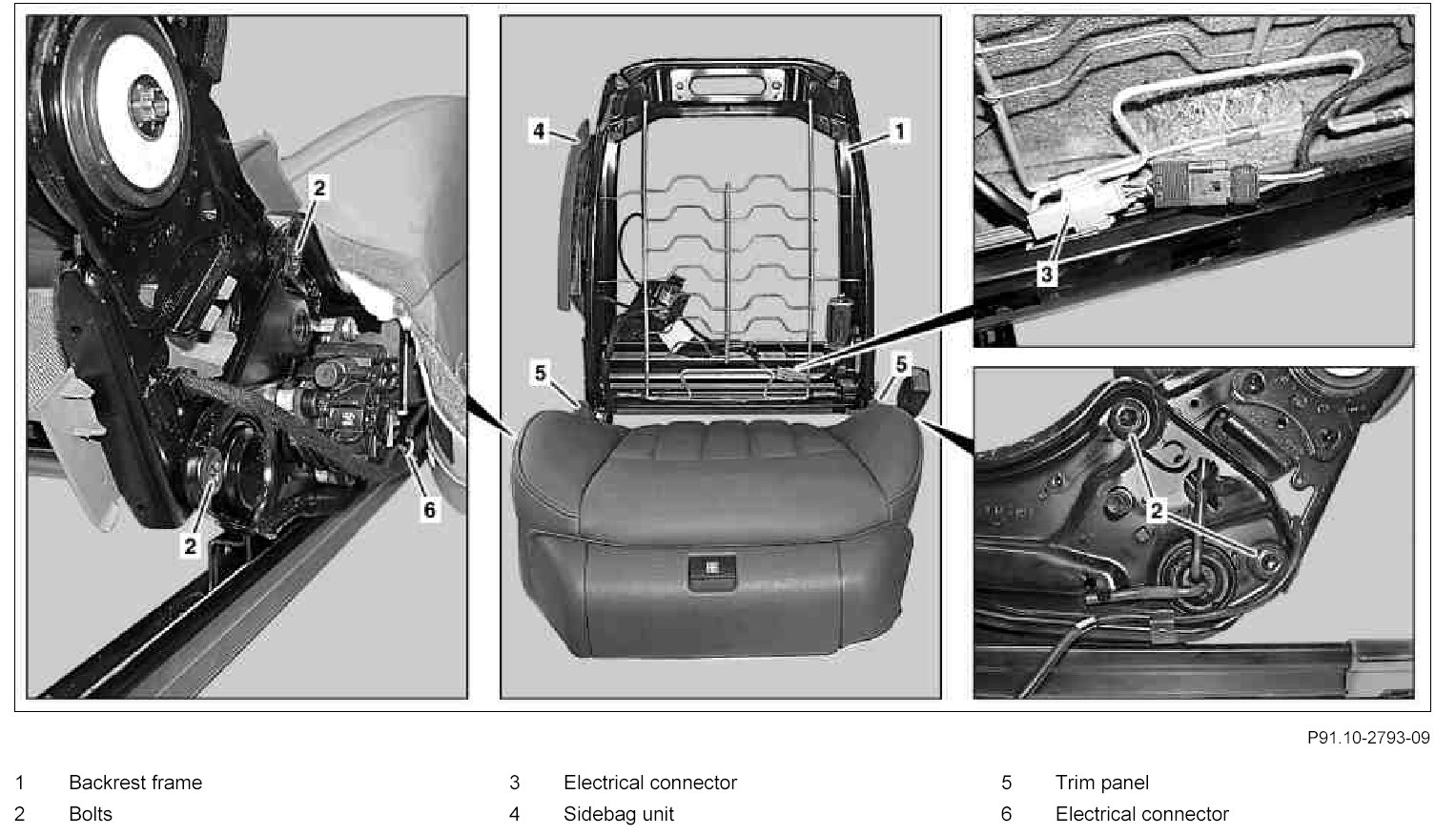

Component Identification:
Component Identification:

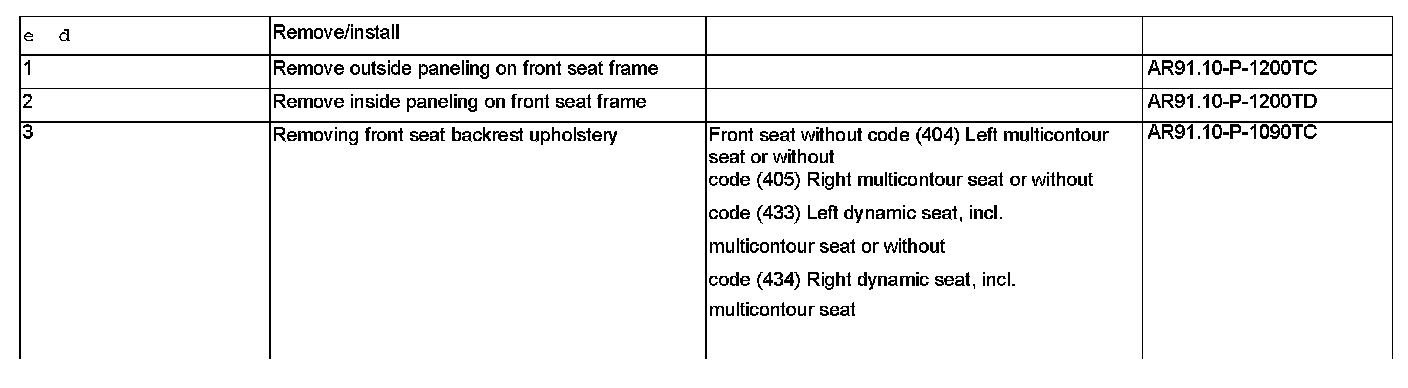

Steps 1 - 3:

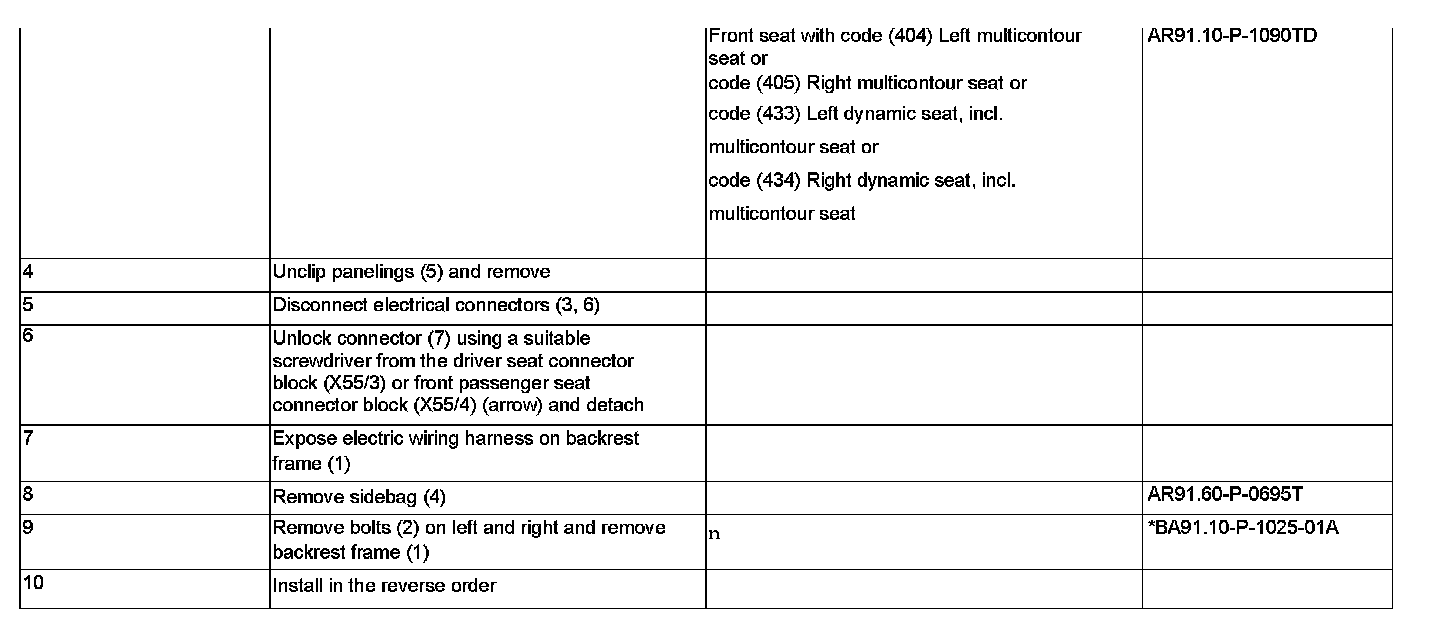

Steps 4 - 10:
Front Seats:
