Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Body and Frame >> Seats >> Head Restraint System >> Head Rest >> Service and Repair >> Removal and Replacement >> AR91.16-P-1780T Remove/Install Rear Head Restraint Mechanical System

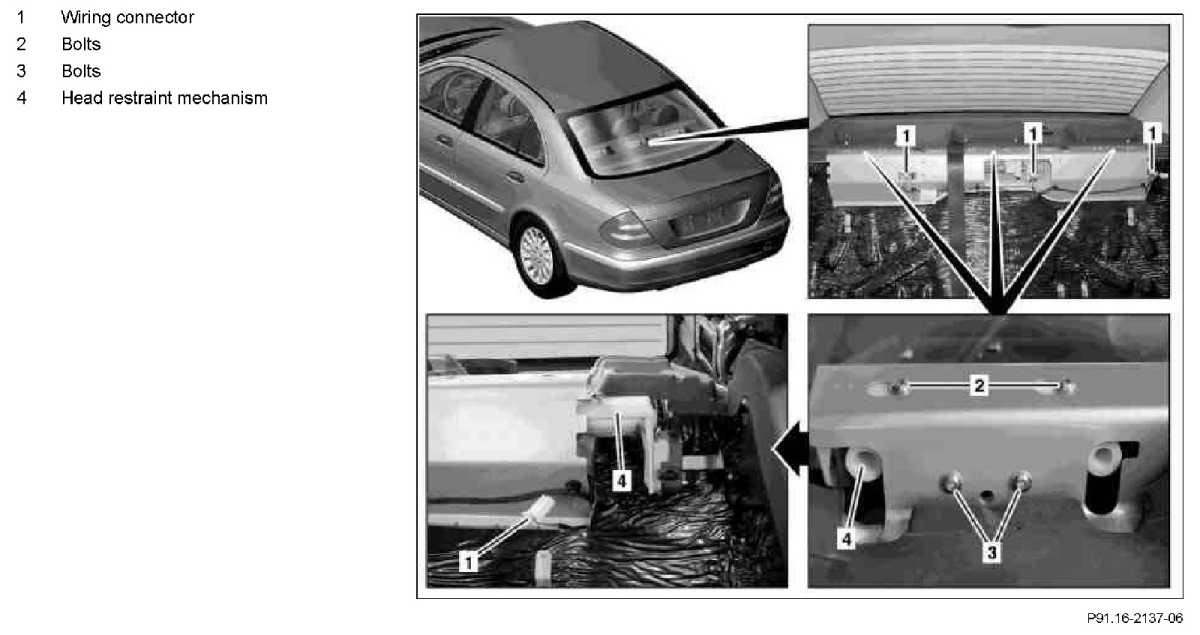

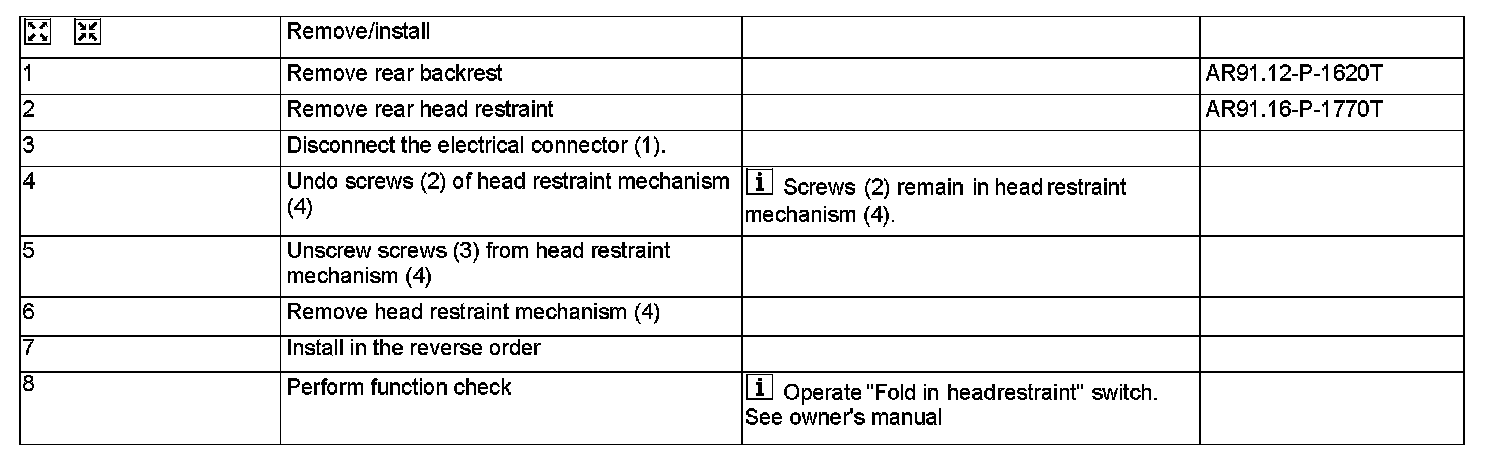

AR91.16-P-1780T Remove/Install Rear Head Restraint Mechanical System



AR91.16-P-1780T Remove/Install Rear Head Restraint Mechanical System
- except CODE (287a) Through-loading feature
