AR91.16-P-0040T Remove/Install Head Restraint At Front Seat



AR91.16-P-0040T Remove/Install Head Restraint At Front Seat
- with CODE (242) Electrically adjustable front passenger seat with memory
- with CODE (275) Memory package (driver seat, steering column, mirrors)

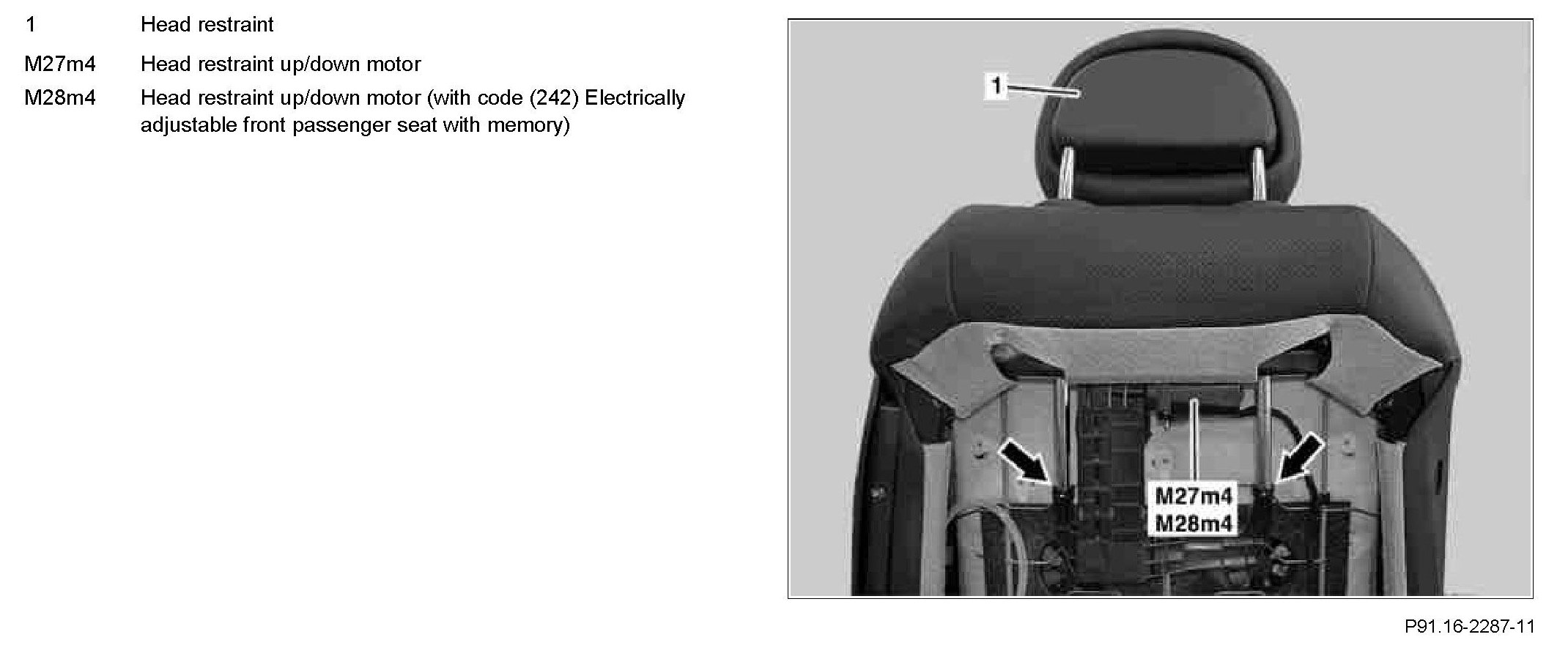

Component Identification:

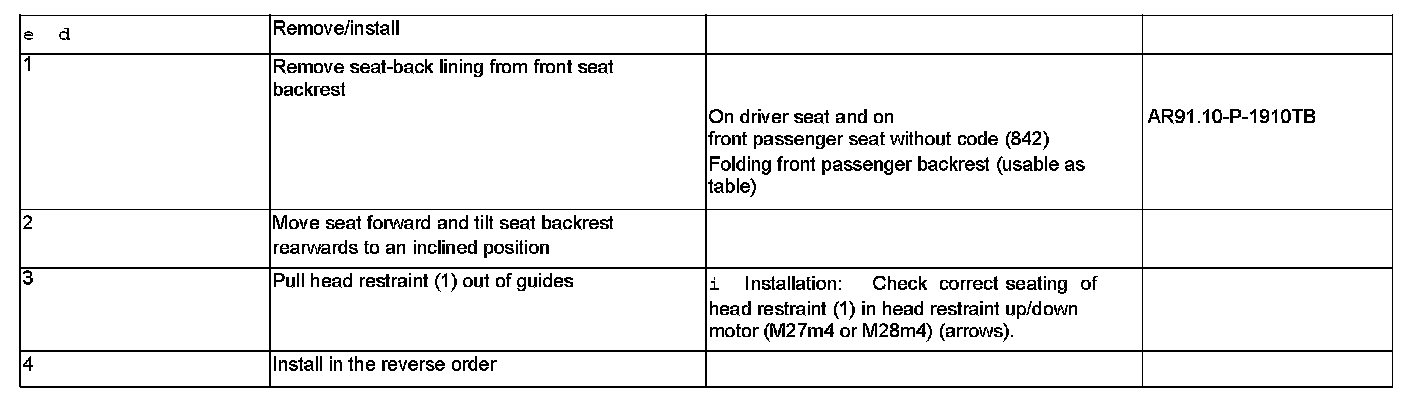

Step 1 - 4:
