Wiring Diagram Seat Heating and Seat Ventilation Control Module PE91.30-U-2102DA

Wiring Diagram Of Seat Heating And Seat Ventilation Control Module PE91.30-U-2102DA
- with CODE (401) Front deluxe seats, incl. seat heating and seat ventilation
- with CODE (872) Electrically heated left and right rear seats
- with CODE (873) Heated left and right front seats

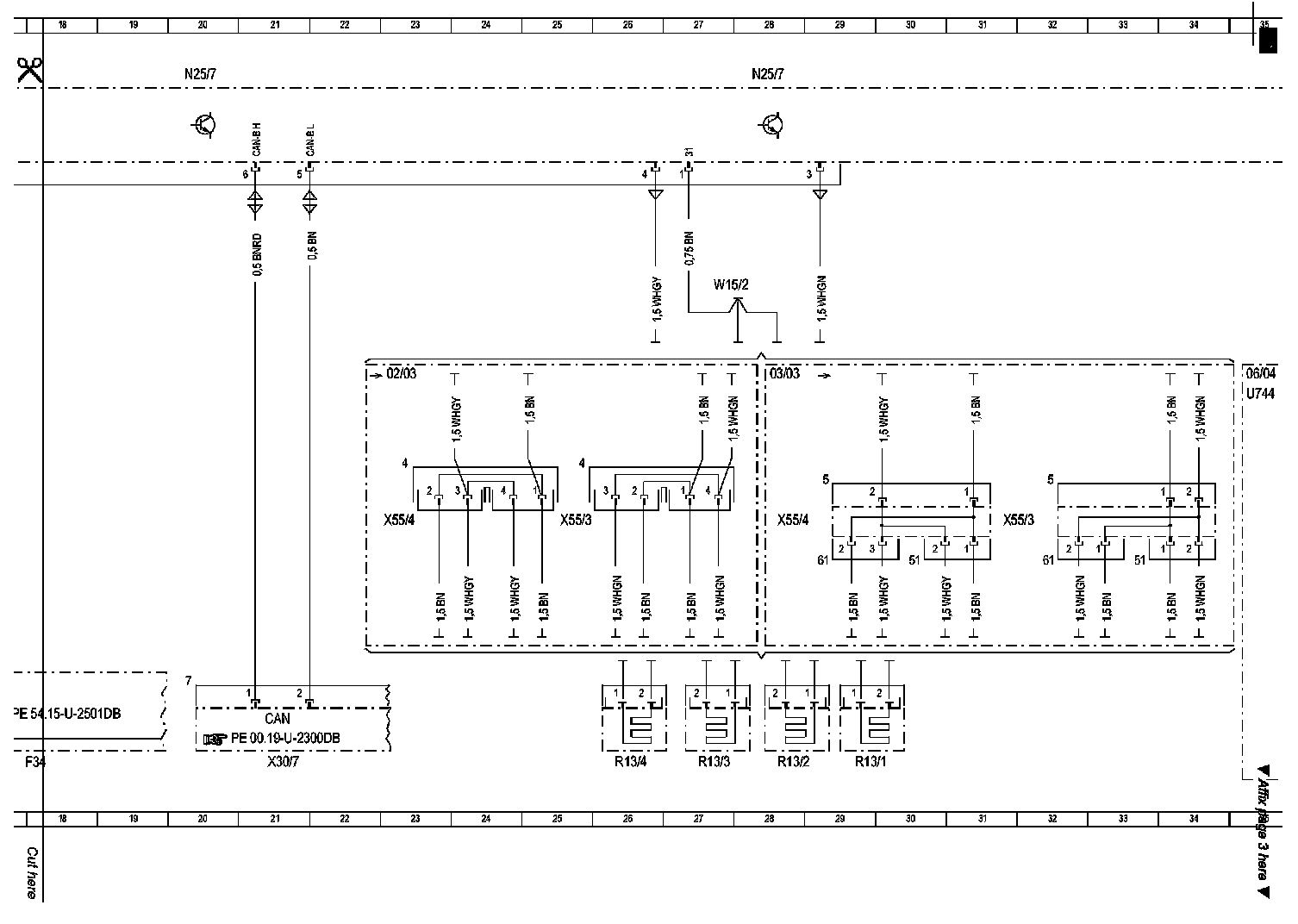

Wiring Diagram (Part 1):

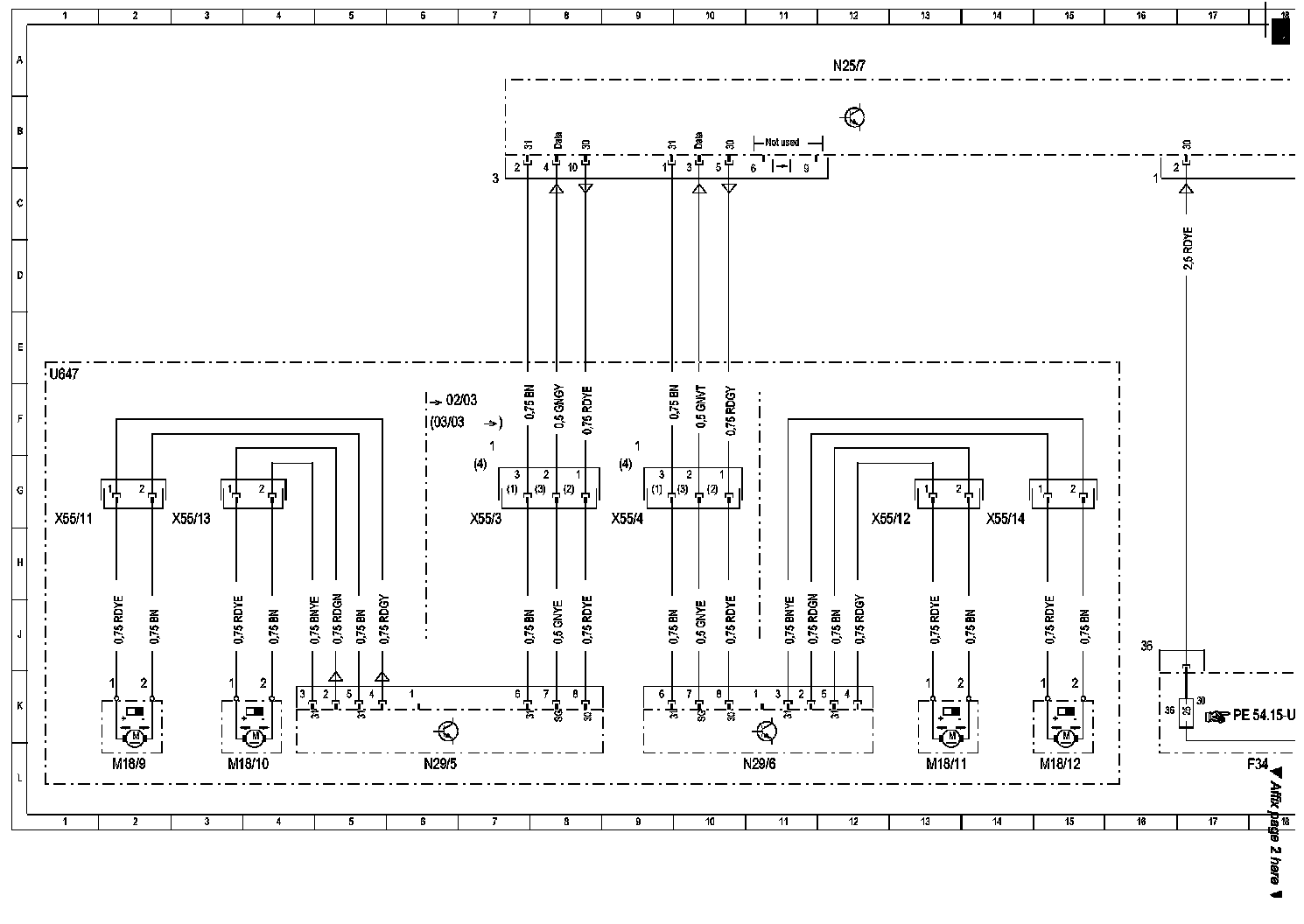

Wiring Diagram (Part 2):

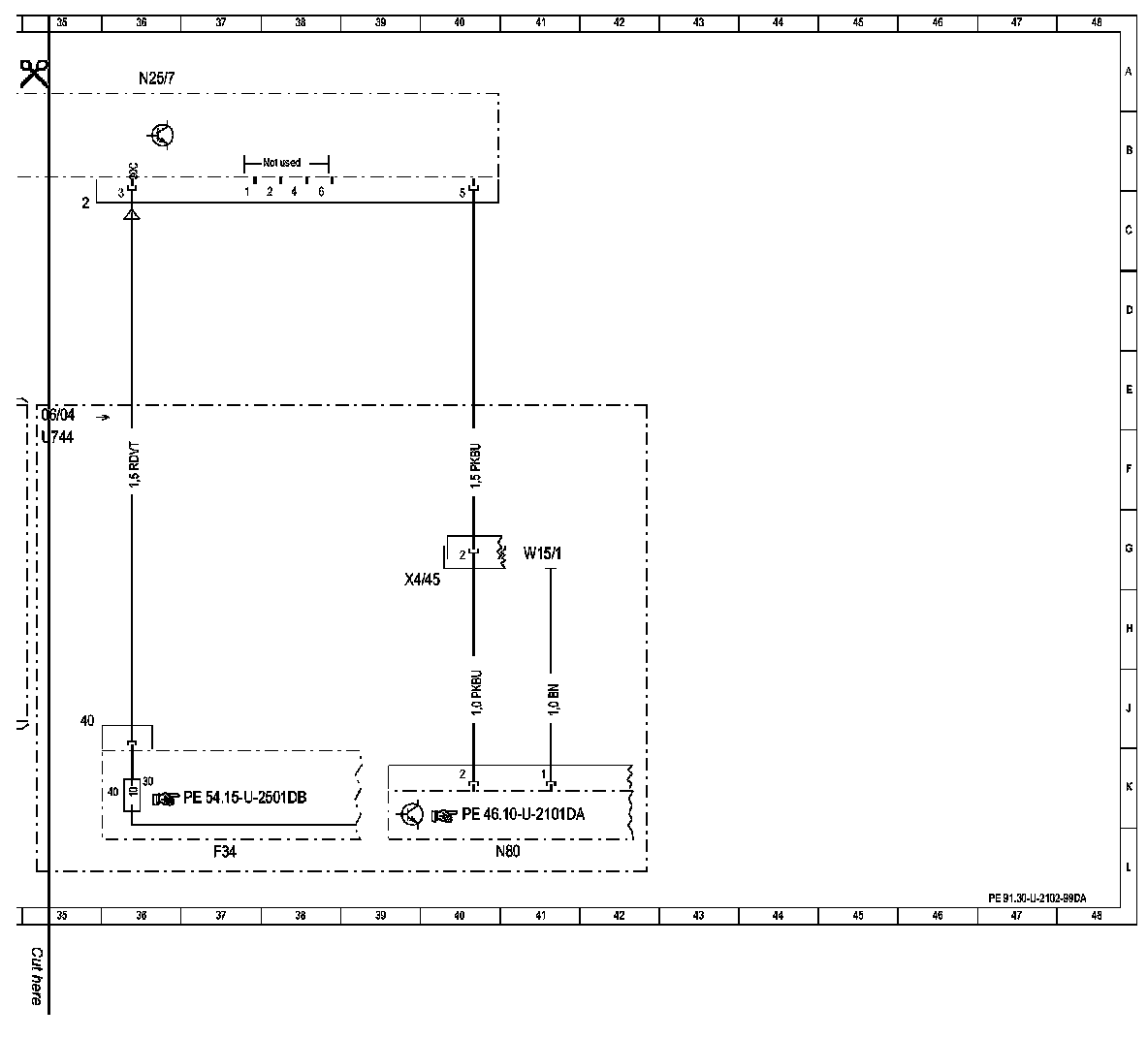

Wiring Diagram (Part 3):

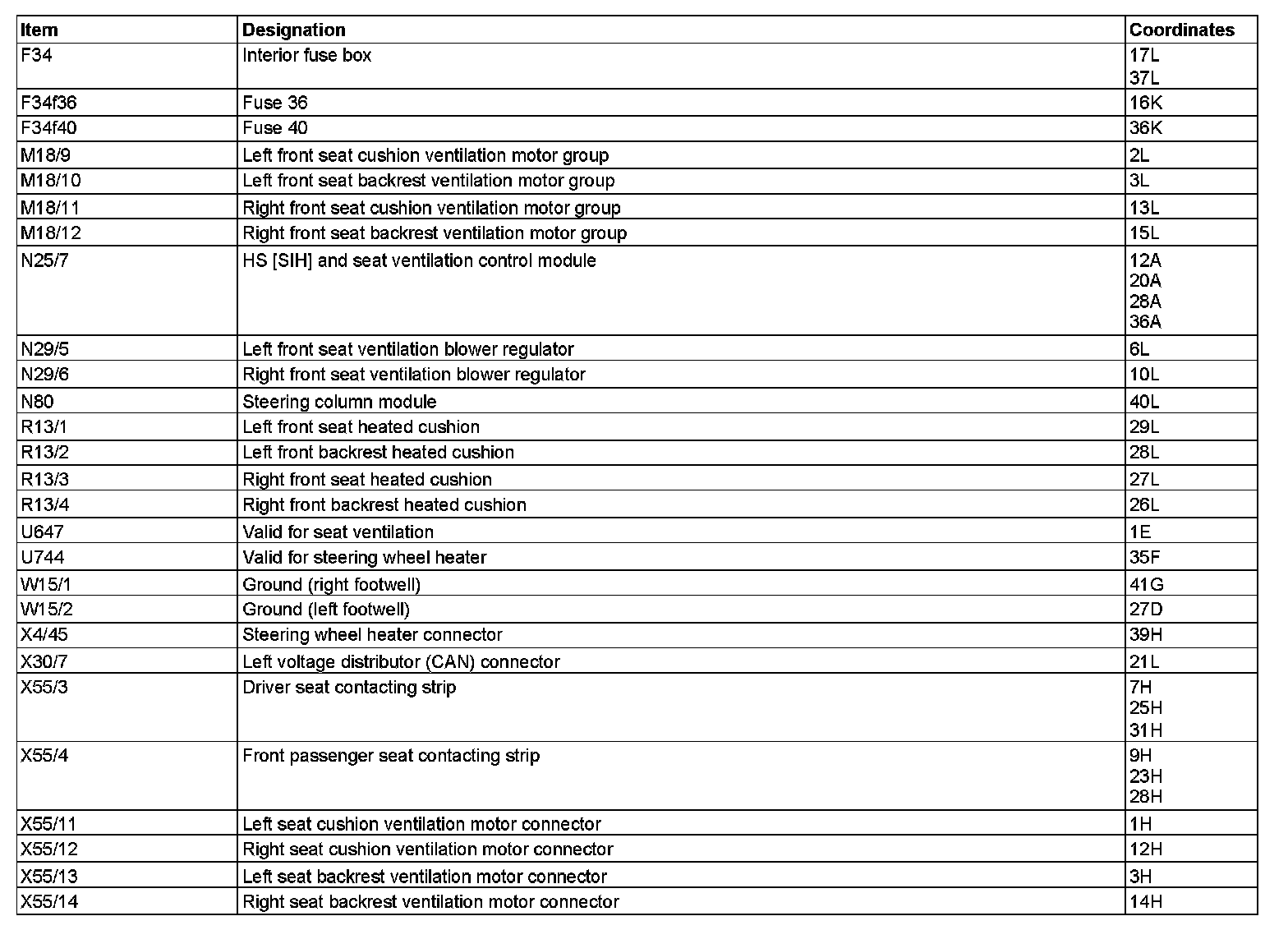

Component Description/Coordinates, F34 To X55/14:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
