Wiring Diagram Left Front Seat Control Module PE91.29-U-2101DB

Wiring Diagram Left Front Seat Control Module PE91.29-U-2101DB

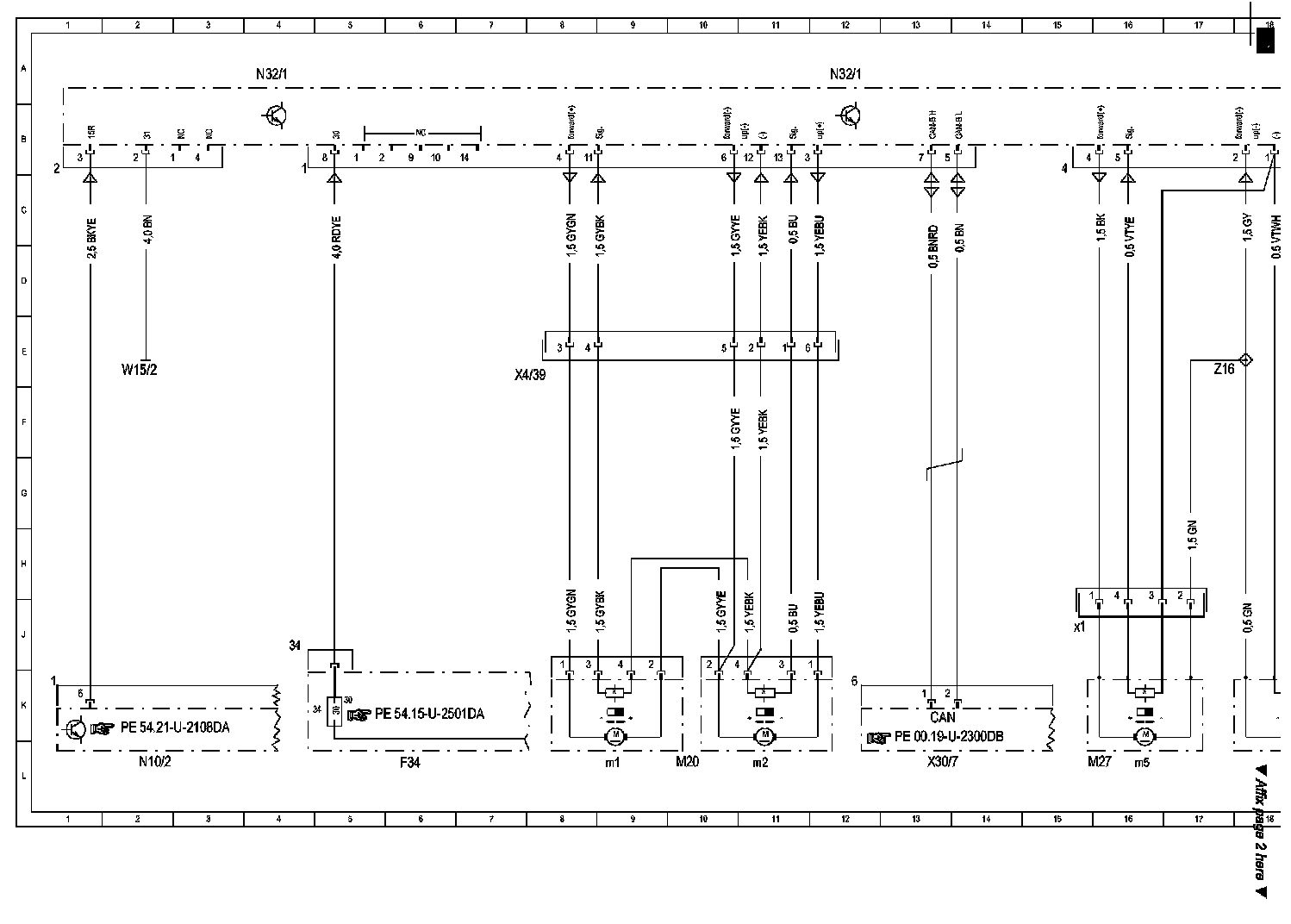

Wiring Diagram (Part 1):

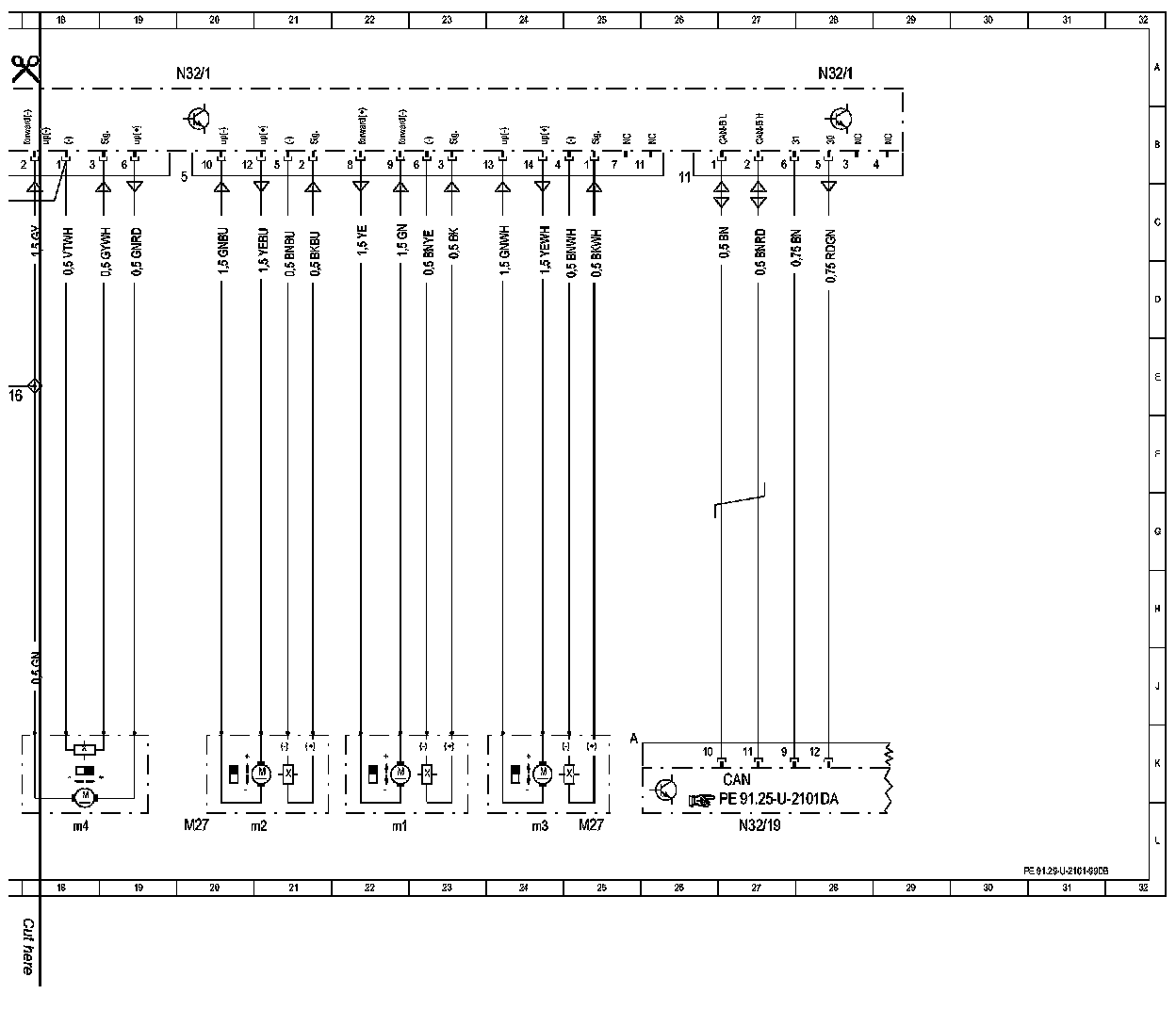

Wiring Diagram (Part 2):

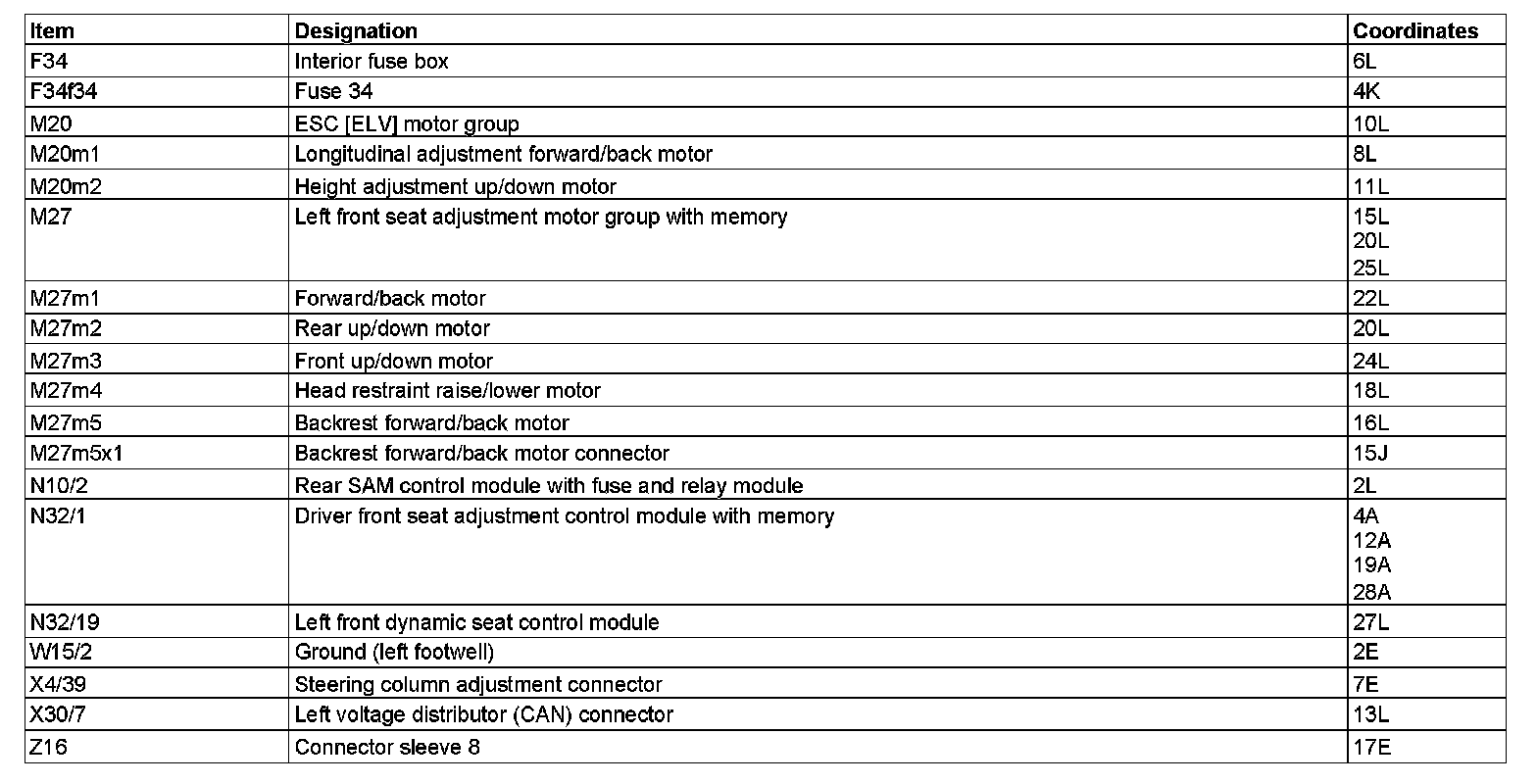

Component Description/Coordinates, F34 To Z16:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
