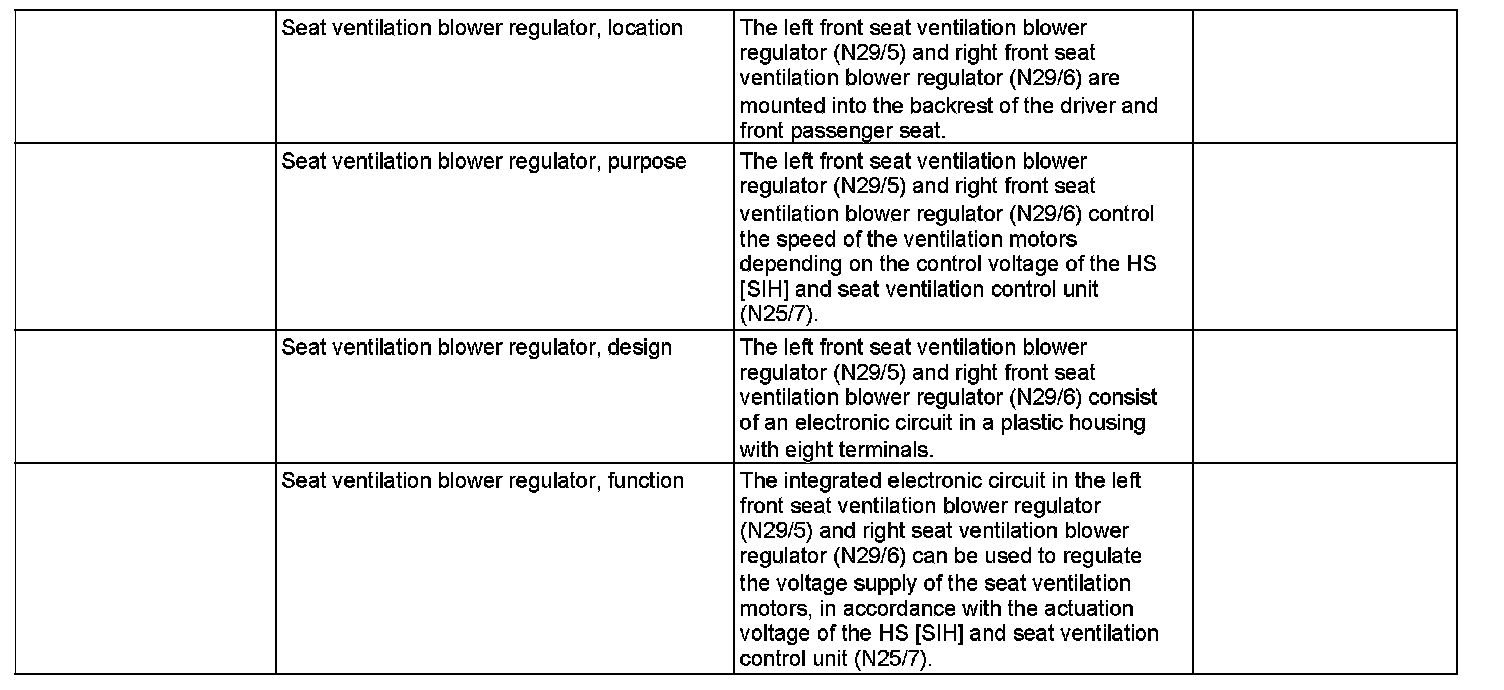

GF91.30-P-3102T Seat Ventilation Blower Regulator, Location/Task/Design/Function



GF91.30-P-3102T Seat Ventilation Blower Regulator, Location/Task/Design/Function
- with CODE (401a) Front luxury seat, including heated seat and seat ventilation

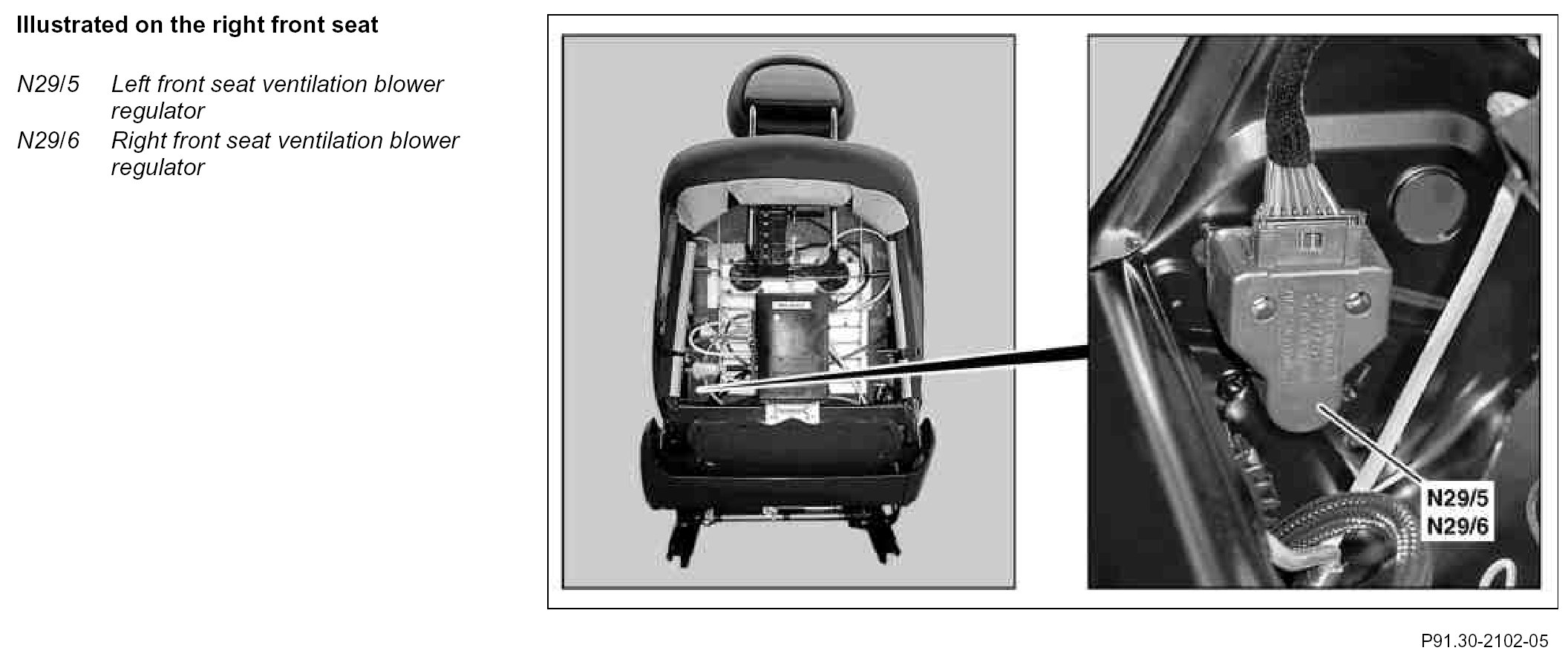

Component Identification:
