GF91.30-P-0003-02T Heated Seats (SIH) Location of Components



GF91.30-P-0003-02T Heated Seats (SIH) Location Of Components
- with CODE (401) Front deluxe seats, including seat heating and seat ventilation
- with CODE (872) Electrically heated left and right rear seats
- with CODE (873) Heated left and right front seats

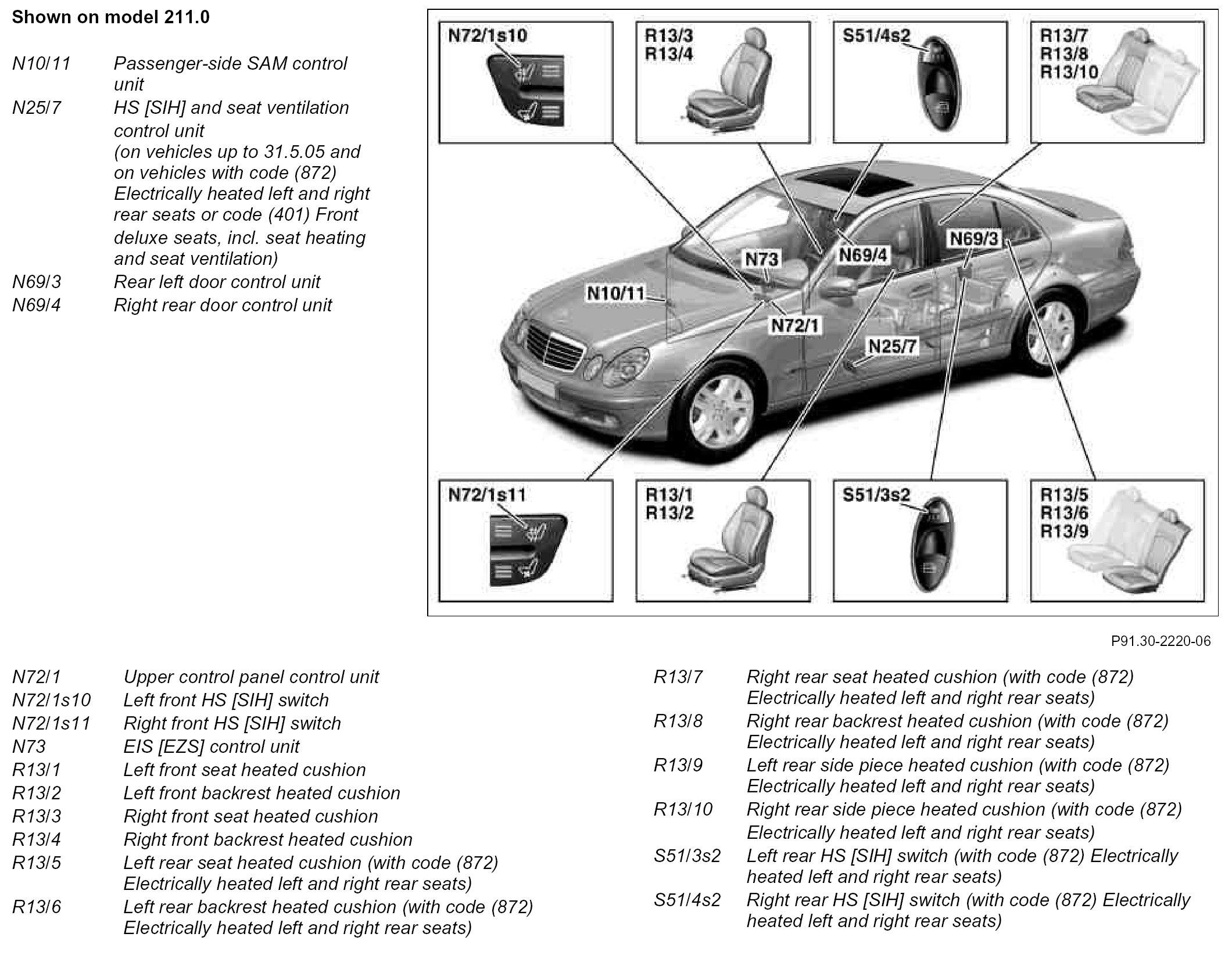

Component Identification:
