AR77.21-P-0110T Remove/Install Panoramic Roof Wind Deflector Coupling Arm

AR77.21-P-0110T Remove/Install Panoramic Roof Wind Deflector Coupling Arm
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

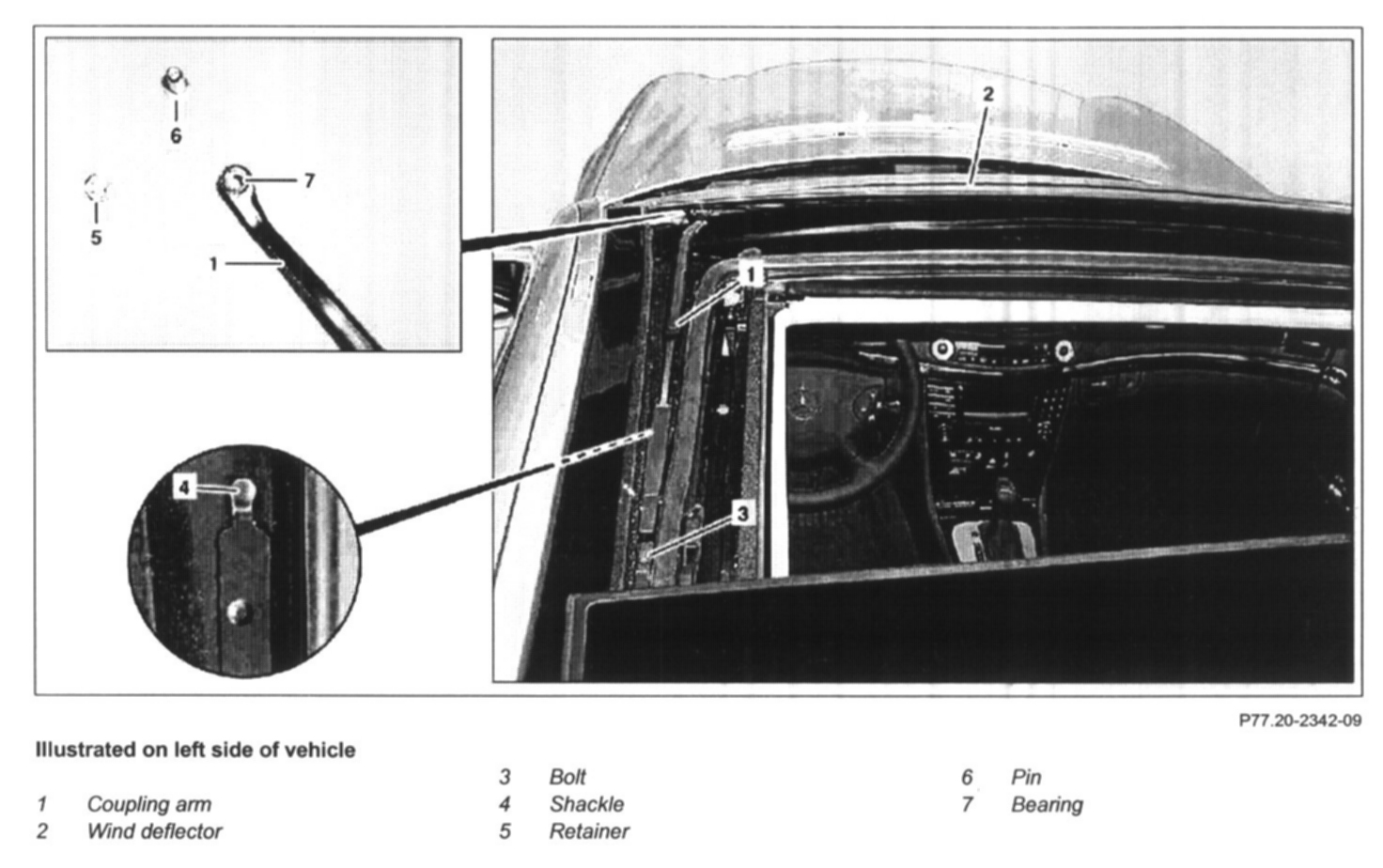

Illustrated On Left Side Of Vehicle:

DANGER:
- Risk of injury to fingers being jammed or squeezed when removing and Installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

1 Open panoramic roof
2 Cover guide rail in the area of the coupling arm (1) with a clean cloth
3 Pull out retainer (5) and press out bolt (6)

NOTE: Note correct installation position.

4 Unscrew screw (3).
5 Push coupling arm (1) toward front out of the shackle (4) underneath and remove
6 Insert coupling arm (1) from the front into the shackle (4)
7 Screw in bolt (3)

NOTE: Do not yet tighten.

8 Insert bolt (6) and push fuse (5) into the groove at the bolt (6)

NOTE: Installation: position must be noted. The bolt (6) in the bearing (7) must not have a noticeable play, replace bearing (7), bolt (6) and retainer (5) if necessary.

9 Open and close wind deflector (2) several times by hand
10 Tighten bolt (3)
11 Close panoramic roof
