AR77.20-P-2500T Remove/Install Wind Deflector

AR77.20-P-2500T Remove/Install Wind Deflector
- with CODE (414) Power glass tilting/sliding roof

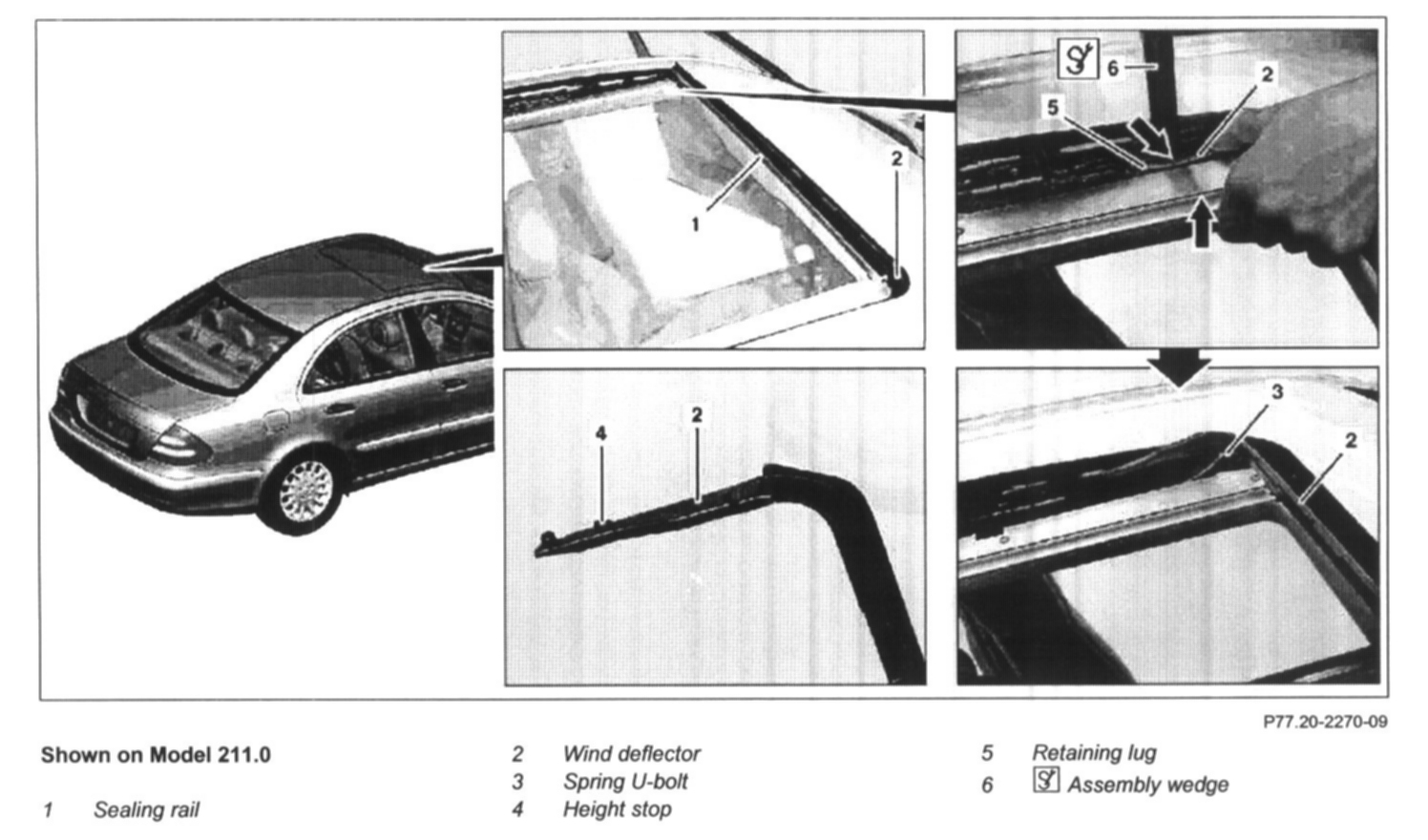

Shown On Model 211.0:

DANGER:
- Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

1 Open sliding/pop-up roof
2 Remove sealing rail (1)

NOTE: Lift out with a suitable tool to the top.

3 Slightly press wind deflector (2) on one downward until the height stop (4) is exposed
4 Pry off wind deflector (2) with assembly wedge (6) to vehicle center

CAUTION: Do not break off securing lug (5), otherwise the wind deflector (2) slips out of the guide.

5 Remove wind deflector (2)

NOTE
- Lift wind deflector (2) slightly upward and unhook.
- Installation: Check spring U-bolt (3) on both sides for correct seating.

6 Install in the reverse order
7 Perform teach-in procedure for sliding roof obstruction sensor


Special Tools

Assembly Wedge, P/N # 110 589 03 59 00:
