AR77.20-P-2450T Remove/Install Wind Deflector Guide

AR77.20-P-2450T Remove/Install Wind Deflector Guide
- with CODE (414) Power glass tilting/sliding roof

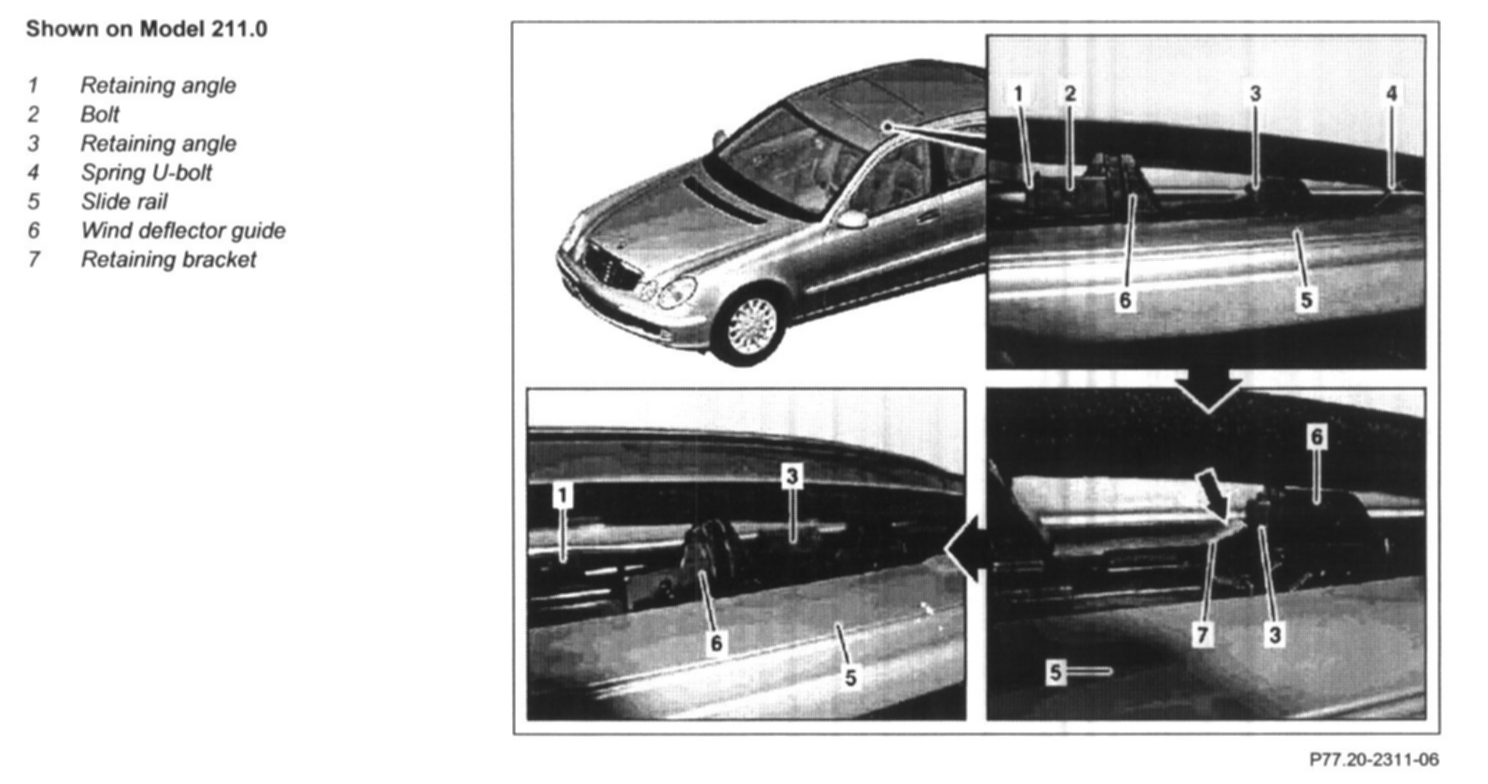

Shown On Model 211.0:

1 Remove wind deflector
2 Remove spring U-bolt (4)
3 Unscrew bolt (2)
4 Press down circlip (7) (arrow) and push wind deflector guide (6) toward front

NOTE: Until the wind deflector guide (6) can be removed from the retaining brackets (1,3).

See "Special Tools" given below.

5 Remove wind deflector guide (6)

NOTE: Swing wind deflector guide (6), parallel to the slide rail (5), toward top of vehicle center.

6 Install in the reverse order

Special Tools

Assembly Wedge, P/N # 110 589 03 59 00:
