AR77.21-P-0630T Remove/Install Rear Panoramic Glass Roof Paneling

AR77.21-P-0630T Remove/Install Rear Panoramic Glass Roof Paneling
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof












1 Open sun shade

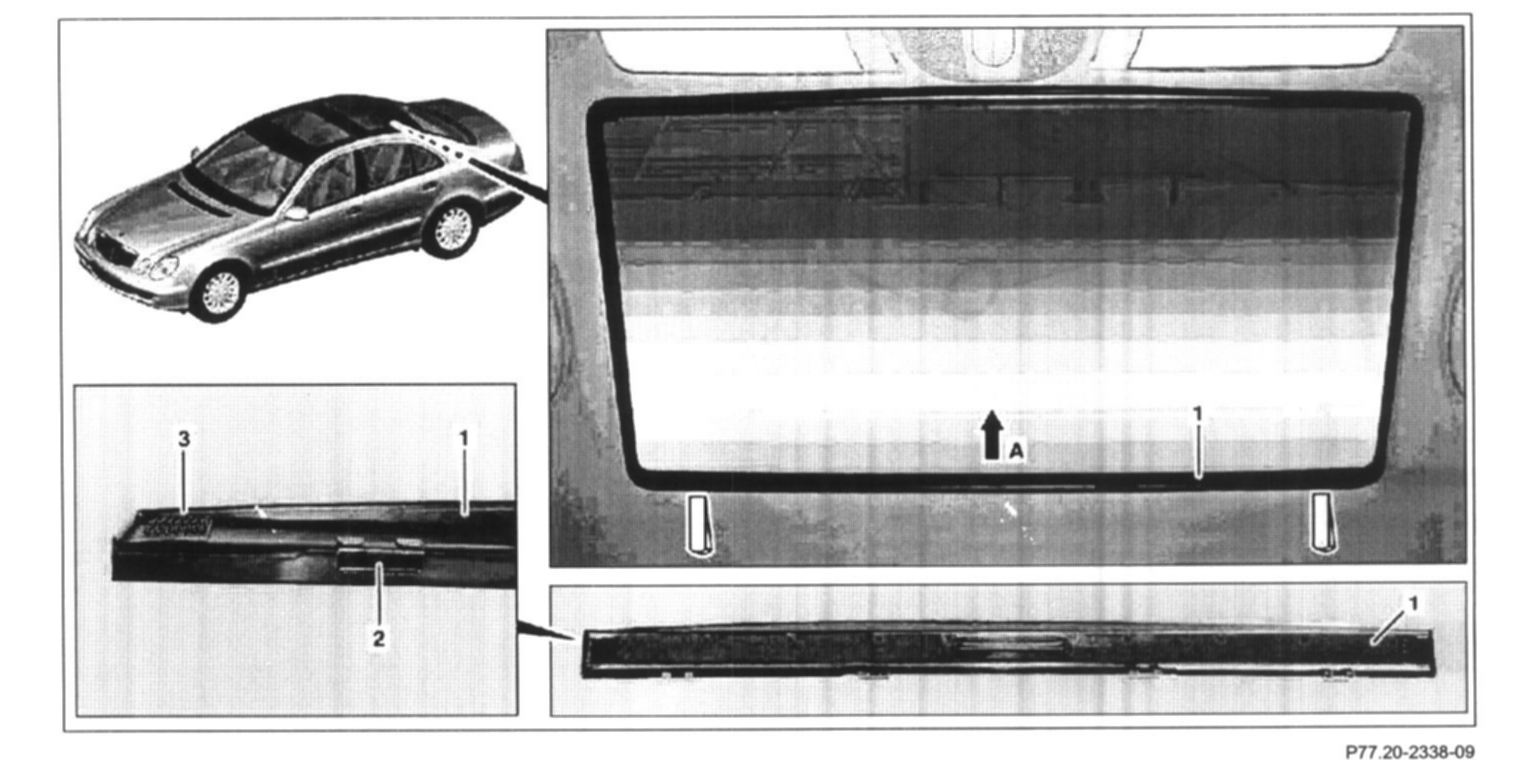

2 Loosen Velcro strips (3) of rear paneling (1) on left and right side
3 Unclip clips (2) from rear paneling (1) with assembly wedge in direction of arrow (A) and remove rear paneling (1)

See "Special Tools" given below.

4 Unclip sun shade damping strip (4) from sun shade couplings (6) on left and right side of vehicle simultaneously by turning in direction of arrow (B).
5 Move out sun shade clamping strip (4)
6 Move sun shade couplings (6) toward front on left and right side of vehicle
7 Unclip side mount of front paneling (5) on left and right side of vehicle with assembly wedge in direction of arrow (C)

See "Special Tools" given below.

8 Unclip front paneling (5) in direction of arrow (D) with assembly wedge and remove.

See "Special Tools" given below.

9 Install in the reverse order

Special Tools

Assembly Wedge, P/N # 110 589 03 59 00:
