AR77.21-P-1100T Remove/Install Sliding Roof Lining Drive Unit



AR77.21-P-1100T Remove/Install Sliding Roof Lining Drive Unit
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

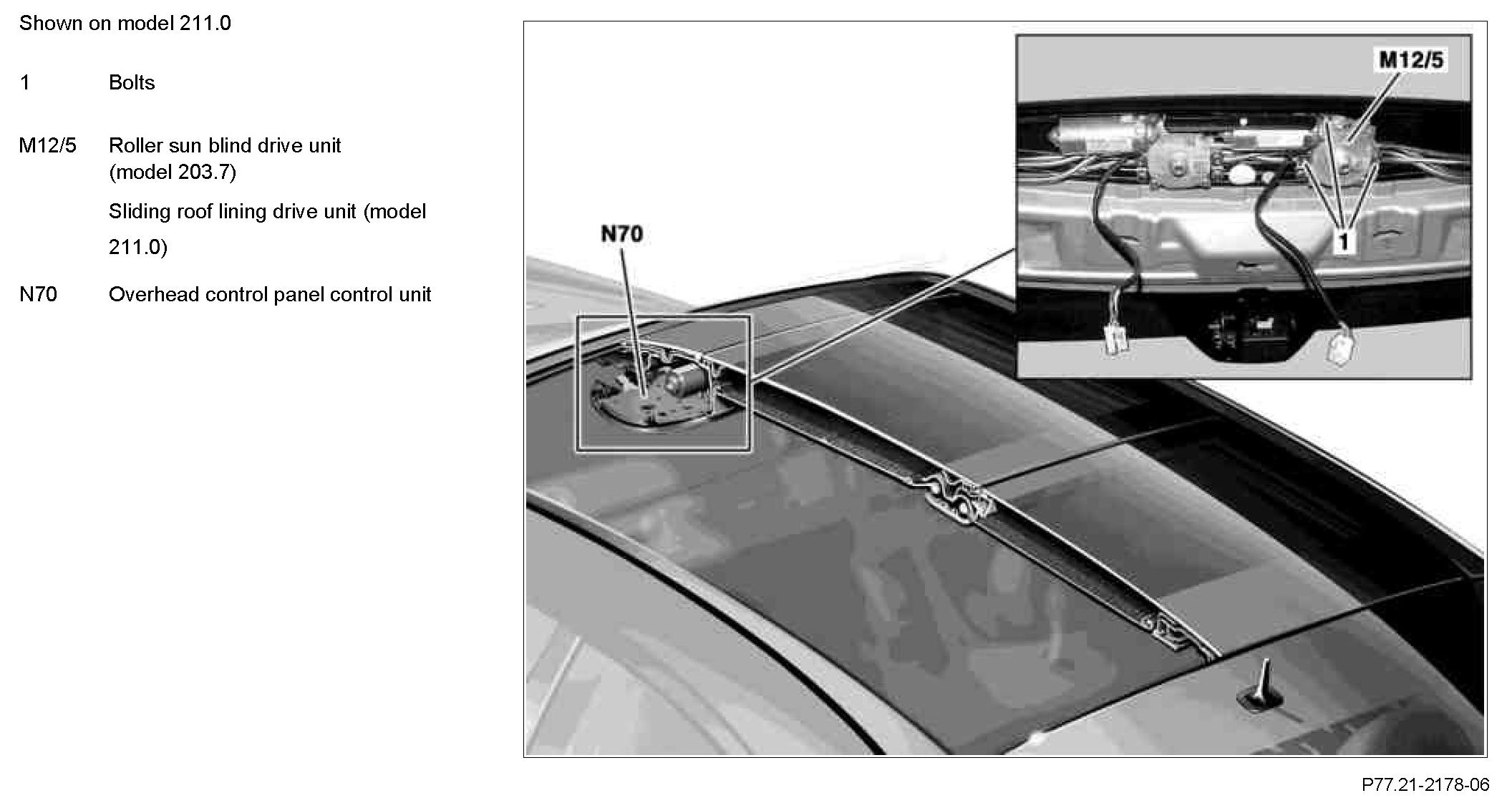

Component Identification:

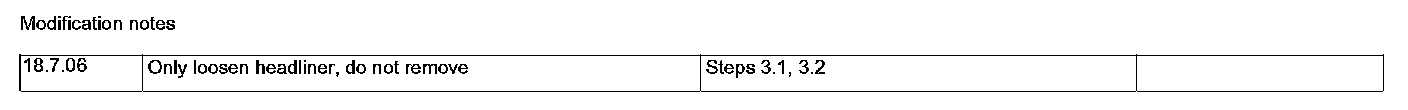

Modification Notes:

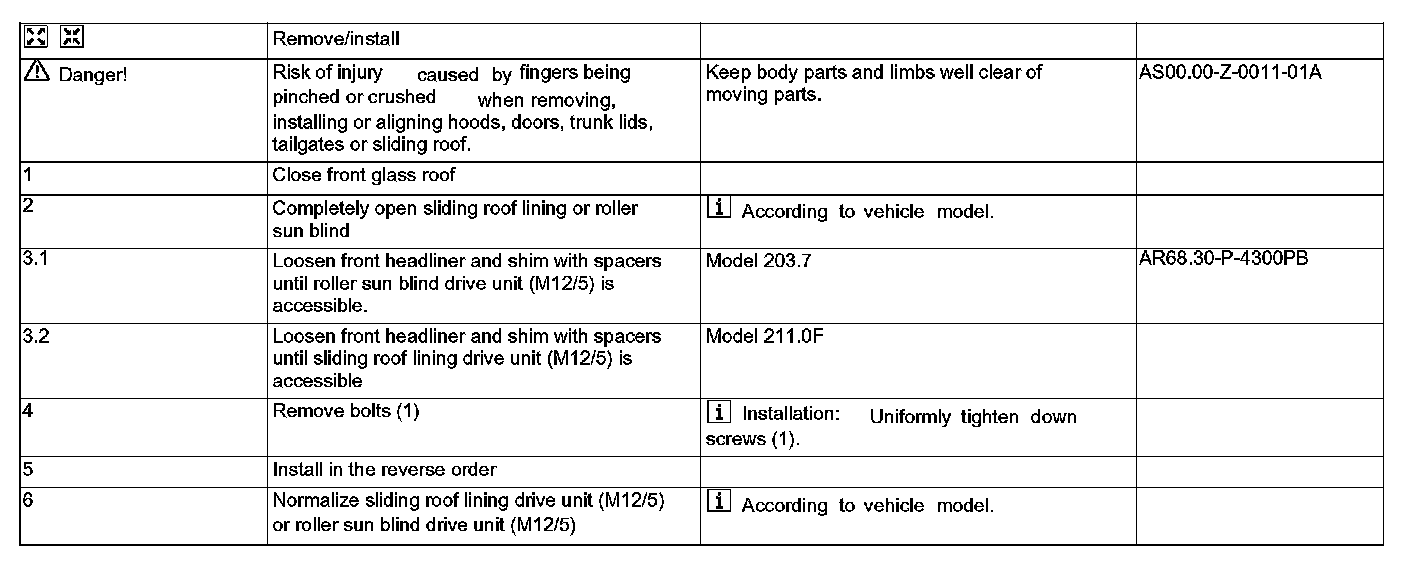

Steps 1 - 6:
