Sunroof / Moonroof Motor: Adjustments

AR77.21-P-0400-01T Adjust Panoramic Roof Drive
- with CODE (413) Panoramic glass roof with top sliding roof
- with CODE (419) Solar module for panoramic roof

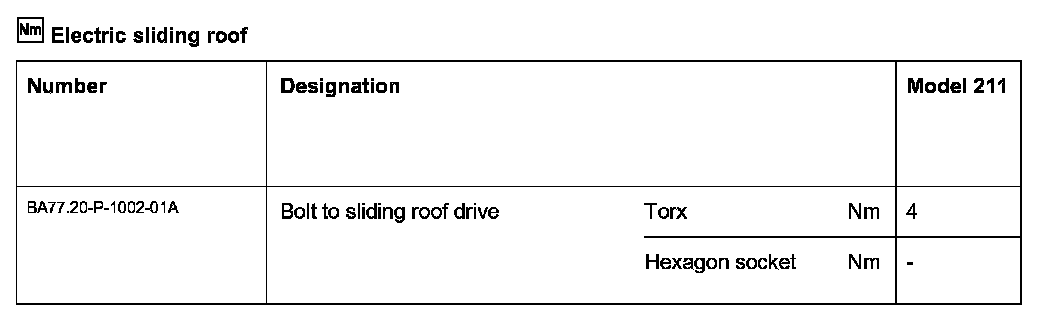

Electric Sliding Roof:

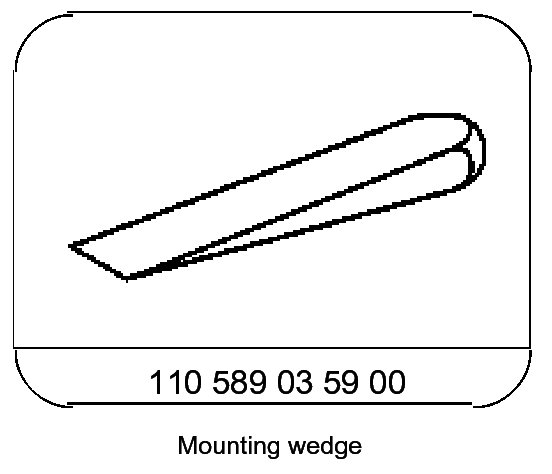

Special Tool:

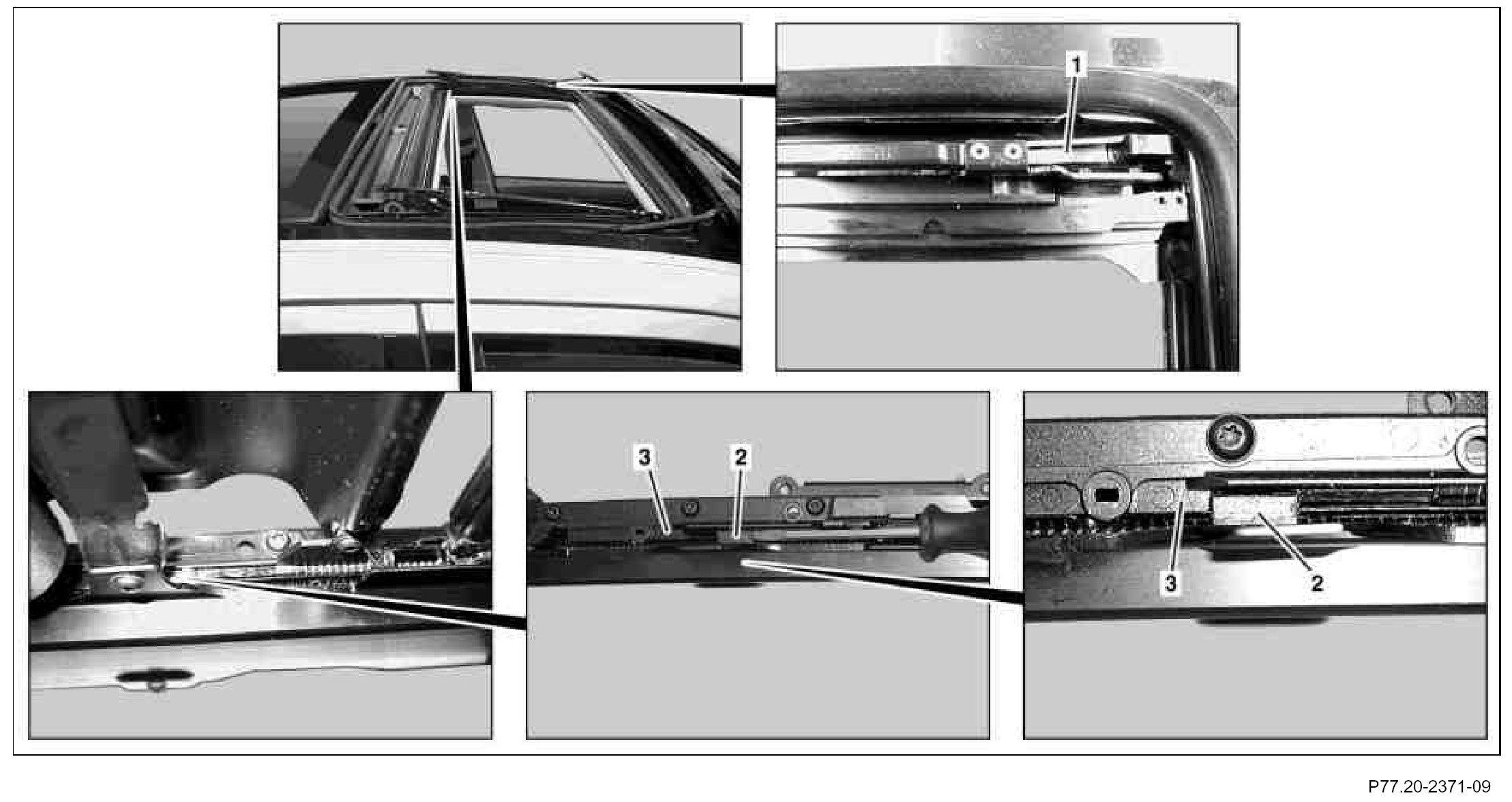

1. Push tilt bracket (1) on panoramic roof drive on left and right side of vehicle forward against stop.*

2. Insert panoramic sliding roof drive unit for fastening cables and tighten bolts.

Tighten bolts uniformly. Pay attention to tightening torque.

3. Push driver (2) for roller sun blind in guide rail on left and right sides of vehicle toward rear against stop (3).*
4. Insert sliding roof lining drive unit for fastening cables and tighten bolts.

Tighten bolts uniformly. Pay attention to tightening torque.
