AR77.21-P-0050T Remove/Install Water Deflector of Panoramic Roof

AR77.21-P-0050T Remove/Install Water Deflector of Panoramic Roof
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

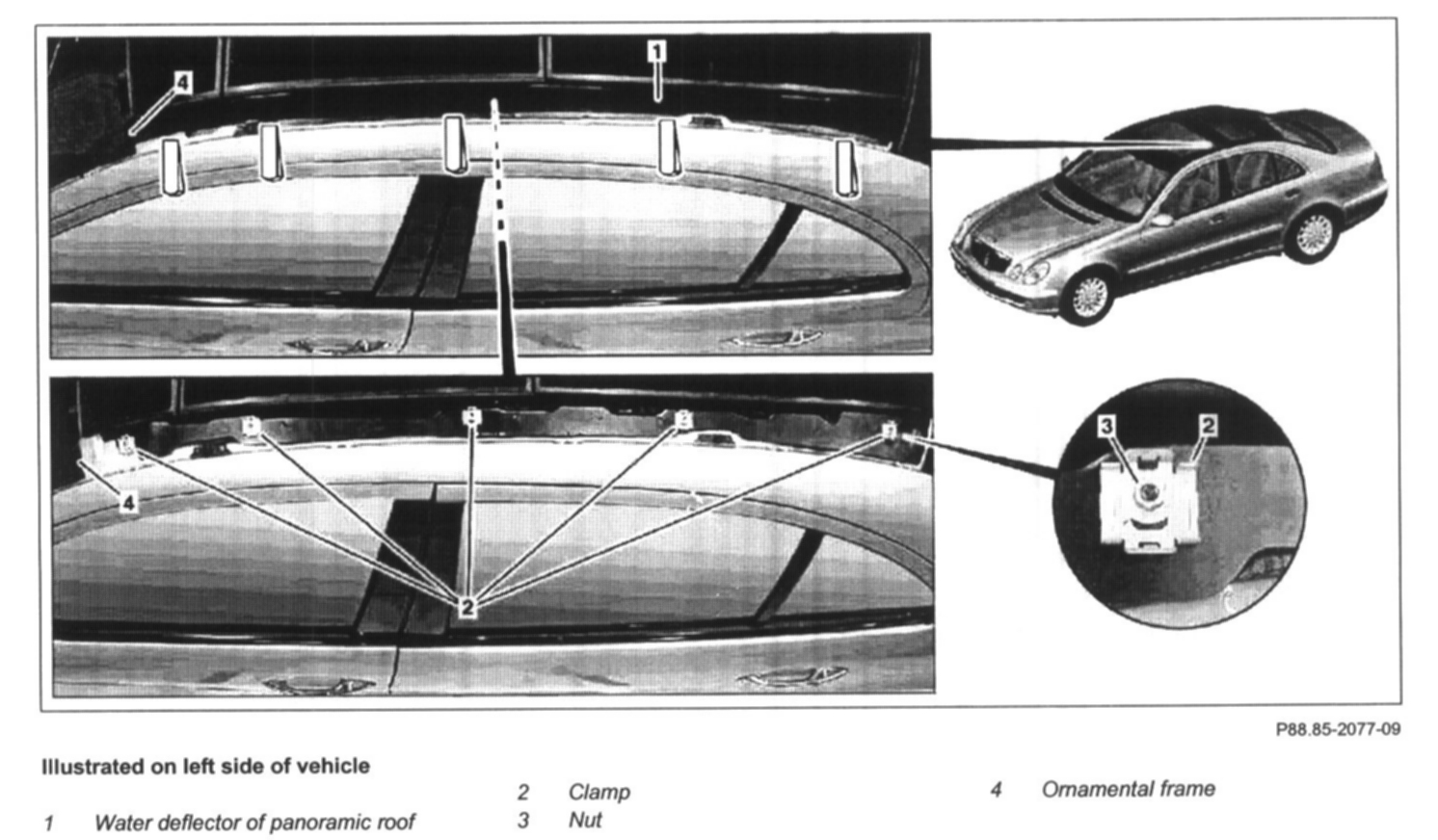

Illustrated On Left Side Of Vehicle:

1 Remove water deflector.
2 Unclip water deflector of panoramic roof (1) with mounting wedge from rear to front directly at the clamps (2) and pull out from below the ornamental frame (4)at the windshield

See "Special Tools" given below.

3 Check clamps (2) for condition

NOTE: Replace clamps (2) if necessary.

4 Insert water deflector of panoramic roof (1) below the ornamental frames (4) at the windshield and place loosely onto the clamps (2)
5 Align water deflector of panoramic roof (1) and latch into the clamps (2)

NOTE: Observe gap to glass roof, remove water deflector of panoramic roof (1) if necessary, slacken the nuts (3) and realign the clamps (2)

6 Remove water deflector

Special Tools

Mounting Wedge, P/N # 110 589 03 59 00:
