AR77.21-P-0230T Remove/Install Drive Cable For Panoramic Roof Sun Shade

AR77.21-P-0230T Remove/Install Drive Cable For Panoramic Roof Sun Shade
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

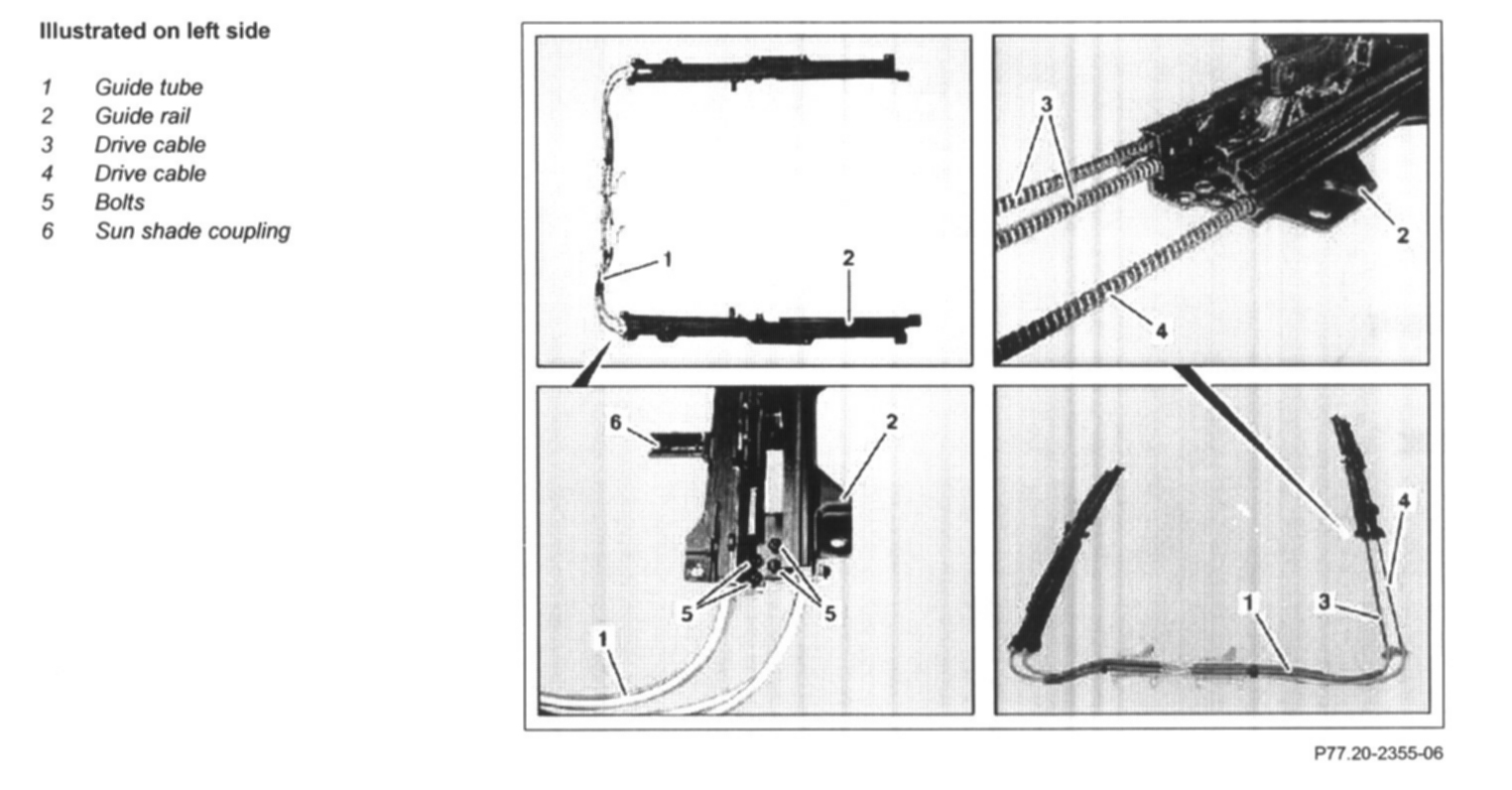

Illustrated On Left Side:

1 Remove panoramic roof drive
2 Unscrew screws (5)
3 Push sun shade coupling (6) out of the guide rail (2) to the front

NOTE: Note correct installation position.

4 Pull guide tube (1) out of the guide rail (2) until the drive cables (3, 4) are accessible

NOTE: Note correct installation position.

5 Pull drive cable (4) out of the guide tube (1) and place guide rail (2) aside

NOTE: Note correct installation position.

6 Pull drive cable (3) out of guide tube (1)

NOTE: Note correct installation position.

7 Install in the reverse order
