Sunroof / Moonroof Cable Housing: Service and Repair

AR77.21-P-0420T Remove/Install Panoramic Roof Drive Guide Tube
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

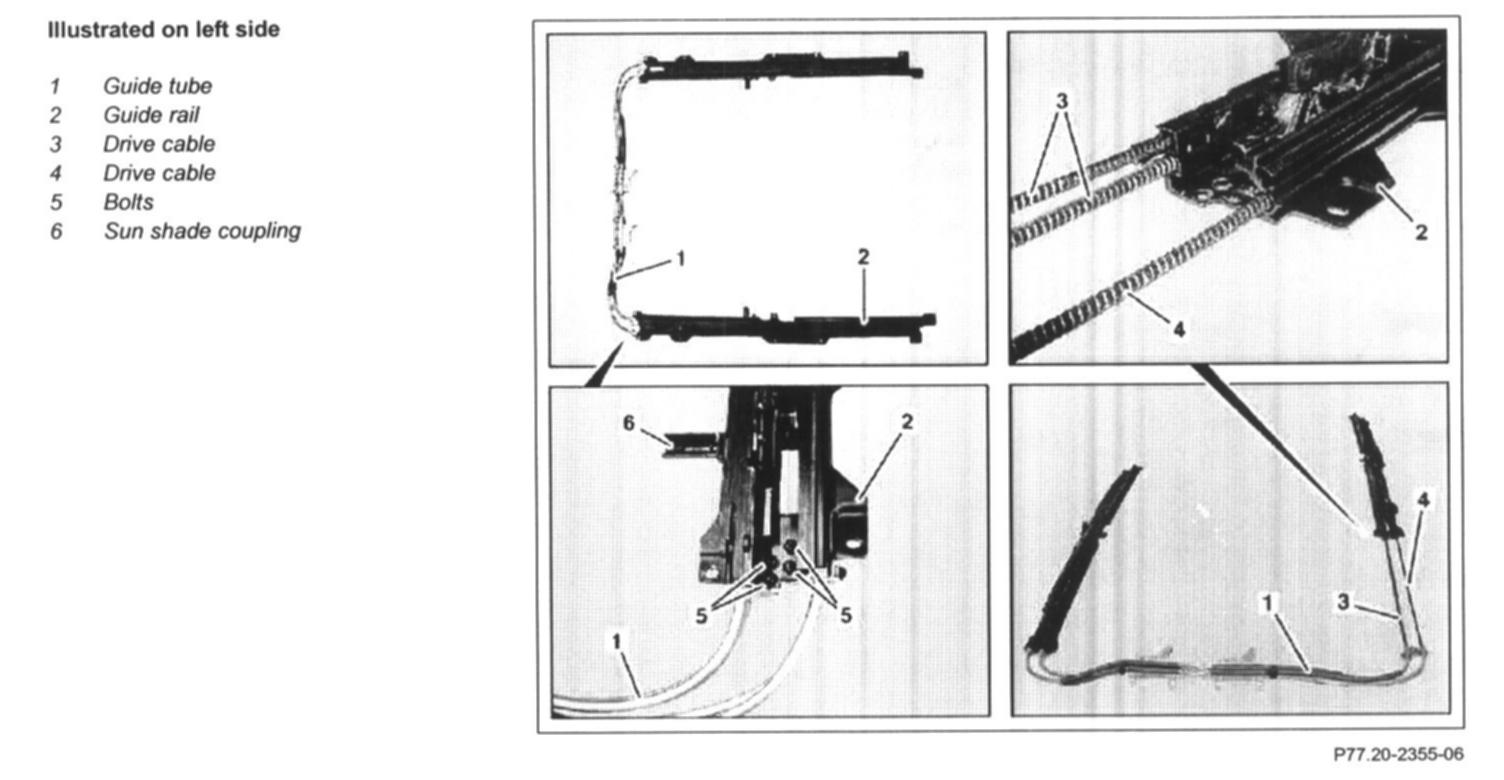

Illustrated On Left Side:

1 Remove panoramic roof drive
2 Slide sun shade coupling (6) out of guide rail (2) toward front on left and right side of vehicle

NOTE: Note correct installation position.

3 Unscrew screws (5) on left and right side of vehicle
4 Pull guide tube (1) out of guide rail (2) on left and right side of vehicle until drive cables (3, 4) are accessible

NOTE: Note correct installation position.

5 Pull drive cable (4) out of guide tube (1) on left and right side of vehicle and lay guide rail (2) down to side

NOTE: Note correct installation position.

6 Pull drive cable (3) out of guide tube (1) on left and right side of vehicle

NOTE: Note correct installation position.

7 Install in the reverse order
