AR77.21-P-0221T Remove/Install Rear Sun Blind Coupling of Panoramic Roof

AR77.21-P-0221T Remove/Install Rear Sun Blind Coupling of Panoramic Roof
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

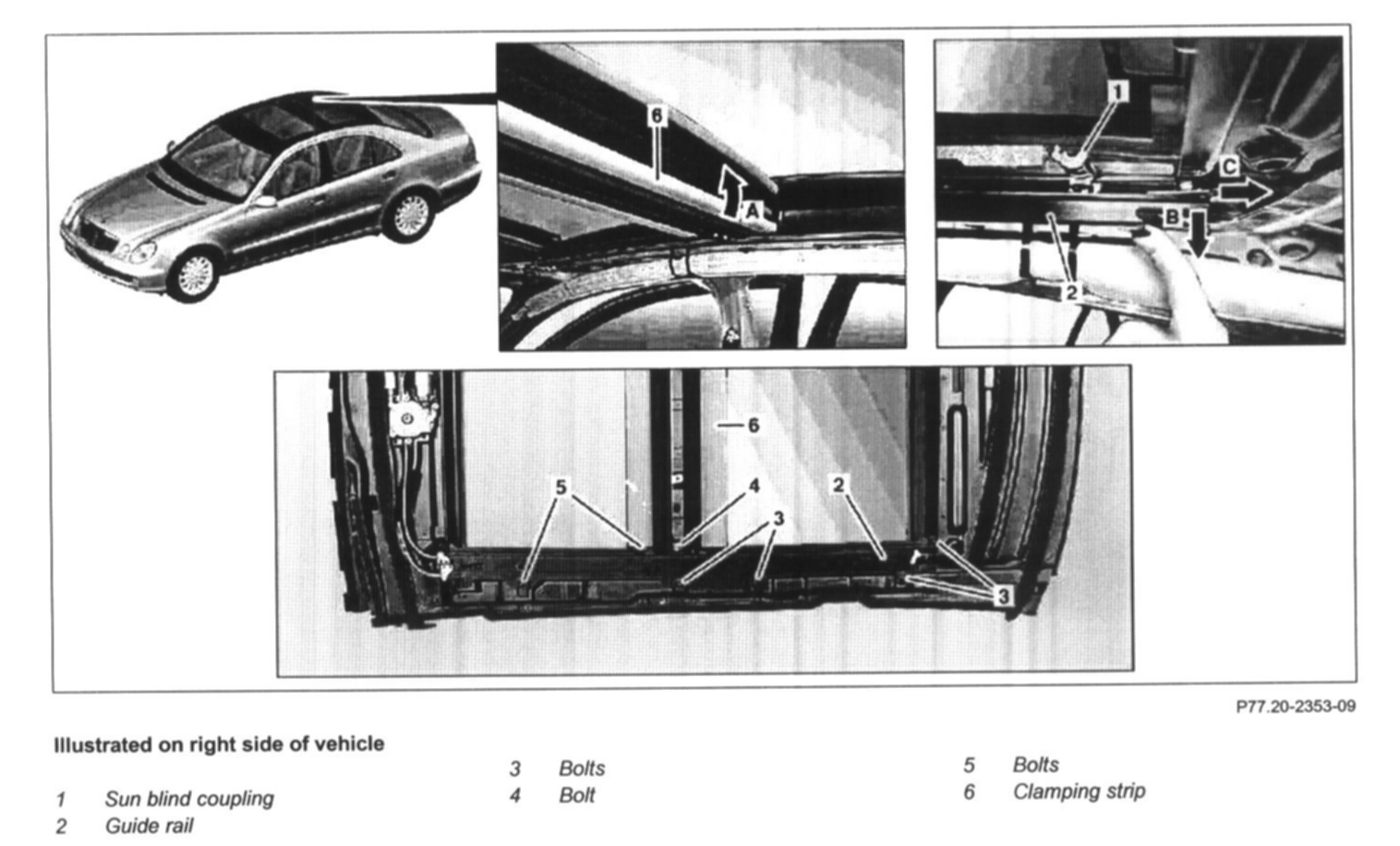

Illustrated On Right Side Of Vehicle:

DANGER:
- Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

1 Move panoramic roof to tilt position
2 Remove roof paneling
3 Unclip clamping strip (6) by rotating in direction of arrow (arrow A) from the sun blind coupling (1) on left and right side of vehicle simultaneously
4 Remove clamping strip (6)
5 Unscrew bolts (3) on left and right side of vehicle
6 Unscrew bolt (4) on left and right side of vehicle

NOTE: Replace bolts (4)

7 Slacken bolts (5) on left and right side of vehicle
8 Pull down guide rail (2) in direction of arrow (arrow B)
9 Push sun blind coupling (1) toward rear (arrow C) out of the guide rail (2)

NOTE: Note correct installation position.

10 Install in the reverse order
