AR77.21-P-0220T Remove/Install Front Sun Blind Couplings of Panoramic Roof

AR77.21-P-0220T Remove/Install Front Sun Blind Couplings of Panoramic Roof
- with CODE (413) Panoramic sliding roof
- with CODE (419) Solar module for panoramic roof

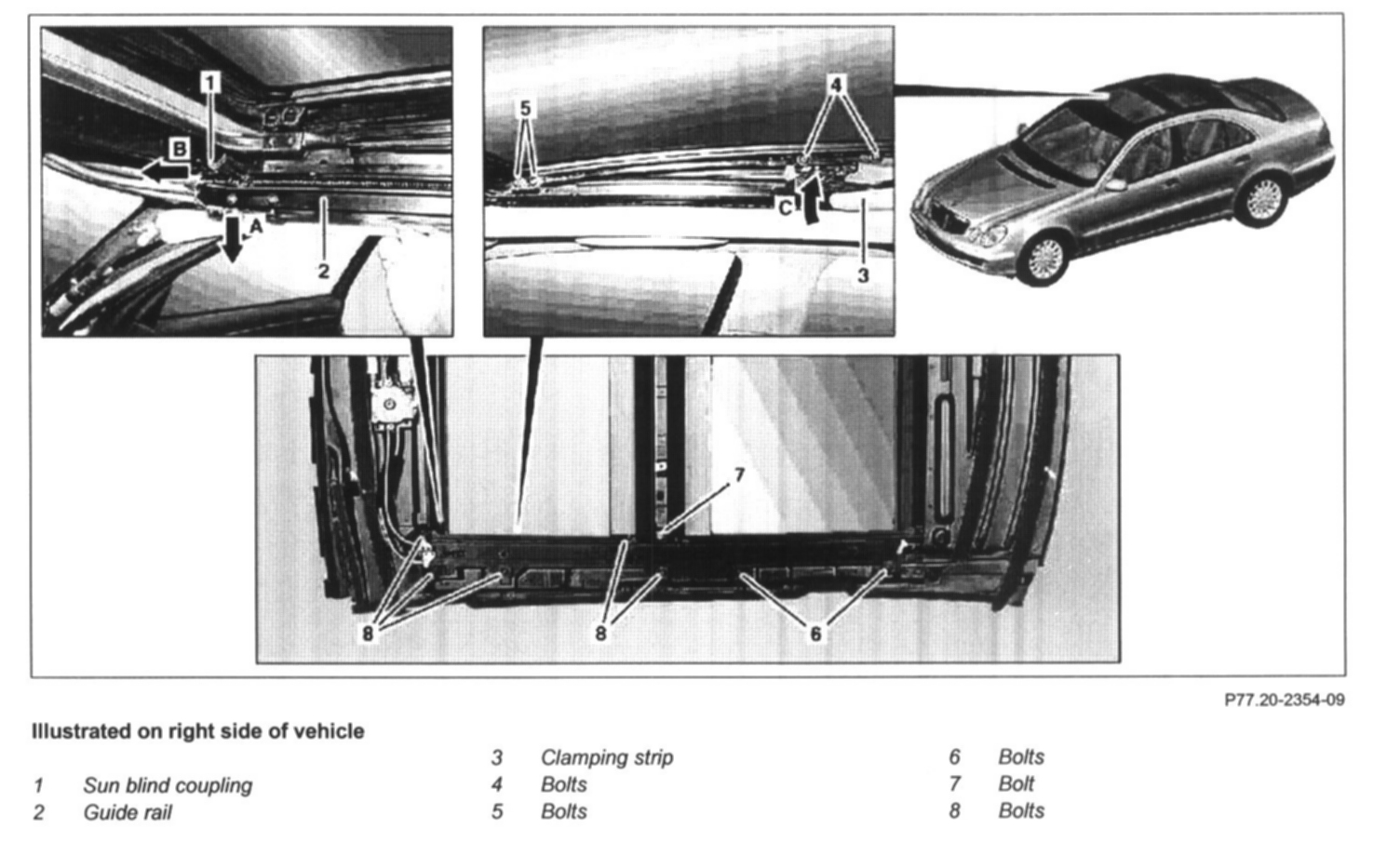

Illustrated On Right Side Of Vehicle:

DANGER:
- Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

1 Remove rubber bellows of front panoramic glass roof
2 Mark installation position of bolts (4, 5) in relation to front glass roof
3 Unscrew bolts (4) and (5)
- Bolt of front glass roof to bracket: 5 N.m

NOTE: Installation: Align front glass roof again in relation to the markings of the bolts (4, 5). Replace bolts (4, 5).

4 Remove roof paneling
5 Unclip clamping strip (3) by rotating in direction of arrow (arrow C) from the sun blind coupling (1) on left and right side of vehicle simultaneously
6 Remove clamping strip (3)
7 Remove bolts (8)
8 Remove bolts (7)

NOTE: Installation: Replace bolts (7).

9 Loosen screws (6)
10 Pull down guide rail (2) in direction of arrow (arrow A)
11 Push sun blind coupling (1) toward front (arrow B) out of the guide rail (2)

NOTE: Observe installation position of the sun blind coupling

12 Install in the reverse order
