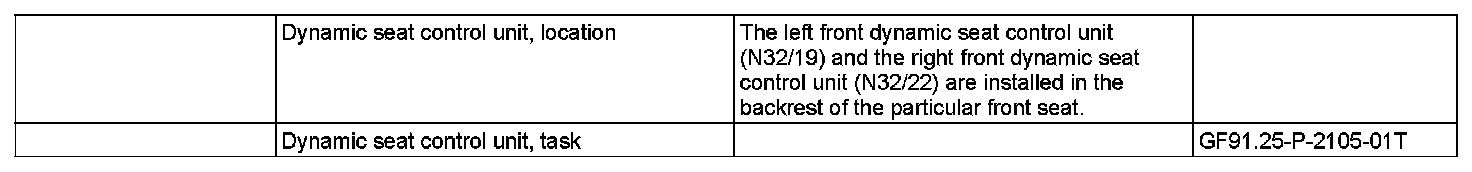

GF91.25-P-2105T Dynamic Seat Control Unit Location/Task



GF91.25-P-2105T Dynamic Seat Control Unit Location/Task
- with CODE (433) Left dynamic seat including multicontour seat
- with CODE (434) Right dynamic seat including multicontour seat

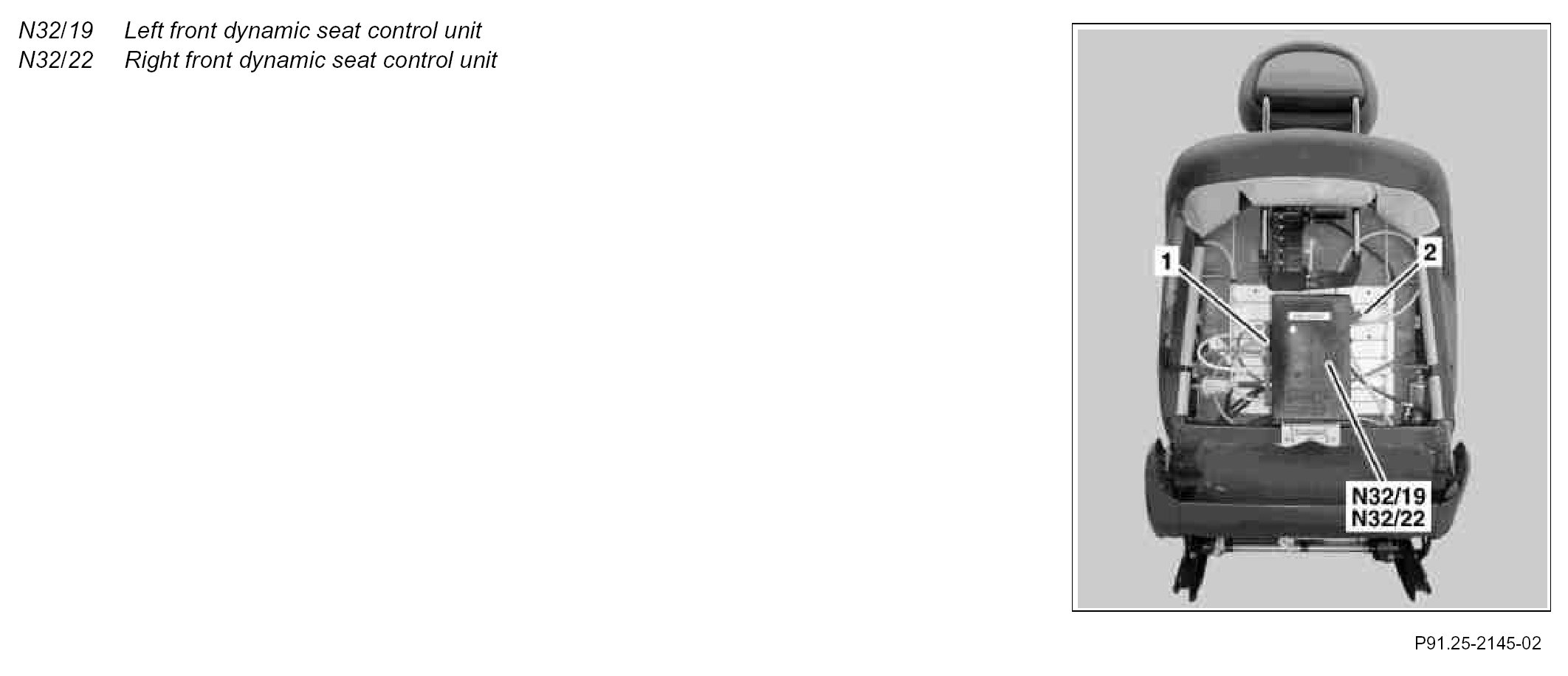

Component Identification:
