Radiator Support: Service and Repair
AR62.30-P-2300T Remove/Install Front End Crossmember

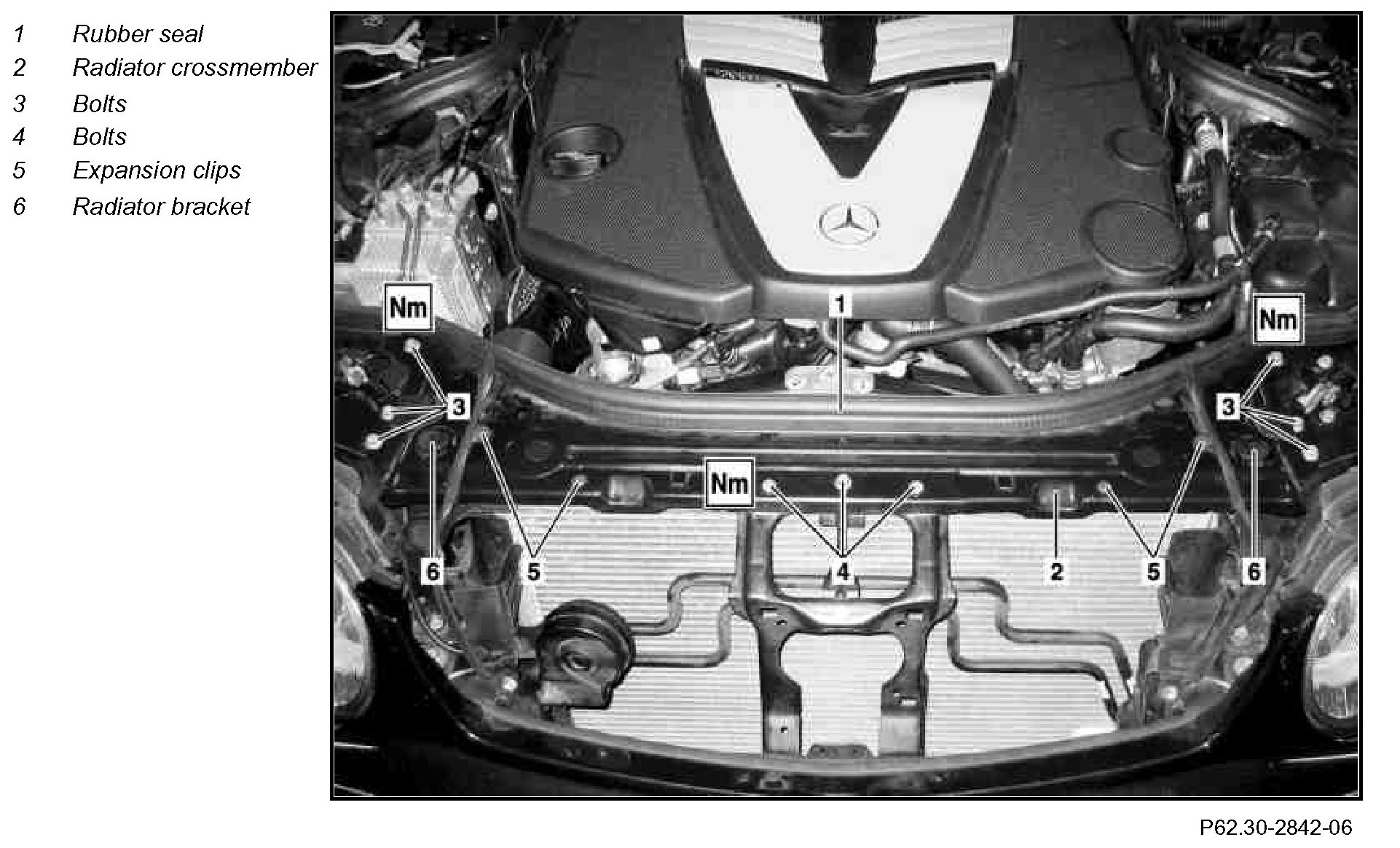

Component Identification:

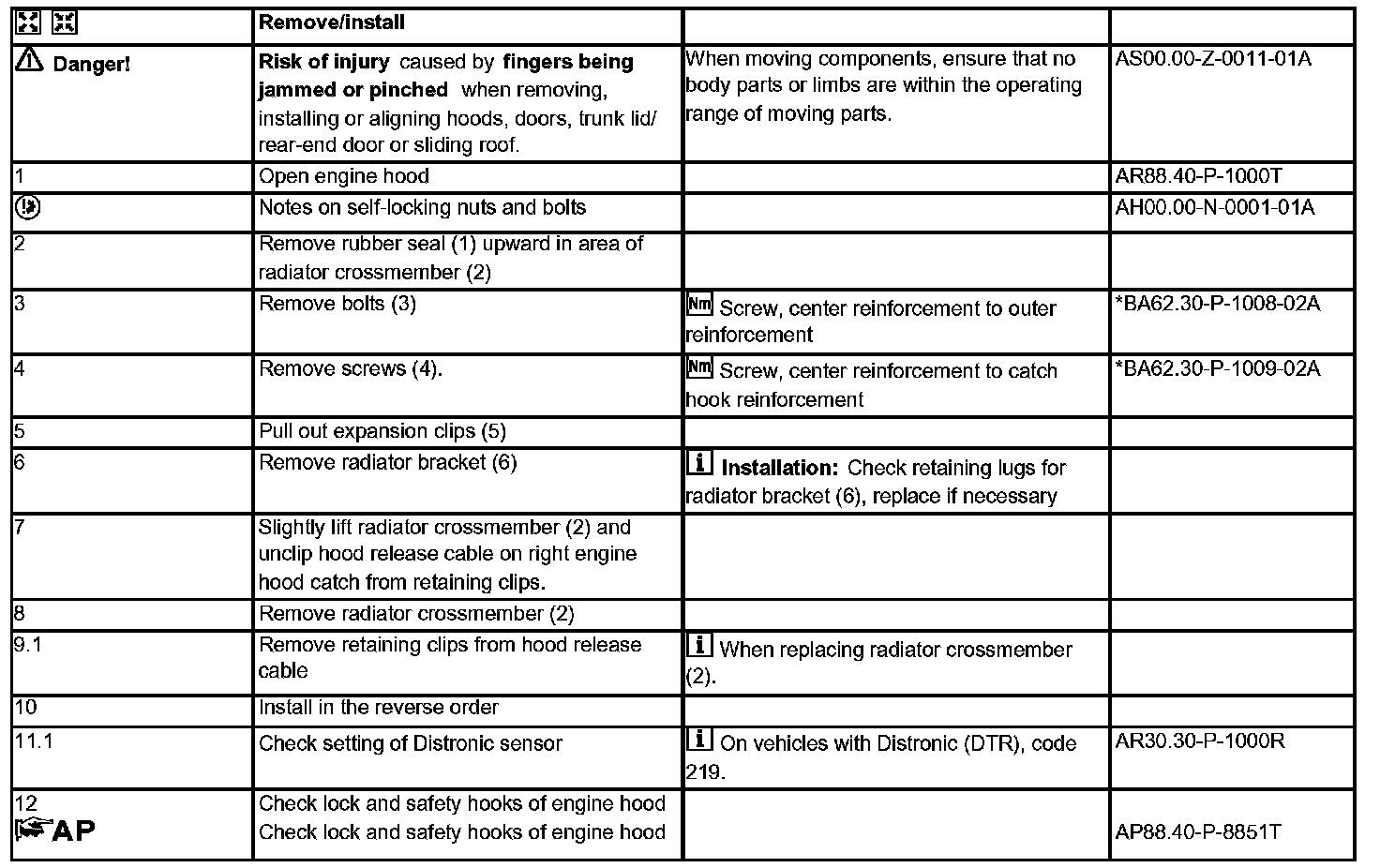

Steps 1 - 12:

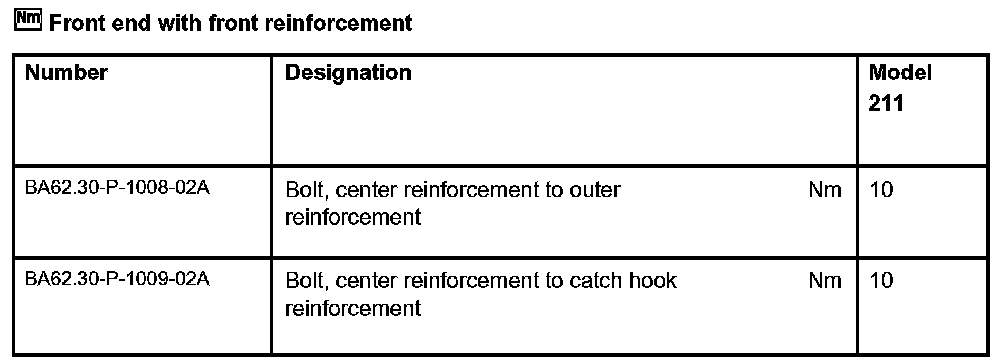

Front End With Front Reinforcement:
