Mirrors - Exterior Mirror Glass Is Cracked

Date: May 11, 2009

Order No.: P-B-88.70/78b

Supersedes: P-B-88.70/78a dated Nov. 20, 2008

Group: 88

Revision History

Revision Date Purpose

b 5/11/09 Part Number Correction

a 11/20/08 Applicable Models and Information Updated to Include 204

- 01/07/06 Initial issue

SUBJECT:
All Model 204 Vehicles, up to VIN A246848 and R053585
All Model 211 Vehicles, as of VIN of A904125 (except Modification Year 806), Up to B364049 and as of X195965 (except Modification Year 806)
Equipped with Code 249 (Auto Dimming Mirrors)

Outside Mirror Cracked

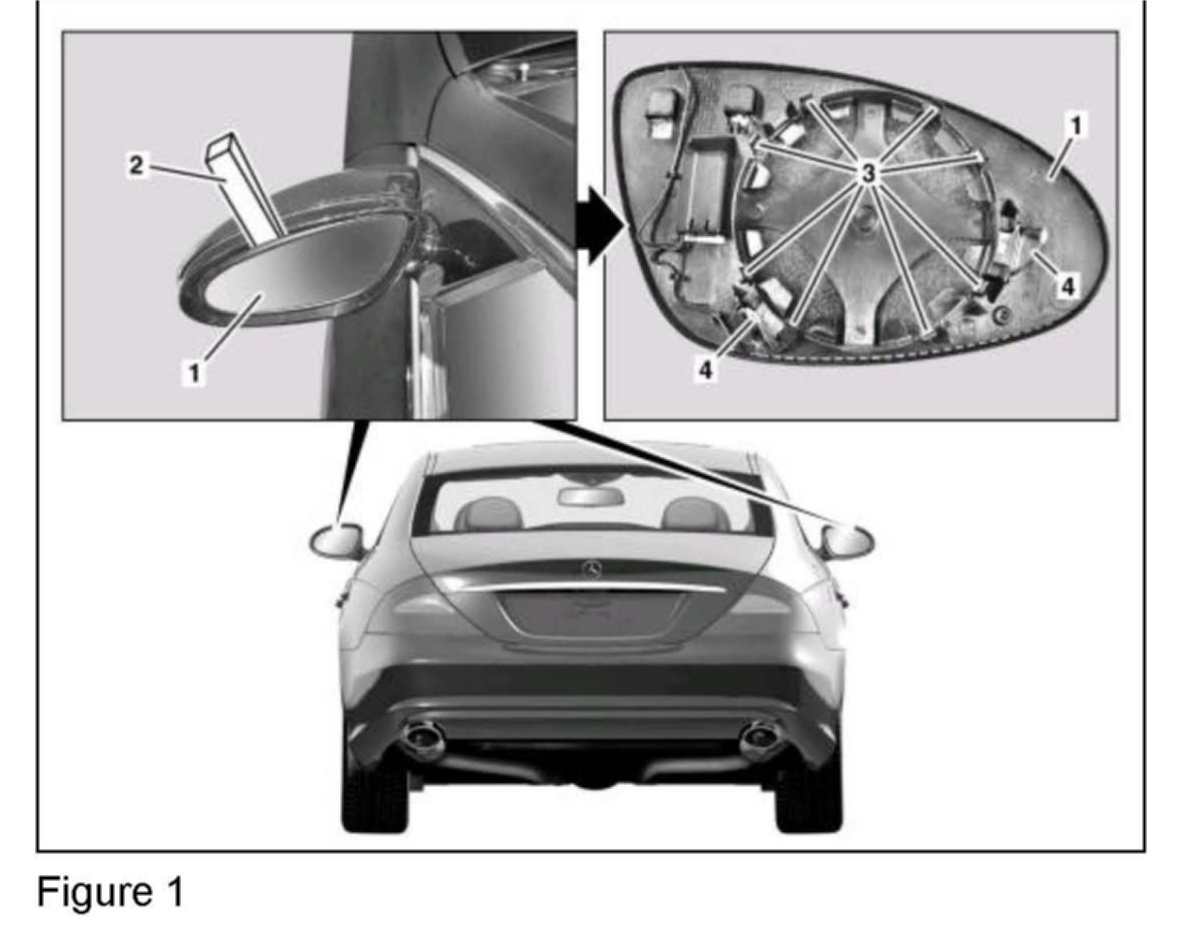

If you receive customer reports in the above model vehicles of a cracked mirror glass, this may be caused by actuation of the mirror glass heater at cold outside temperatures. To remedy, install a new mirror glass, as outlined in WIS document AR88.70-P-9020CW (204) or AR88.70-P-9020TX (211).

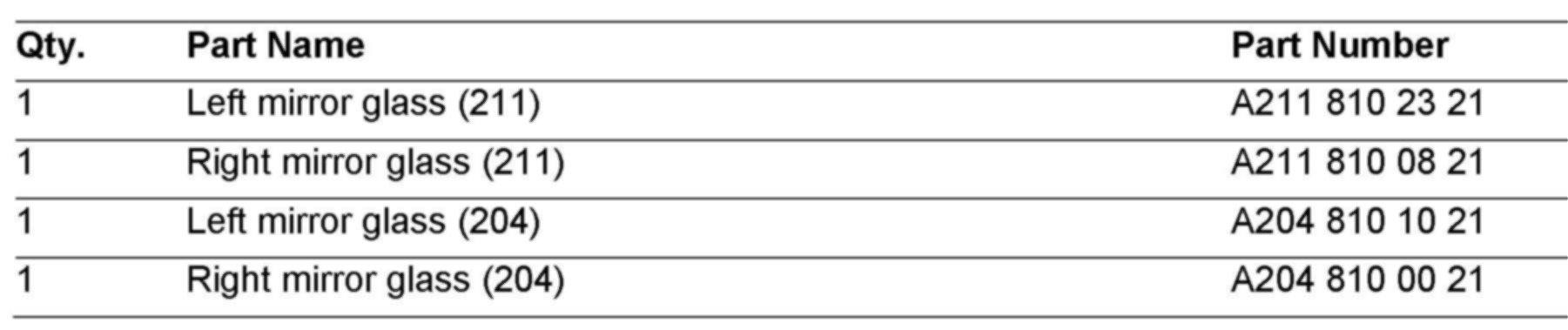

Parts Information

NOTE:

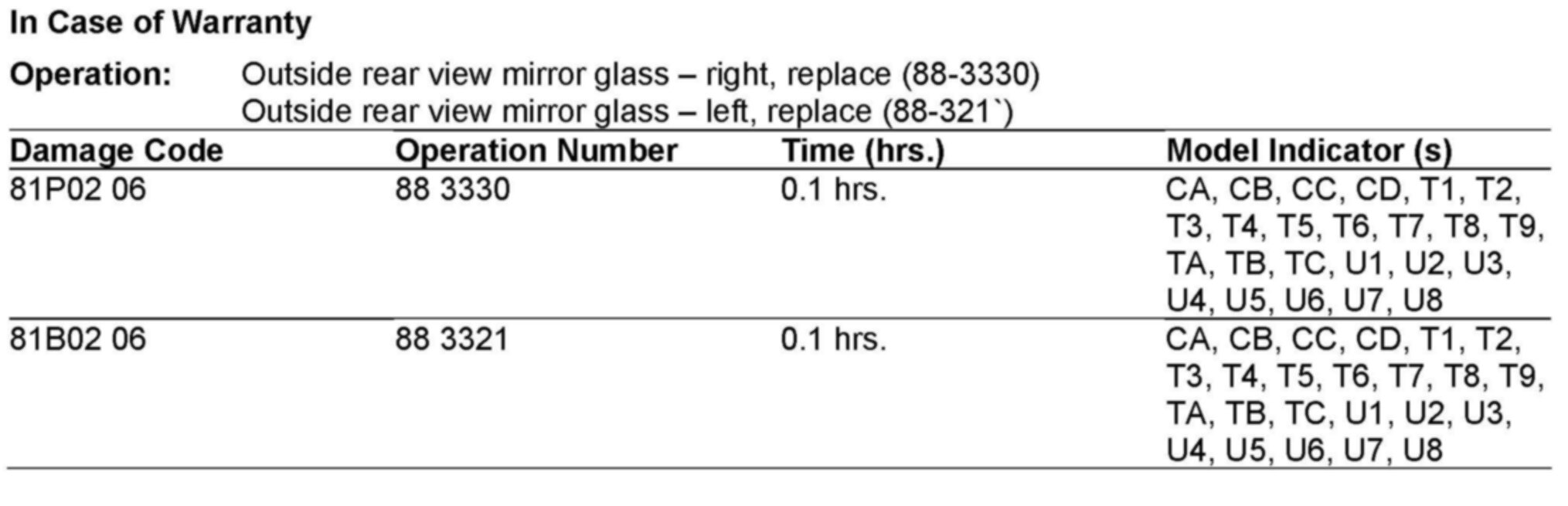

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on November 20, 2008. Please refer to Netstar --> Star tekInfo --> Star Time for the most current labor time allowance.





In case of warranty, use the table above.
