AR88.70-P-9020TX Remove/Install Mirror Lens
AR88.70-P-9020TX Remove/Install Mirror Lens
AR88.70-P-9020TX Remove/install Mirror Lens

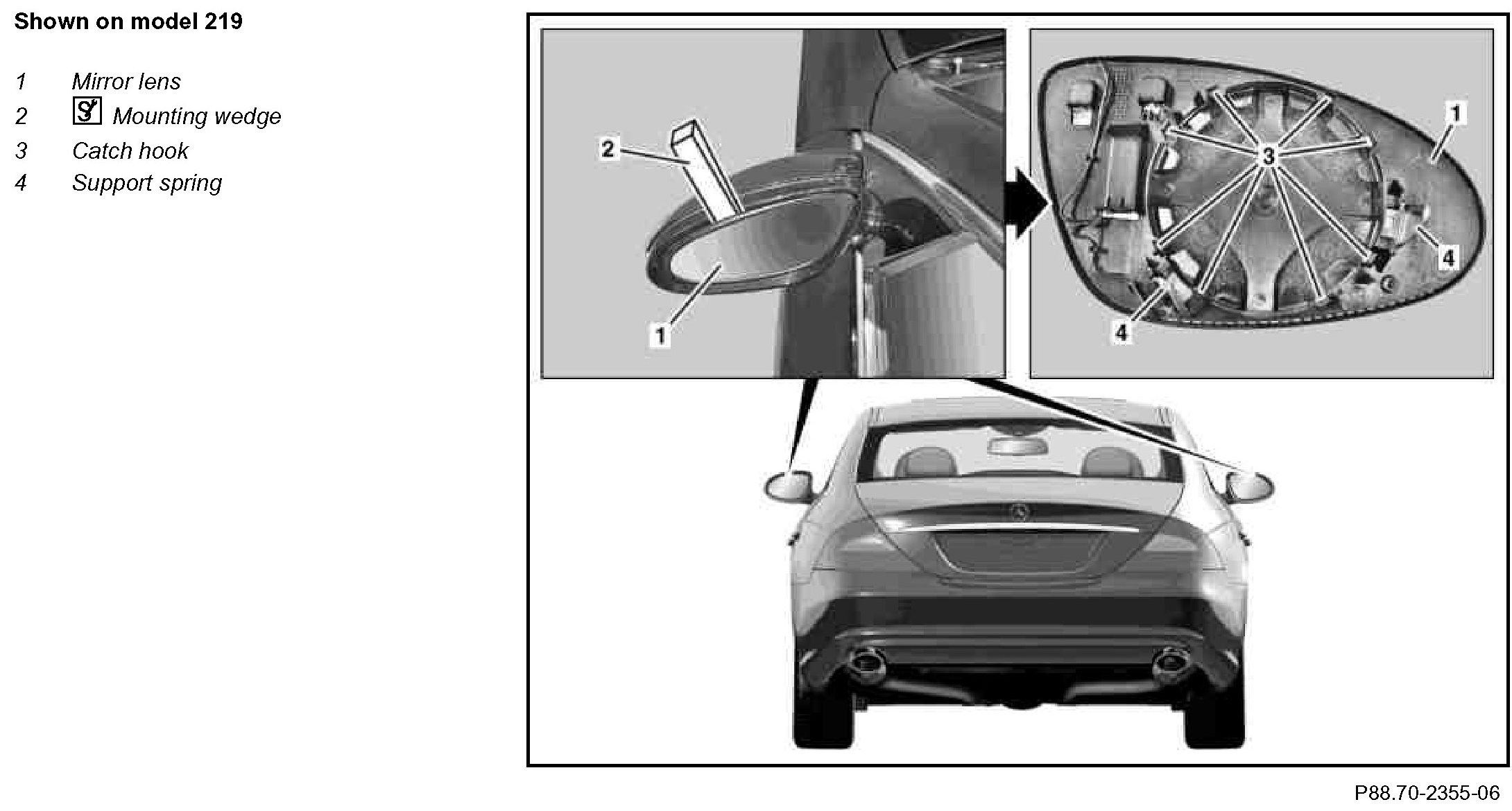

Component Identification:

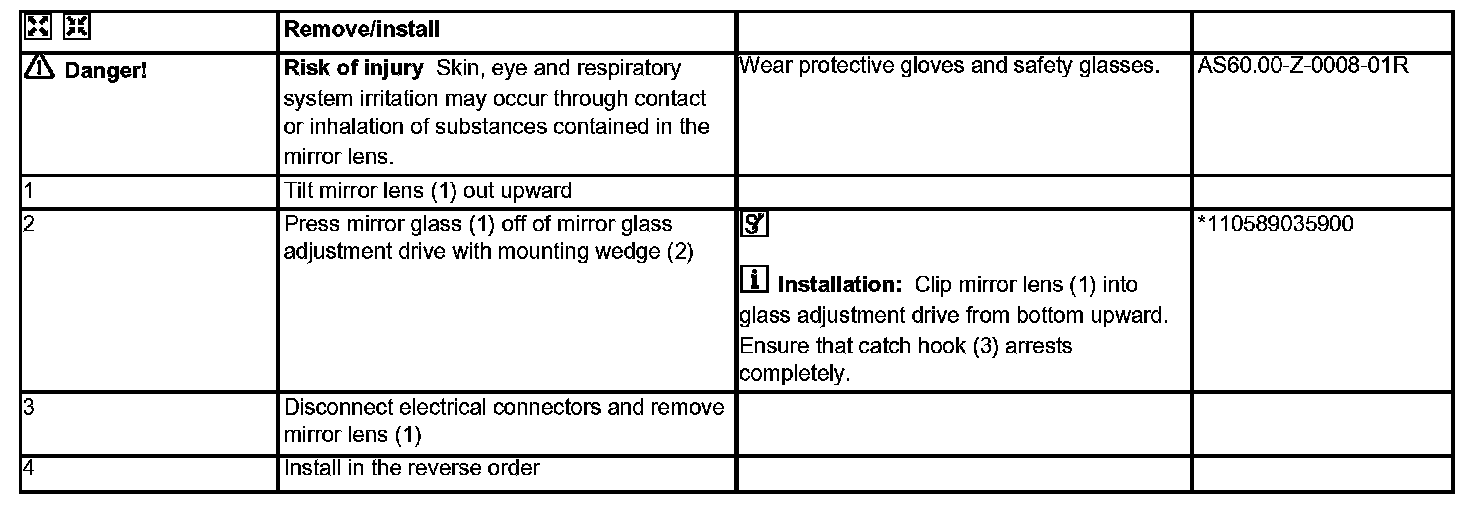

Steps 1-4:

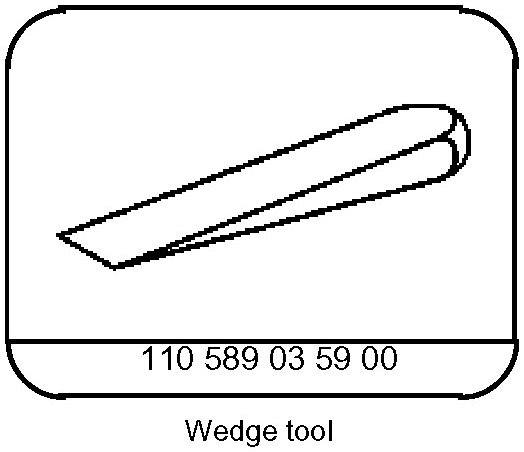

Special Tool:
