E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Description and Operation
>>

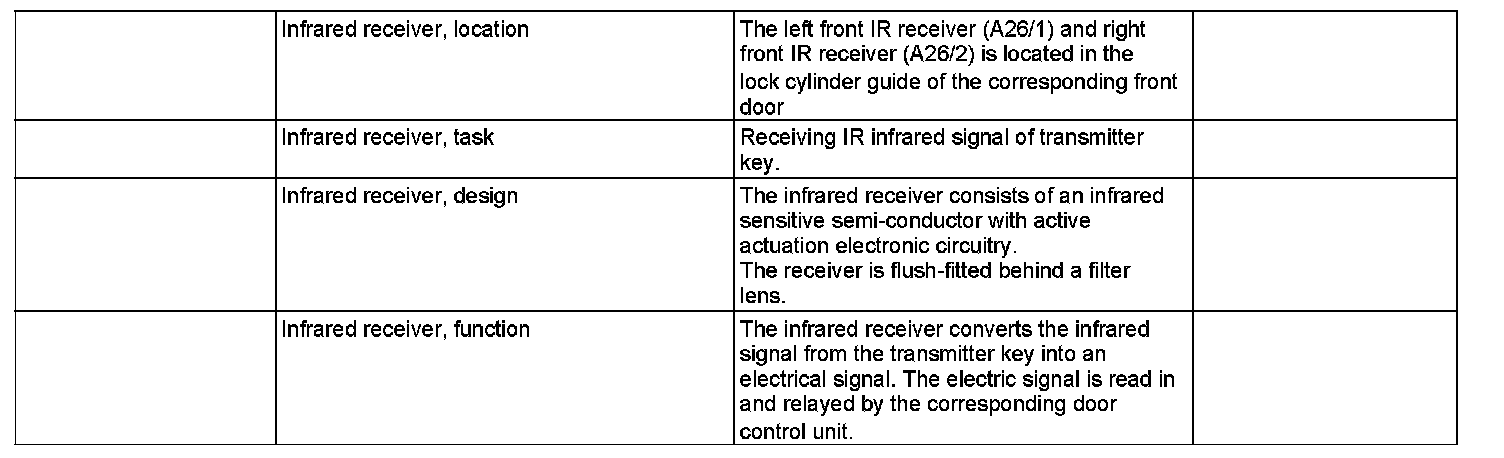

GF80.20-P-4101T Infrared Receiver, Location/Task/Design/Function
GF80.20-P-4101T Infrared Receiver, Location/Task/Design/Function
GF80.20-P-4101T Infrared Receiver, Location/Task/Design/Function

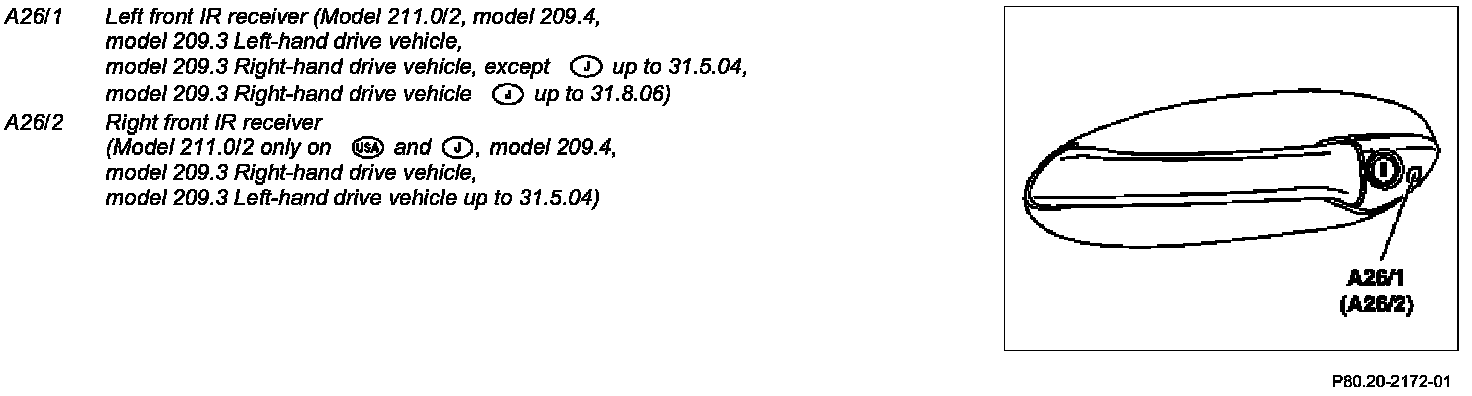

Component Identification:
